WV128 Thermocouple Limit Alarm by Action Instruments NEW FREE SHIPPING!!!, US $99.00 – Picture 0
WV128 Thermocouple Limit Alarm by Action Instruments NEW FREE SHIPPING!!!, US $99.00 – Picture 1
WV128 Thermocouple Limit Alarm by Action Instruments NEW FREE SHIPPING!!!, US $99.00 – Picture 0
WV128 Thermocouple Limit Alarm by Action Instruments NEW FREE SHIPPING!!!, US $99.00 – Picture 1

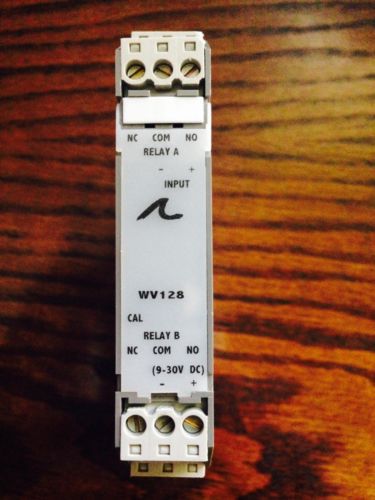

Wv128 Thermocouple Limit Alarm By Action Instruments New Free Shipping!!!

US $99.00

  • Westchester, Illinois, United States
  • Feb 14th
Open on mobile:
QR code
TECHNICAL SPECIFICATION (WV128) Ranges: T/C °C °F B +75 to 1820 +167 to 3308 E -265 to 1000 -445 to 1832 J -210 to 760 -346 to 1400 K -265 to 1372 -445 to 2502 R -25 to 1760 -13 to 3200 S -25 to 1760 -13 to 3200 T -265 to 390 -445 to 734   Inputs  Thermocouples Supported:   B, E, J, K, R, S, T Overvoltage: ±10V differential Common Mode: 1800VDC (Input to Ground) Limit Differential (deadband) 0.2% to 100% of span. Set by Pushbutton Adjustment.   Response Time  Dynamic Deadband: Relay status will change when proper setpoint/process condition exists for 100mSec. Normal Mode: <250mSec (analog filtering) Setpoint  Effectivity: Setpoints are adjustable (by pushbutton) over 100% of the selected input span. Repeatability: ±0.05% of FS, ±1°C (constant temp)   Relay Contacts      2 SPDT (2 form C) Relays 1 relay per setpoint   Current rating (general use) 120VAC: 5A 240VAC: 2A 28VDC: 5A Material: Gold flash over silver alloy Electrical Life: 10^5 operations   Reset Switch    For unlatching the relay once the process is no longer in the alarm state. (WV128-2001 only)   Local Range Selection    By DIP switch   Stability      ±100ppm of FS/°C   CMRR      120dB @ DC, >90dB @ 60Hz, or better Isolation      1800VDC or peak AC between contacts, input & power.   ESD Susceptibility    Capable of meeting IEC 801-2 level 3 (8kV)   Humidity  Operating: 15 to 95% RH non-condensing @45°C Soak: 90% RH non-condensing for 24hrs @60°C   Temperature  Operating: 0 to 60°C Storage: -25 to +85°C   Power      9 to 30VDC 1.2W typ., (3.25W max both relays energized)   Host Module Interface    IR link   Wire Terminations    Screw terminations for 12-22 AWG   Default Configuration       Size      DIN rail case – refer to Dimensions drawing   Environmental  Operating Temperature: 0°C to +60°C (32 to 140°F) Storage Temperature: -25°C to +85°C (-13 to 185°F) Operating Relative Humidity (non-condensing): 15% to 95% at 45°C Non-operating Relative Humidity (non-condensing): 90% at 60°C for 24 hours   Agency Approvals    CE, EN61326, EN61010-1 (EMC & Safety)      UL and CSA Combined mark Please buy with confidence. Satisfaction guaranteed!!! If not fully satisfied, for any reason, just ship back the item and full refund will be issued immediately. Thanks For Looking!
