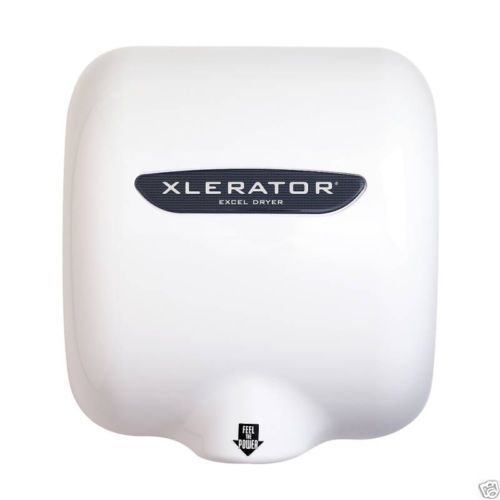

Xlerator Xl-w

US $439.99

Bangor, Maine, United States
Jan 29th

Open on mobile:
QR code

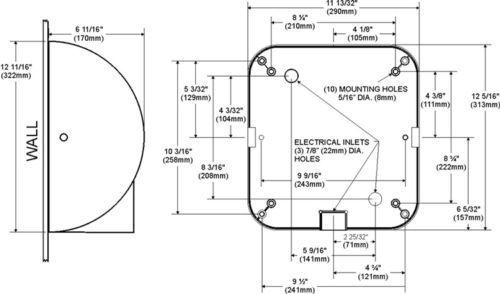

FEATURES 10-15 Second Dry Time* 80% Less Energy Than Conventional Hand Dryers. Uses only 12.5 amps. 95% Cost Savings Vs. Paper Towels Virtually Maintenance Free 5-Year Limited Warranty GREENSPEC® Listed and Helps Qualify for several LEED® credits A Hygienic Hand Drying Solution Over a Decade of Proven Performance SPECIFICATIONS Dimensions: Width 11 3/4" (298 mm) Height 12 11/16" (322 mm) Depth 6 11/16" (170 mm) Weight: XL-BW: 15 lbs. (6.8 kgs.) XL-SB: 16 lbs. (7.26 kgs.) XL-W, GR, C, SI, SP: 17 lbs. (7.71 kgs.) CONSTRUCTION All covers will be fastened to a base plate by two chrome plated tamper-proof bolts. Cover shall be one of the following: Die-cast zinc alloy - One-piece, heavy-duty, rib-reinforced, lightweight, unbreakable, rustproof and all exposed surfaces shall be bright chrome plated or finished with chip-proof, electrostatically applied epoxy paint. Bulk Molding Compound (BMC) – White reinforced thermoset resin. Stainless Steel – with a brushed finish. Special Image – Digital image applied to die-cast or stainless steel covers using patented Kolorfusion Sublimation Decoration process. Base plate shall be equipped with (3) 7/8" (22 mm) diameter holes, the bottom one is suitable for use with surface conduit. All internal parts shall be coated according to Underwriters' Laboratories, Inc. requirements. Entire mechanism shall be internally grounded. MECHANISM Motor shall be a thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm) which provides air velocity of up to 19,000 LFM (linear feet per minute) at the air outlet and 16,000 LFM at the hands (4 inches [102 mm] below air outlet). Heating element (970 w) is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal proof. It shall be protected by an automatic resetting thermostat, which shall open whenever air flow is cut off and shall close when flow of air is resumed. It shall produce an air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet). Control assembly is activated by an infrared optical sensor located next to the air outlet. The dryer shall operate as long as hands are under the air outlet. There is a 35-second lockout feature if hands are not removed. LIMITED WARRANTY The dryer shall be guaranteed to be free from defects for a period of five (5) years. Warranty shall include labor performed at factory as well as the repair or exchange of defective parts, at manufacturer's option.
