Xp Power Ecl10us05-t Ac-dc Converter Power Supply Open Frame 1 O/p 10w 2a, 5v

US $22.88

Country, Canada
Mar 9th

Open on mobile:
QR code

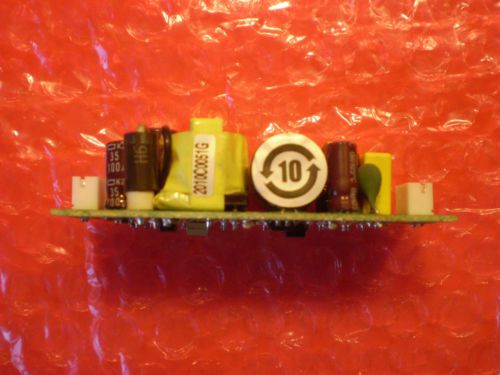

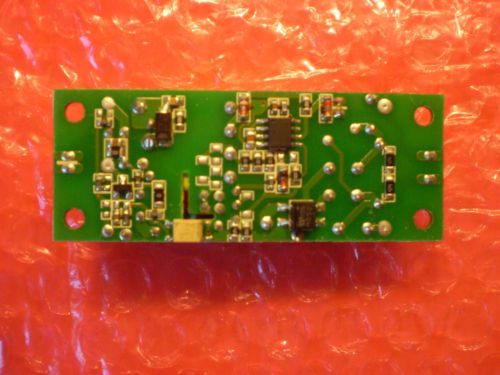

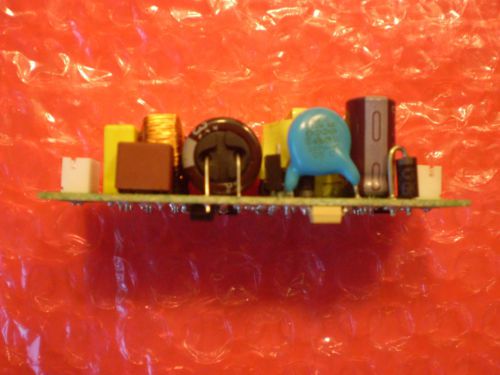

XP Power ECL10US05-T AC-DC Converter Power Supply Open Frame 1 O/P 10W 2A, 5V Brand-New. Factory Sealed. Photos are of the actual items you are purchasing Specification • Ultra Compact Size • Single, Dual & Triple Outputs • Open Frame PCB & Chassis Mount • Encapsulated PCB & Chassis Mount • <0.3 W No Load Input Power • Peak Load Capability • 3 Year Warranty ECL Series Input Input Voltage • 85-264 VAC (120-370 VDC) Input Frequency • 47-63 Hz Input Current • ECL05: 0.1 A rms, ECL10: 0.2 A rms ECL15: 0.3 A rms, ECL25: 0.4 A rms ECL30: 0.8 A rms at 230 VAC Inrush Current • 20 A at 115 VAC, 40 A at 230 VAC, cold start at 25 °C Earth Leakage Current • Class II construction no earth Power Factor • EN61000-3-2, class A No Load Input Power • <0.3 W Input Protection • ECL05/10: Internal T1 A/250 VAC fuse ECL15/25/30: Internal T2 A/250 VAC fuse Output Output Voltage • See tables Output Voltage Trim • ±5% on output 1 only, on multiple output versions, V2 & V3 will track by same percentage, (not ‘-E’ or ‘-S’ versions) Initial Set Accuracy • ±1% for output 1, ±1% for output 2 of UD01 & UD02 versions, ±5%for output 2 & output 3 of other versions Minimum Load • Single output versions: none, Multi output versions: UD01 & UD02: 10% V1 & V2 UD03: 10% V1, 20% V2 UT02 & UT03: 10% V1, 20% V2 & V3 to meet regulation specifications Start Up Delay • 3 s max Start Up Rise Time • 14 ms max Hold Up Time • 16 ms typical for single output versions, 12 ms typical for multiple output versions, at full load & 115 VAC Line Regulation • ±0.5% max for single output versions and output 1 of multiple output versions, ±0.9% max for output 2 & output 3 of multiple output versions Load Regulation • 1% max for single output versions, for multiple output versions (see note 5) Cross Regulation • Multi output versions only (see note 5) Transient Response • 4% max deviation, recovery to within 1% in 500 ?s for a 25% load change Ripple & Noise • Single output versions: 3.3-5 V versions: 50 mV pk-pk, 12-15 V versions: 120 mV pk-pk, 24-48 V versions: 200 mV pk-pk, Multiple output versions: 1% pk-pk on any output, 20 MHz bandwidth Overvoltage Protection • 115-140% Vnom, 195-216% Vnom ECL05/10/15/25 with 3.3 V Overload Protection • Single output versions: ECL05/10/15: 120-150%, ECL25: 120-170% of total power Multiple output versions: 140-200% of total power Short Circuit Protection • Trip and restart (hiccup mode) Temperature • 0.05%/°C Coefficient General Isolation • 3000 VAC Input to Output Switching Frequency • 70 kHz typical Power Density • ECL05: 2.25 W/In3 (PCB Mount version) ECL10: 5.50 W/In3 (PCB Mount version) ECL15: 5.30 W/In3 (PCB Mount version) ECL25: 5.90 W/In3 (PCB Mount version) ECL30: 7.10 W/In3 (PCB Mount version) MTBF • ECL05/10: >450 kHrs, ECL15/25/30: >400 kHrs, to MIL-HDBK-217F at 25 °C, GB Environmental Operating Temperature • -20 °C to +70 °C, derate linearly from 100% at +50 °C to 50% at +70 °C Cooling • Convection-cooled Operating Humidity • 95% RH, non-condensing Storage Temperature • -40 °C to +85 °C Operating Altitude • 3000 m Vibration • 2 g, 10 Hz to 500 Hz, 10 mins/cycle, 60 mins each cycle EMC & Safety Emissions • EN55022, level B conducted & radiated Harmonic Currents • EN61000-3-2, class A Voltage Flicker • EN61000-3-3 ESD Immunity • EN61000-4-2, level 3 Perf Criteria A Radiated Immunity • EN61000-4-3, 10 V/m 80% mod Perf Criteria A EFT/Burst • EN61000-4-4, level 3, Perf Criteria A Surge • EN61000-4-5, installation class 3, Perf Criteria A Conducted Immunity • EN61000-4-6, 10 Vrms Perf Criteria A Magnetic Fields • EN61000-4-8, 10 A/m, Perf Criteria A Dips & Interruptions • EN61000-4-11, 30% for 10 ms, 60% for 100 ms, 100% for 5000 ms Perf Criteria A, B, B Safety Approvals • IEC60950-1, EN60950-1, UL60950-1, CSA22.2 No. 234 per cUL

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	XP Power
MPN	ECL10US05-T
