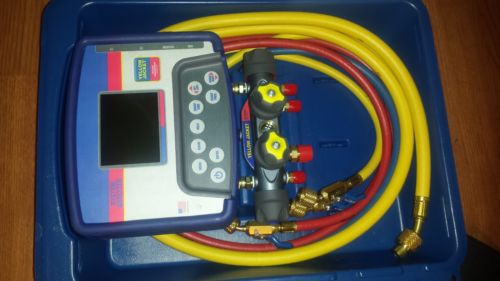

Yellow Jacket 40813 Refrig Sys Analyzer, Manifold, Hose, Vacuum Sensor, In Case

US $840.00

Schenectady, New York, United States
Mar 1st

Open on mobile:
QR code

The display reads in analog, digital or a combination of both, and monitors two pressures, two live temperatures, subcooling and superheat, and saturation temperatures (liquid and vapor) for 84 refrigerants. The new YELLOW JACKET refrigeration system analyzer features a full color graphics display and color-coded diagnostics for intuitive, easy reading. The refrigeration system analyzer comes standard with the TITAN™ 4-valve manifold, an external, replaceable vacuum sensor; battery holder; and a boot, bumper, plug and sensor boots, all in a blow-molded instrument case. No other refrigeration system analyzer on the market today offers all of these features in one unit. Features: LCD display with adjustable brightness and contrast, protected by an anti-glare, scratch resistant lens Nearly 100 NIST refrigerant profiles included (upgradeable via USB for new refrigerants) Built-in pressure/temperature chart reference screen for all refrigerants Built-in full scale vacuum sensor reads deep vacuum down to 10 microns Dual “K-Type” temperature-compensated sensor ports allow for simultaneous suction and liquid readings High accuracy and resolution pressure transducers for fast and sensitive leak detection Provides real-time pressure data in selectable time increments: 0.1, 0.2, 0.5, 1 and 2 seconds Displays and records max/min pressures Data logging for onscreen review or USB export to PC to generate performance/Excel™ work reports Tracks and exports date and time, useful for data logging Elevation may be entered manually for accurate, automatic pressure compensation Selectable “auto power off” and “power saving mode” Low battery indicator 360° swivel hook stows away when not in use Highly weather resistant, glass fiber reinforced, engineering grade thermoplastic housing—fully gasketed for water and dust resistance Made in the U.S.A. Specifications: Pressure sensing resolution (low and high sides): – 0.1 psi, 0.01 bar, 1 kPa, 0.1 MPA, 0.01 kg/cm? Pressure sensing accuracy: – 0.5% of full scale at 25°C – 1% of full scale at 55 to 130°F – 2% of full scale -40 to 120°C Working pressure (maximum measurable pressure): – Low side: 0-350 psia – High side: 0-700 psia Proof pressure (low and high sides): 1000 psi Burst pressure (low and high sides): 1500 psi Temperature sensor range: -100 to 600°F (-73 to 315°C) Temperature display resolution: 0.1°F or C Temperature accuracy: ±1.8°F (±1°C) Vacuum display resolution: – Shows two most significant digits in microns (25xxx-10xxx, 99xx-10xx, 99x-10x, 99-10) – Other units are direct conversions from the micron value Vacuum accuracy: 20% of reading Operational temperature: -4 to 122°F (-20 to 50°C) Storage temperature: -20 to 170°F (-29 to 77°C) Dimensions: 8.3” W x 6.7” H x 3.6” D (21 cm x 17 cm x 9 cm) excluding manifold Weight: 3.2 lb (1.45 kg) excluding manifold Power: AA batteries (8); alkaline, NiCd, NiMH, A-A Lithium, Li Ion, Li Pol (approximately 14 hours of continuous operation with industrial alkaline batteries)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Yellow Jacket
Country/Region of Manufacture	United States
MPN	40813
