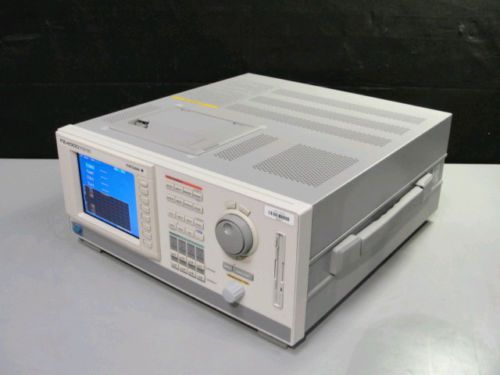

Yokogawa Pz4000 Power Analyzer, Dc To 2 Mhz: Options D, B5, C7, M3, & 253752

US $11,899.00

Oceanside, California, United States
Jan 29th

Open on mobile:
QR code

YOKOGAWA PZ4000 POWER ANALYZER DESCRIPTION The Yokogawa PZ4000 Power Analyzer is a powerfull tool designed for R&D work relating to environmentally friendly energy-conserving products and technologies. The PZ4000 was designed based on YOKOGAWA’s Environmentally Harmonious Product Design Guidelines and Product Design Environmental Assessment Standards, which are intended to protect the global environment. The PZ4000 has been developed and produced at ISO14001-approved offices. Features of the Yokogawa PZ4000 include: Wide measurement bandwidth (DC, up to 2 MHz) Accurate capture of input waveforms using high-speed (maximum 5 MS/s) sampling Voltage and current waveform display and analysis functions to enable power calculations on fluctuating inputs Harmonic analysis (up to 500th order) and Fast Fourier Transform (FFT) functions to enable high-frequency power spectrum analysis Simultaneous measurement of many channels using multiple units and external trigger function Environmentally friendly design based on YOKOGAWA’s “Guidelines for Designing Products for the Environment” and “Criteria for Environmental Assessment in Product Design.” Sensor input module enables evaluation of motor efficiency and total efficiency. The PZ4000 has a Power Meter that displays measured waveforms. Measured voltages and currents are sampled at high speed (maximum 5 MS/s). Power is calculated from the sampled data along with accurately displayed waveforms. The benefit is that Waveform displays and calculated values (e.g., power values) are based on sampled data stored in internal memory, so they are correlated with each other. Measured waveforms and calculated values can be checked at the same time to prevent erroneous measurements. Voltage and current waveforms can be measured without using oscilloscope differential probes and current probes. The PZ4000 can make waveform measurements much more accurately than with conventional oscilloscopes. The PZ4000 offers a wide bandwidth and high-precision measurements. Measurements can be made over a wide frequency range (DC up to 2 MHz), making it possible to measure power loss on electronic components, high-frequency lighting equipment, and other devices. cision power measurements at high frequency. The PZ4000 lets you make high-precision measurements of voltage, current, and consumed power in equipment driven at frequencies ranging from several tens of kHz to approximately 100 kHz. Lamp current measurement in fluorescent bulb With the PZ4000, you can measure lamp current of fluorescent bulb using Delta Computation function. It computes the difference of the instantaneous values between output current of electric ballast and cathode current. Loss measurement when actual load is applied to electronic components With the PZ4000, you can measure power loss resulting from actual load applications, instead of evaluating characteristics based on small signals using an LCR meter or impedance analyzer. Power measurements on extremely low-frequency signals are also possible. Take full advantage of the 4M word internal memory (optional; enough for 4 million samples) to obtain precise measurements of extremely low-frequency (several mHz) signals. Load fluctuations can be dynamically captured by the power meter. Internal memory (maximum 4 M words) stores your measurements. You can calculate and display voltage, current, and power values for specific portions of the total memory (equivalent to 100 k words of data). The display makes it easy to see how the load fluctuates with time. Inrush current and power measurements (at switch-on) In the past, it was necessary to measure inrush current and power values at power-on using measuring instruments such as oscilloscopes. The PZ4000 makes these measurements much more accurately and greatly simplifies this procedure. Power measurements in specific states (specific spans in internal memory) Power measurements on equipment with fluctuating loads are normally obtained by measuring the energy in certain operating patterns over a long time period using an integration function. The average power value is then calculated. In contrast, The PZ4000 lets you make power measurements over a specific period defined by adjustable cursors. This reduces the time required for measurements. Power Graphical Power Analysis feature: The PZ4000 lets you analyze harmonics (up to 500th order) using high-speed sampling. With the FFT calculation function, you can perform spectrum analysis in the high-frequency range (up to 2.5 MHz). Analysis results are displayed on spectrum graphs. In addition, vectors showing the fundamental components of distorted waveforms can be displayed to give a visual presentation of the load balance in a 3-phase power supply system. With the PZ4000, you don’t need a frequency analyzer to perform spectrum analysis on the carrier component of an inverter. This type of analysis is typically difficult. A major advantage with the PZ4000 is that you can input signals directly without using probes. This removes any error due to probe tolerance. The load balance evaluation in a three-phase equipment The vector display using the harmonic analysis function lets you visually know the condition of each phase in a 3-phase equipment. This makes evaluation simpler than when calculations are performed manually based on numerical data. Notes / Included Options: D - US Power Cord M3 - Extend Memory to 4 Mword/Ch B5 - Built-in Printer C7 - SCSI 253752 (4X) - Four Power Measurement Modules, 1000V, 5A & 20A *All of our equipment has been tested. Additional Calibration may be available upon request! ~Items sold with shown accessories, a power cord and manual on CD (when available)~ PAYMENT AND SHIPPING INFO Warranty Info & Return Policy All goods or equipment sold by AxiomTest include a 30-Day Domestic Warranty. Warranty period starts the day the equipment is shipped. AxiomTest will at its discretion, repair, replace, or refund the selling price for any malfunctioning equipment or goods, provided payment is made in due course, except in cases of improper application or misuse of goods or equipment by Customer. Shipping costs are not refundable. All goods or equipment sold by AxiomTest are subject to a limited 5-day Domestic ROR (Right of Return) unless otherwise noted. This ROR is limited to goods found to be non-acceptable due to cosmetic defect (not previously disclosed) or item not meeting manufacturer's spec as advertised. ROR does not apply to wrong item(s) ordered by customer. All items past the 5-day ROR period will be accepted only under written acceptance by AxiomTest. Customer agrees to pay all return shipping costs for any returned item. Items that are damaged in shipping are not covered under ROR terms. Items misused or damaged by customer's misuse (intentional or unintentional) are not covered by ROR. ROR does not apply to rental orders. Returns must be shipped with all original packaging and accessories. We will not accept any items with obvious signs of additional wear and tear or internal component alterations. All of our items will ship with “Warranty Void” tamper resistant stickers. If any stickers have been removed or tampered with your refund will be canceled. Please include your order number and a brief description as to the reason for returning the item(s). SORRY - RETURNS NOT ACCEPTED FOR ORDERS PLACED OR SHIPPED OUTSIDE OF THE U.S. Payment Options USA Bidders- PayPal, Money Order, Wire Transfer, Company Check, Personal Check or Bank Check. All funds must be in US Dollars- no exceptions. Unsecured funds must clear prior to shipment (typically 7-10 days after I receive the funds). International Bidders: Wire transfer of funds (US dollars only- a $25 wire transfer fee will apply) and PayPal where available. NO CREDIT CARD PURCHASES ARE ACCEPTED. Shipping Unless noted otherwise, all shipments within the USA are done through UPS or FedEx Ground (up to 5 Business days for processing). If you have an account with a shipping service or your own method of shipping and would like to utilize that source please allow 5-7 business days for shipment to occur. Shipments are delivered to all US addresses, including military addresses. Saturday and Residential delivery are available at an additional third party charge depending on the shipping method you choose. We now offer shipping outside of the United States. However, some international laws prohibit us from shipping certain items to certain countries. Additionally, not all countries are supported by our service provider. Our international rates are not always the best, so you may also elect to use your own freight/shipping account through FEDEX or DHL. We are not set up to ship via USPS, and we will NOT falsify any import documents for international orders - no exceptions. Additionally, your international order may have applicable duties and taxes for shipping an item into your country. Please contact us to accurately quote and invoice these fees PRIOR TO CHECKOUT. Please note: In all sales where an item is prohibited to ship internationally to a successful buyer, that buyer will be notified of non-shipment and a full refund will be made. We reserve the right not to ship any item internationally that is controlled by the US Department of Commerce’s laws and regulations and deemed non-shippable to that region of the world or to listed individuals. *eBay's International Shipping calculations do not include any additional duties, fees, or VAT that may be associated with importing this item into a foreign country - please bid accordingly* Sales Tax California residents will be charged sales tax if no resale or tax exempt form is submitted prior to payment. ******CALL (760) 806-6600 TO RENT THIS ITEM****** TRIED, TESTED...ACCEPTED.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Fully Tested and Guaranteed Working. This is a used analyzer in excellent working condition. Overall it is very clean (see photos).”
