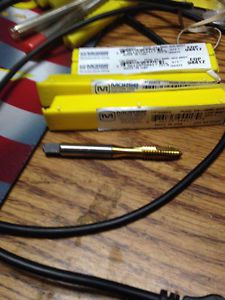

1/4"-20 Gh3 High Speed Steel 3 Flute Tin Coated Spiral Point Plug Tap

US $52

Petaluma, California, United States
Oct 23rd

Open on mobile:
QR code

1/4"-20 GH3 3 FLUTE HIGH SPEED STEEL TiN COATED SPIRAL POINT PLUG TAP 94417 MADE IN USA Technical Specifications Type Production Class Fractional Brand Name ShearTap™ Flute Type Spiral Point Finish TiN Style UNC - Unified Coarse Thread Series Pitch Diameter Limit H3 Chamfer Plug Pitch 20 Harmonized Tariff Code 8207.40 List No. 2090G Diameter 1/4" Material High Speed Steel Overall Length 2.5000 Origin Made In U.S.A. Number of Flutes 3 Coating Titanium Nitride Thread Length 0.6300 Neck Length .375 UPC Code 686125944179 ShearTap™ - for Stainless Steel & Carbon Steel up to 35Rc hardness. CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece. Spiral Point Taps are designed for efficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds. TiN - Titanium Nitride increases wear resistance, reduces friction and galling, reduces tapping torque, improves thread quality, and allows increased cutting speeds. Productivity and tool life are improved.
