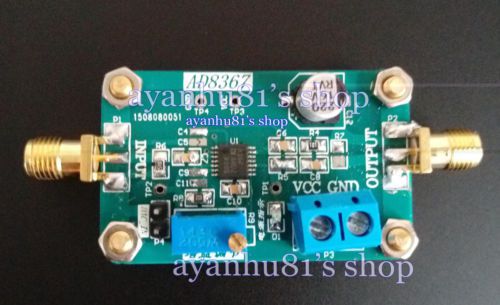

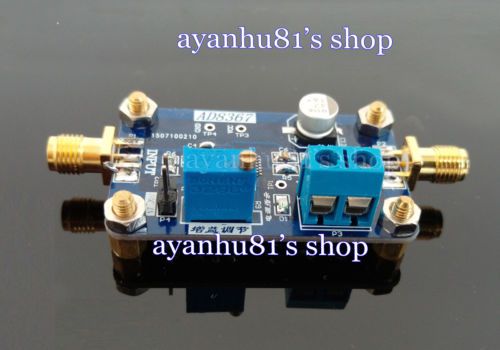

1-500mhz Rf Broadband Signal Amplifier Module 45db Linear Variable Gain Ad8367

US $23.99

HONG KONG, Hong Kong
Jun 9th

Open on mobile:
QR code

Welcome to my ebay store! You will find your favorite products. Pass by do not miss.thank you! Product Detail Name: AD8367 variable gain amplifier Power: + 5V Size: 45mm X 28mm Features: layout of regular, MINI, reasonable layout design layout, generous timber, for students to learn and participate in competitions. Specifications : ( --- ayanhu81 ebay shop welcome you to buy it ---) Wide range of analog variable gain: -2.5 dB to 42.5dB Cut-off frequency of 500MHz 3dB Gain and debuffs mode Linear decibel scale is 20 mV / dB's Resistance Grounded reference input Nominal ZIN = 200Ω On-chip, the square-law detector Single-supply operation: 2.7 V to 5.5 V Application: ( --- ayanhu81 ebay shop welcome you to buy it ---) Cellular base stations Broadband access Power amplifier control circuit Complete linearity IF AGC amplifier High-speed data I / O Overview: ( --- ayanhu81 ebay shop welcome you to buy it ---) The AD8367 is linear in dB gain control from low use of high-performance variable gain amplifier within 45 db up to several hundred megahertz range, and gain flatness response precision using ADI's X-AMP® architecture, the recent series of powerful The concept of variable gain proprietary application, which far exceeds the competition can use technology to achieve. This input is applied to 9 level , 200Ω resistor ladder network. Each stage has a loss of 5 dB, 45 dB of total attenuation given. At maximum gain, the first tap selection; in decreased earnings, leading to move smoothly and continuously toward higher attenuation values. Even at high frequencies, after 42.5 db attenuator is substantially fixed gain feedback amplifier having an operational amplifier 100 GHz, and a gain-bandwidth product is very linear. Output third-order intercept of 20 db at 100 MHz (when +27 dBm, at 200Ω), at 1 V PP with VS = 5 V output level measurement. Package listing : 1x Signal Amplifier Module 45dB linear Variable Gain AD8367 Feedback > We maintain hightest buyer ratings > Positive Feedback will be much appreciated from you. > Any dissatisfaction, please contact us immediately! > Please do not leave neutral or negative feedback before we help you out. Payment > We accept PayPal only. > All major credit cards are accepted through secure payment processor PayPal. > Payment must be received within 7 days of auction closing. Shipping > We Ship to Worldwide, except Hong Kong, Nigeria..... > Items will be shipped within one business day on payment received. > Items are shipped from China using Airmail, delivery time depends on destination and other factors,reach most of the countries within 10 to 35 business days. Country Shipping Way Shipping Time Tracking Number United States China Post 7-12 Yes Russian China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-45 No Brazil / Africa HK /Swiss Post Air Mail 35-65 No Returns > Defect: We will fully refund or send you a new replacement,please contact and return within 14 days. > Dissatisfaction: Please contact within 3 days, we will fully refund, after got your returned goods. > Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued. Contact us > If have any question, Please contact us by ebay message before leaving neutral, negative feedback or open any dispute, we will reply within 24hours, ensure that help you solve the problem, make you satisfied. > Our Working-time From 8:30 AM to 21:30 PM(GMT+08).

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	UPC	Does not apply
Type	Signal Amplifier Module 45dB linear Variable Gain
Brand	DIY
Power	5V DC
MPN	DIY
variable gain:	-2.5 dB to 42.5dB
