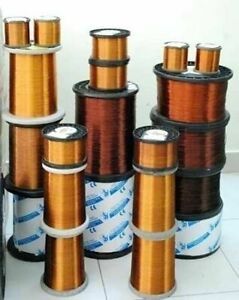

1.6 Mm 14 Awg Gauge 80 Gr ~4.4 M (2.8 Oz) Magnet Wire Enameled Copper Coil

US $6.56

Dortmund, Germany
Jul 9th

Open on mobile:
QR code

5% discount if you will buy 2 any wires 10% discount if you will buy 3 any wires 15% discount if you will buy 4 any wires Another copper magnet wire sizes: By weight: Diameter 30 grams 80 grams 130 grams 220 grams 310 grams 460 grams 940 grams 1800 grams 0.12 mm (36 AWG Gaude) ~293 meters ~782 meters ~1271 meters ~2151 meters ~3030 meters ~4497 meters ~9189 meters ~17595 meters 0.17 mm (34 AWG Gaude) ~146 meters ~390 meters ~634 meters ~1073 meters ~1512 meters ~2244 meters ~4585 meters ~8780 meters 0.2 mm (32 AWG Gaude) ~106 meters ~282 meters ~458 meters ~775 meters ~1092 meters ~1620 meters ~3310 meters ~6338 meters 0.25 mm (30 AWG Gaude) ~68 meters ~180 meters ~293 meters ~495 meters ~698 meters ~1036 meters ~2117 meters ~4054 meters 0.28 mm (29 AWG Gaude) ~50 meters ~133 meters ~217 meters ~367 meters ~517 meters ~767 meters 0.32 mm (28 AWG Gaude) ~44 meters ~118 meters ~191 meters ~324 meters ~456 meters ~676 meters ~1382 meters ~2647 meters 0.36 mm (27 AWG Gaude) ~31 meters ~82 meters ~133 meters ~226 meters ~318 meters ~472 meters 0.4 mm (26 AWG Gaude) ~25 meters ~67 meters ~108 meters ~183 meters ~258 meters ~383 meters ~783 meters ~1500 meters 0.5 mm (24 AWG Gaude) ~17 meters ~45 meters ~73 meters ~124 meters ~175 meters ~260 meters ~531 meters ~1017 meters 0.6 mm (22 AWG Gaude) ~12 meters ~31 meters ~50 meters ~85 meters ~119 meters ~177 meters ~362 meters ~692 meters 0.7 mm (21 AWG Gaude) ~9 meters ~23 meters ~37 meters ~63 meters ~89 meters ~131 meters ~269 meters ~514 meters 0.8 mm (20 AWG Gaude) ~6 meters ~17 meters ~28 meters ~48 meters ~67 meters ~99 meters ~203 meters ~389 meters 0.9 mm (19 AWG Gaude) ~5 meters ~14 meters ~22 meters ~38 meters ~53 meters 1 mm (18 AWG Gaude) ~4 meters ~11 meters ~18 meters ~30 meters ~42 meters ~63 meters ~128 meters ~245 meters 1.18 mm (17 AWG Gaude) ~3 meters ~8 meters ~13 meters ~21 meters ~30 meters ~45 meters ~92 meters ~176 meters 1.3 mm (16 AWG Gaude) ~3 meters ~7 meters ~11 meters ~18 meters ~26 meters ~38 meters ~78 meters ~150 meters 1.8 mm (13 AWG Gaude) ~1 meters ~3 meters ~5 meters ~9 meters ~13 meters ~39 meters ~75 meters Copper wire properties: Polyester or Polyesterimide overcoated with polyamide-imide INSULATION Enamelled Round Copper Wire, Class 200 Over Coat :Polyamide-imide Base Coat: Polyester or Polyester-imide Conductor: Copper UL File Number: E255643 TECHNICAL PROPERTIES STANDARDS MECHANICAL IEC EN 60317 - 13 Elongation % >1,3 x IEC Value NEMA MW 35 C Mandrel Test 1 x Diameter - No Crack TSE TS EN 60317 - 13 Resistance to Abrasion >2,5 x IEC Value AVAILABILITY THERMAL 0,05 - 5,00 mm. Thermal Index 210 °C 4 - 44 AWG Heat Shock > 240 °C Cut Through > 360 °C APPLICATIONS CHEMICAL Motors, Hermetic Motors Resistance to Solvents 6H Refrigerant and Compressor Motors Resistance to Refrigerants Very Good Automotive Alternators Resistance to Transformer Oil Very Good Torroidal Coils Solenoids Dry-Type Transformers PROPERTIES ELECTRICAL Suitable for high speed winding. Breakdown Voltage >1,5 x IEC Value Excellent dielectric performance Conductivity (m/Ωmm2) >58,5 Superior chemical and moisture resistance Pinhole Free Superior thermal overload protection High mechanical and thermal properties

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Wire Gauge	14
Brand	Elsan
Country of Manufacture	Turkey
MPN	Does Not Apply
UPC	Does Not Apply
