1 X Roll Of Dry Film Photoresist Sheets For Diy Pcb 300mm X 1000mm (30cm X 1m)

US $4.25

,, China
Jun 9th

Open on mobile:
QR code

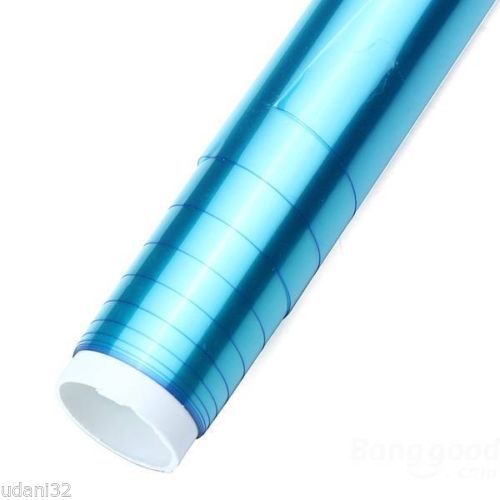

Roll of 30cm x 1m Negative Photosensitive Dry Film PhotoResistive Transfer for PCB Board Feature: Width: 30cm Length: 1M 1.5 mil thickness of dry film can be completely cover a hole of 0.25 inches The dry film can be used in the most ordinary plating solution, no wrinkle, no discoloration It can cut into 10pcs 15cm x 20cm film,and 5pcs 20cm x 30cm film. You can cut it as you like How to use it ? 1. Clean your copper board thoroughly using a fine sand paper. Cut dry film a little larger than your board. 2. Apply Resist: This Photoresist has 3 layers, the top and bottom layers are clear protective layer, so at the first, you need remove one protective layer, the easy way is to use two small pieces of scotch tape. Then apply the middle layer on board. A-- Apply using a hot roll laminator. This is the easist and professional way to do it. B-- Apply using your hand. Starting from one corner and ending to the cross corner, use your palm to remove all air bubble between film and board, set the iron temperature about 130°C, apply the hot iron down onto the film and PCB, pressing them both flat and putting them under pressure. 3. Expose: Place your negative artwork over the rest protective layer. Use a glass to press the artwork to the board snuggly, then expose to UV light source or under sunlight,the source of light should be at least 8" away from the artwork. The best exposure time is depends, but you can easy to recognize it: the color of film is changing from light blue to dark blue. 4. Develop: Remember: you need NEGATIVE film developer, Remove the rest protective layer on the film, now only resist left on the board, develop board in developer solution that mixed by 1g developer powder with 100g(or 100ml) water (~1% by weight). After 3 minutes take board out of developer and hold under running water to check,you can always place it back in the developer if needs more time. Package included: 1 x 30cm x 100cm Photosensitive Dry Film roll Step by step guidance to make high quality PCBs with photoresist film sheets. The film is folding in between of two cover film, remove one side first. 1.jpg (76.81 KiB) Viewed 1353 times Place the film on copper board, clean the copper board with sand paper beforehand, so it's easy to stick on it, make sure the film is flat, and without bubble 2.jpg (83.62 KiB) Viewed 1353 times Also possible to use an heat transfer machine to place the film like this (or heat the film up with iron, not too hot, so the film is fixed on top of copper plate) 3.jpg (102.84 KiB) Viewed 1353 times 4.jpg (116.44 KiB) Viewed 1353 times Print Circuit board with photo film 5.jpg (136.8 KiB) Viewed 1353 times Exposure the circuit onto copper board which are already covered by film. Depends what kind of light you use, time is varying from 1 mins to 30 mins.For this UV light, you only need 1-2 mins 6.jpg (90.38 KiB) Viewed 1353 times Developing, remove the another layer of film, leave it in developing liquid which is pre-mixed with water by 1:00 7.jpg (182.61 KiB) Viewed 1353 times Etch 8.jpg (170.6 KiB) Viewed 1353 times Removing the rest film by film remover liquid pre-mixed 9.jpg (170.5 KiB) Viewed 1353 times Will be packed in protective wrappers and bubble bags before shipping. Shipping I will ship the item within 2 business days after clearing the payment. The item will be ship via Air mail and it will take 8-20 business days to arrive depending on destination. Express shipping via DHL or EMS also available which will take 2 - 5 days. Payments I only accept payments through Paypal Returns I accept returns. buyer must return the item in original condition within 14 days after receiving it. Buyer must pay the return shipping.
