10-1/2 Inch Universal Dividing Head Set

US $1,219.06

  • Chino, California, United States
  • Jan 30th
Open on mobile:
QR code

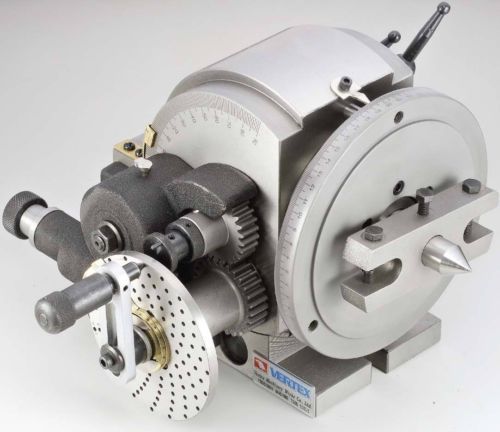

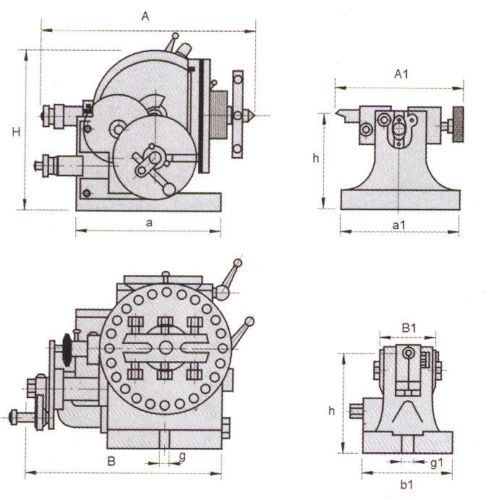

PLEASE NOTE:  ONE OF THE PICTURES IS NOT CURRENT - THE SPINDLE IS NO LONGER THREADED AND THE CHUCKS ARE FRONT MOUNT ONLY.   THE CLOSE UP PICTURE SHOWS THE NEW NON-THREADED UNIT Ideal for easy indexing of divisions from 2 to 50 and most numbers from 52 to 380. Designed for all types of gear cutting. Worm and spindle are hardened and ground Features spiral machining capability Allows you to divide in any angle by the direct,indirect or differential methods with unique dividing head. Ratio between worm and worm gear:40:1 Features threaded spindle nose and 24 hole dividing plates with easy conversion to fast, direct indexing on numbers2,3,4,6,8,12,and 24. Complete set includes dividing head,AdjustableTailstock,3Dividing Plates,12 gears with 2 arms for differential indexing or transmitting machine table feed to worm shaff for spiral cutting. Swing:10-1/2" Center Height(h):5.22" Hole Through Spindle(dia):0.945" Spindle Taper:B&S No.10 A/B/H:14.37"/10.71"/9.29" a/b:8.39"/5.28" Optional 3-Jaw Chuck:6"/7"/8" Tailstock Dimension(A1xb1xH1):10.0"x4.9"x5.5" a1:6.89" g=g1:0.63" Dividing Plate A B C: Numbers of Hole(Plate A):15,16,17,18,19&20 Numbers of Hole(Plate B):21,23,27,29,31&33 Numbers of Hole(Plate C):37,39,41,43,47&49  To combine shipping, please purchase all items needed without paying and email us when you are done.  We will send you an invoice with combined shipping charges. One year warranty Allow 1-2 business days for the shipping process.
