10.368 Ghz Pll Brick Oscillator, 12.3 Dbm Output

US $223

  • San Marino, California, United States
  • Jan 29th
Open on mobile:
QR code

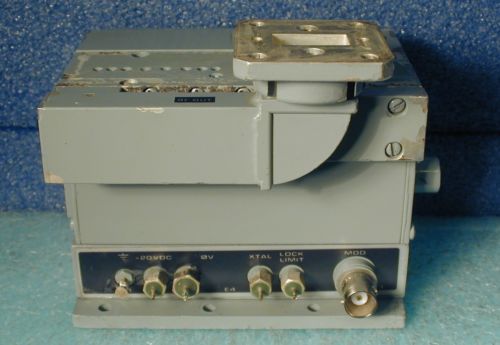

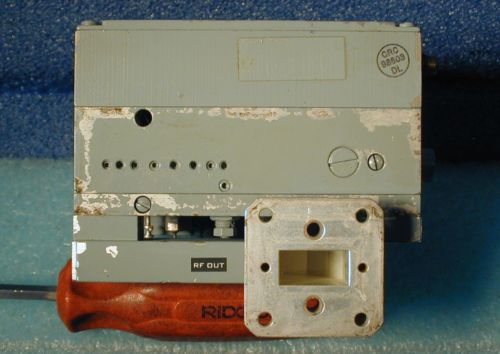

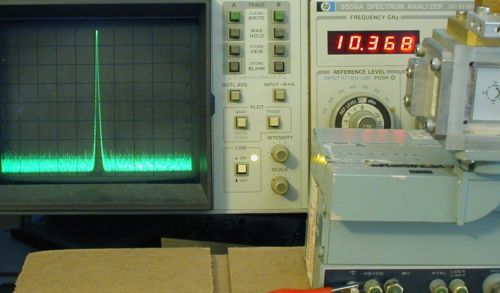

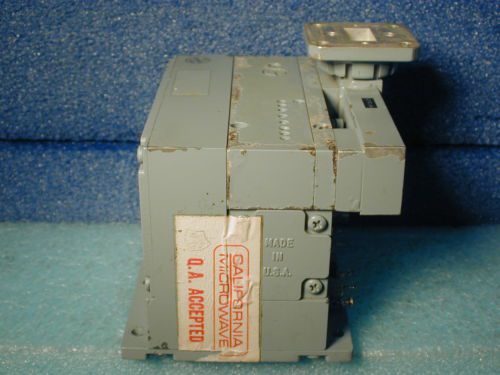

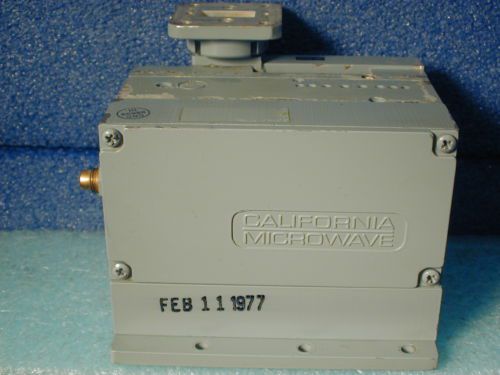

10.368 GHz  PLL brick oscillator by California Microwave.  Contains a high-Q cavity oscillator at 1296 MHz that is phase locked to the X11 harmonic of the internal reference ovenized crystal oscillator.  Here, I am using a XTAL at 117.8182 MHz,  and the multiplier block is X8 giving output at 10368 MHz.  The output power is 12.3 dBm at the WR-75 waveguide flange.  Of course, you could use a 108 MHz crystal and phase lock to the X12 harmonic.  Or a 99.6923 MHz crystal and phase lock to the X13 harmonic.  Brick also has a modulation input (BNC).   Requires a well-regulated  -20.0 VDC supply at about 0.4A.   The spectrum analyzer (at 1 MHz/div), cables, WG isolator, attenuators, and the crystal are not included in auction.   This "brick" is in very good condition, and it phase locks just fine.  For best stability, use a waveguide isolator on the output.  Ships to USA for $8.00 via USPS Priority mail in antistatic bag and boxed.   No shipping out of USA.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand California Microwave
Model .

Directions

Similar products from Crystals, Crystal Oscillators & Kits
