10.368 Ghz Pll Brick Oscillator, 16 Dbm Output

US $240

  • San Marino, California, United States
  • Jan 29th
Open on mobile:
QR code

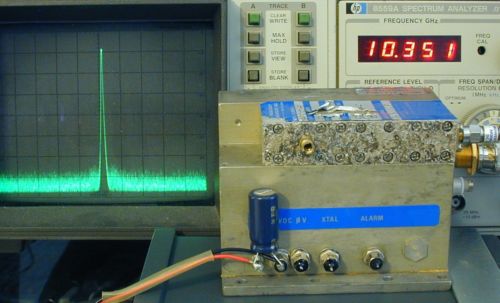

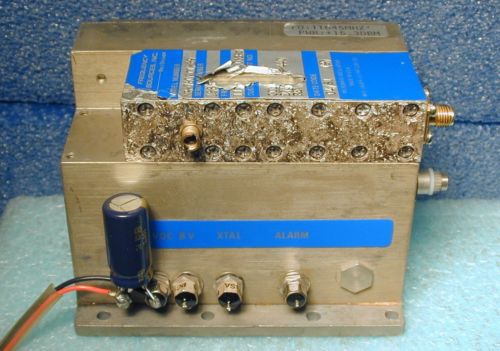

10.368 GHz  PLL brick oscillator by Frequency West , model MS-760XOL (the higher power version).  Contains a high-Q cavity oscillator at about 1725 MHz that is phase locked to the X16 harmonic of the internal reference ovenized crystal oscillator.  Here, the XTAL is 107.8241 MHz,  and the multiplier block is X6 giving output at 10351 MHz.  The output power is 16 dBm.   Of course, if you want 10368 MHz:  you run the cavity oscillator at 1728 MHz and use a 108 MHz crystal and phase lock to the X16 harmonic.  Or a 96 MHz crystal and phase lock to the X18 harmonic.  Or a 101.64705 MHz crystal and phase lock to the X17 harmonic.   Requires a well-regulated  -19.0 VDC supply at about 0.4A.   The spectrum analyzer (at 1 MHz/div), cables, attenuators, and the crystal are not included in auction.   This "brick" is in very good condition, and it phase locks just fine.  One advantage of this brick versus most others:  the multiplier block bandpass filter adjust screws are easily accessible on top of the brick under the label.  For best stability, use a coaxial isolator (or coaxial attenuators) on the output   Ships to USA for $9.00 via USPS Priority mail in antistatic bag, well packed, and boxed.   No shipping out of USA.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand California Microwave
Model .
