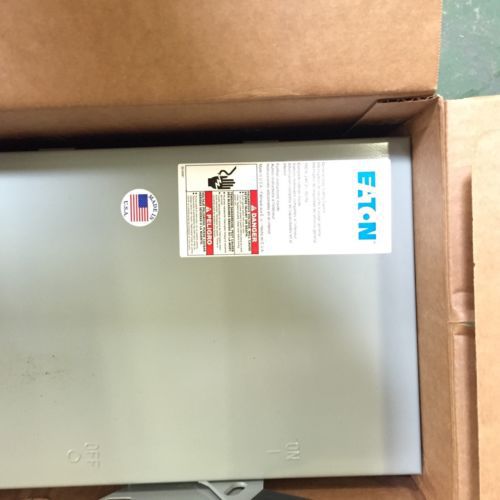

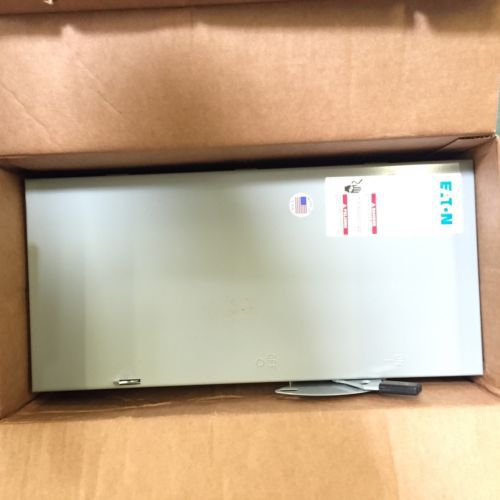

100 Amp 3 Phase Non-Fused Disconnect Switch - Eaton Cutler Hammer DG323UGB, US $150.00 – Picture 0

100 Amp 3 Phase Non-Fused Disconnect Switch - Eaton Cutler Hammer DG323UGB, US $150.00 – Picture 1

100 Amp 3 Phase Non-Fused Disconnect Switch - Eaton Cutler Hammer DG323UGB, US $150.00 – Picture 2

100 Amp 3 Phase Non-fused Disconnect Switch - Eaton Cutler Hammer Dg323ugb

US $150.00

Minneapolis, Minnesota, United States
Mar 12th

Open on mobile:
QR code

Eaton / Cutler Hammer DG323UGB 3-Wire Non-Fusible General Duty Safety Switch; 240 Volt AC, 100 Amp PRODUCT DETAILS • Size: 9.130 Inch Width x 7.380 Inch Depth x 18.810 Inch Height Eaton / Cutler Hammer 2-Pole Non-fusible safety switch is used to manually connect or disconnect the equipment from the power source. The 3-Wire switch has a voltage rating of 240 VAC, current rating of 100 Amps and maximum HP rating of 15/30 hp at 240 Volts. Switch is UL listed. PRODUCT SPECIFICATIONS AC Voltage Rating 120/240 V ACT_Amperage Rating 100 Amp ACT_Contact Configuration 3PST ACT_Enclosure NEMA 1 Indoor ACT_Housing Material Painted Steel ACT_Mounting Surface/Panel ACT_Number Of Poles 3 ACT_Voltage Rating 240 Volt AC Amperage 100 A Amperage Rating 100 Amp Amps 100 Application For Service Entrance Applications Brand Name Eaton / Cutler Hammer Catalog Description General Duty Safety Switch, 100A, 240V, Three-pole, Three-wire, Non-fusible, NEMA 1, Painted steel Catalog Number DG323UGB Commodity Code 3100 Competitor Part No. CUTDG323UGB Country of Origin US Current Rating 100 A Current, Rating 100A Enclosure NEMA 1 Enclosure Rating NEMA 1 Enclosure Type NEMA 1 Fuse Provision Non Fusible Fuse Type Cartridge GTIN 00782113144368 Gross Weight 12.000 HP Rating 15 hp at 1 Phase, 60 hp at 3 Phase Height 7.5000 Horsepower, Max, 1 Phase, at 240 v 15 Horsepower, Max, 3 Phase, at 240 v 30 Housing Material Steel Invoice Description English General Duty Non-Fusible Safety Switch Item Non-Fusible Safety Switch Length 18.2500 Material Painted steel Mfr/Vendor Eaton / Cutler Hammer Model DG Mounting Surface/Panel Mounting Type Panel NEMA Rating 1 (Indoor General Purpose) Neutral Type No Number of Poles 3 Number of Wires 3 Operation Safety Order Minimum 1 Phase 3 Poles 3 Power Rating 15 Hp At 240 VAC 1 Phase, 30 Hp At 240 VAC 3 Phase Primary Type Safety Switch Product Type Safety Switch ShortDescriptionStripped Eaton-Cutler-Hammer-DG323UGB-3-Wire-Non-Fusible Special Features Non-Fusible, NEMA 1 Standard UL listed Standards UL Listed File # E5239, UL 98, NEMA Standard KS-1 Type 3-Wire, Three Blades UPC 782113144368 Voltage Rating 240 Volt Voltage, Rating 240 VAC Width 9.5000 description ETN DG323UGB General Duty Non-Fusib feature#1 Suitable for light duty motor circuits, service entrance, residential and commercial applications. feature#2 Bolt-on hub provision. Provided for general-duty switches in a NEMA 3R enclosure feature#3 UL listed File No. E5239. Meets UL 98 for enclosed switches and NEMA Std. KS-1.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Eaton Cutler Hammer
Country/Region of Manufacture	United States
Model	DG323UGB
Country of Manufacture	United States
MPN	DG323UGB
