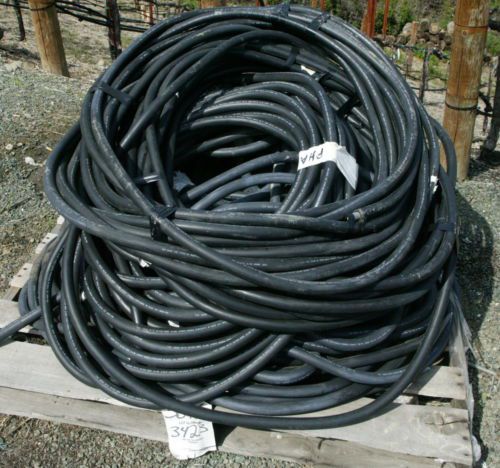

100' 250MCM AWG Type W RHH RHW 2KV Round Portable Cord Cable Wire Adjustable, US $400.00 – Picture 0
100' 250MCM AWG Type W RHH RHW 2KV Round Portable Cord Cable Wire Adjustable, US $400.00 – Picture 1
100' 250MCM AWG Type W RHH RHW 2KV Round Portable Cord Cable Wire Adjustable, US $400.00 – Picture 0
100' 250MCM AWG Type W RHH RHW 2KV Round Portable Cord Cable Wire Adjustable, US $400.00 – Picture 1

100' 250mcm Awg Type W Rhh Rhw 2kv Round Portable Cord Cable Wire Adjustable

US $400.00

  • Rutherford, California, United States
  • Jan 29th
Open on mobile:
QR code
Applications: For use as portable power systems, entertainment industry activities such as theatre, television, nightclubs, motion pictures, mobile communication vans, spotlights and sound permanent or temporary power. Permanent wiring of 600 volt power supplies, hoistss, cranes and other applications where flexible power leads must be installed in conduit or raceways. Construction Conductor is 8 - 500 MCM fully annealed stranded bare copper. Insulation is premium grade 90oC EPDM. Jacket is black CPE. Jacket marking is TYPE W PORTABLE POWER CABLE (UL) DRY 90oC WET 75oC 2000V SUNLIGHT RESISTANT - P(#) MSHA-(SIZE)-TYPE RHH (UL) 600V. Temperature range of -40oC to +90oC . Voltage rating of 600 volt Type W. Water and sunlight resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Lengths cut to order. Standards Meets or exceeds flame test requirements of MSHA, IEEE, ICEA, and UL. Conforms to ICEA S-68-516 (NEMA WC8). ICEA S-75-381 NEMA WC-58 UL TYPE W and RHH or RHW-2 MSHA approved. 100' 250MCM AWG Type W RHH RHW 2KV Round Portable Cord Cable Wire Adjustable Specifications Size AWG: 250 Conductor Stranding: 259 Nominal Thickness of Insulation (Inches): 0.095 Nominal Thickness of Insulation (mm): 2.41 Nominal O.D. (Inches) 1.035 Nominal O.D. (mm) 26.29 Current Amps 445 Weight Per MFT: 1165 Lbs
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Model 250 MCM 1/C type W portable power cable
Country/Region of Manufacture United States
