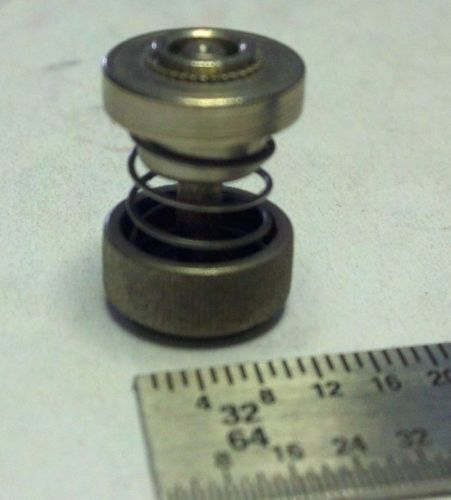

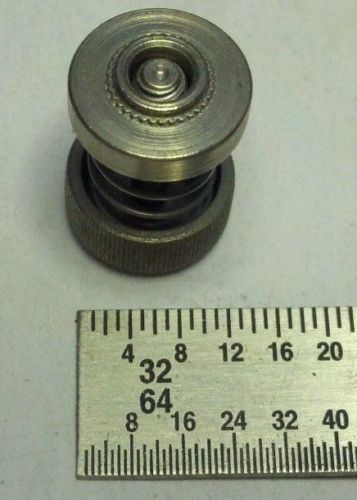

100 Pieces Of Pf31-632-30 Cn Captive Panel Screw-low Profile Knob Spring-load 3

US $49.00

  • Lake Worth, Florida, United States
  • Jan 29th
Open on mobile:
QR code
100 PIECES - Type PF31 Thread Code 632 Screw Length Code 30 A (Shank) Max. .038 in Min. Sheet Thickness .040 in Hole Size in Sheet + 0.003 - 0.000 .219 in C Max. .218 in E ± .010 .438 in G ± .015 .300 in H ± .005 .202 in T1 Max. .325 in T2 Nom. .595 in Min. Dist. Hole C/L to Edge .28 in Thread Specification1 ANSI B1.1, 2A Material Retainer Carbon Steel Material Screw Carbon Steel Material Spring 300 Series Stainless Steel Finish Retainer Bright nickel over copper flash per ASTM B689 Finish Screw Bright nickel over copper flash per ASTM B689 For Use in Sheet Hardness HRB 60 or Less (Hardness Rockwell “B” Scale) HB 107 or Less (Hardness Brinell) CAD View Unfastened CAD Supplier PennEngineering® (PEM®) 1 As with all external plated threads, Class 2A/6g, the maximum major and pitch, after plating, may equal basic sizes and be gauged to Class 3A/4h, per ANSI B1.1, Section 8, Table 3A and ANSI B1.13M, Section 8, Paragraph 8.2.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand PEM
Length (in.) .633"
Model PF31-632-30
Material Steel
Quantity 100
Country/Region of Manufacture Unknown
