10pcs Ad/da Pcf8591 Converter Module For Arduino Raspberry Pi New

US $19.86

Shenzhen, China
Jan 29th

Open on mobile:
QR code

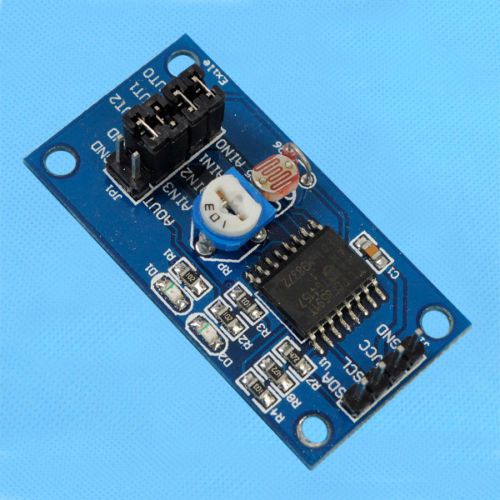

Product Name: 10pcs PCF8591 Converter Module AD/DA new More Items In Our Store,Click Here! SKU: 2172*10 Parsts No. : Package: Brand: Quantity: 10 Description: PCF8591 is a single-supply, low-power 8 COMS-type A / D, D / A converter chip, it has a 4-channel analog input channels, all the way to the analog output channels and an I2C bus interface. The device I2C slave address lower three chips A0, A1 and A2, three address pins decision so without adding any hardware with an I2C bus can connect up to eight devices of the same type. The device has a multi-channel analog input, on-chip track-and-hold, 8 A / D conversion and eight D / A conversion functions. A / D and D / A conversion rate determined by a maximum transfer rate of the I2C bus. Characteristics: Single power supply; The normal operating supply voltage range of 2.5V ~ 6V; Completed through the I2C bus data input / output; Device address is determined by three address pins; The sampling frequency is decided by the I2C bus transfer rate; The 4 Road analog inputs programmable as single-ended or differential inputs; Can be configured to convert the channel number is automatically increased functionality; The analog voltage range of VSS ~ VDD; On-chip track-and-hold function; 8-bit successive approximation A / D conversion; Multiplication with one analog output D / A converter. Module Description: Module chip with PCF8591T, SMD package Support 4 channel analog voltage the acquisition signal input (voltage input range of 0 - 5V) Module with power indicator 1 (D1) A module with DA output indicator (D2), when the DA output voltage reaches a certain value, the indicator light, the higher the voltage value, the brighter lights The module integrates a Road 0 - 5V voltage input acquisition (through the blue and white potentiometer to adjust the input voltage) The module Integrated Road the photoresistor (Model: 5537), ambient light intensity by AD collection Module integrated way thermistor (Model: MF58) ambient temperature by AD collection PCB size: 48mm * 25mm * 1.6mm Quality panel corners arc design will not scratch your hand. With a positioning hole aperture 3.1mm, easy to use 3mm Tongzhu fixed Wiring instructions: Left 4 pin: SDA IIC data interface connected microcontroller IO ports (P2.0) SCL IIC clock interface connected microcontroller IO port (P2.1) The cathode interface external VCC power 3.3/5V positive power supply GND Negative interface external 3.3/5V negative supply Right 8 pin AOUT module DA output port AIN3 analog input signal interface AIN2 analog input signal interface AIN1 analog input signal interface AIN0 analog input signal interface 0 The INPUT3 analog input signal interface 3 INPUT2 thermistor signal input port is connected to The INPUT1 has photoresistor signal input port connected to the INPUT0 is connected to the signal input port of the potentiometer Jumper cap Description: Select potentiometer 0 - 5V the adjustable voltage access circuit connecting the jumper cap AIN0 with INPUT0 AIN1 and the the INPUT1 connection jumpers cap, select the the photoresistor access circuit AIN2 INPUT2 connect the jumper cap, thermistor access circuit External analog signal input is needed, disconnect the jumper cap, the analog signal access AIN0 ---- AIN3 Please click the button below to download the material For more quantity, please contact me.(My skype: ada-yu2013) The Standard shipping we provide is non-regiested mail without a tracking. We provide free shipping with tracking number when your order is over $50. If your oder is below $50 and you need tracking, please contact me. Maybe you request 2x Mega 2560 ATmega2560-16AU Board (Arduino-compatible)+Free USB Cable Funduino 4pcs Real Time Clock Module for arduino AVR PIC 51 ARM I2C RTC DS1307 AT24C32 3pcs IC2272/2262 4 channel wireless remote control kits 4 key wireless remot NEW 5pcs new Breadboard 830 Point Solderless PCB Bread Board MB-102 MB102 Test DIY 9PCS NEW TEC1-12706 Thermoelectric Cooler Peltier 12V 60W 92Wmax good $ 34.0 + free shipping $ 8.6 + free shipping $ 11.5 + free shipping $18.0 +free shipping $ 28.88 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkfrog terapeak i000000 inkFrog Analytics
