110v Digital Pid Temperature Controller Thermostat+25a Ssr+pt100 Sensor Probe

US $500

Shenzhen , China
Jun 9th

Open on mobile:
QR code

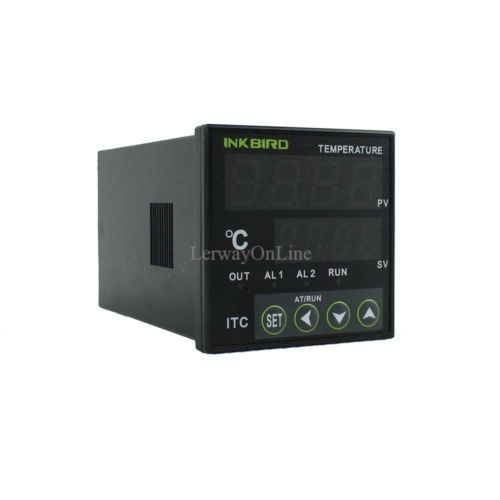

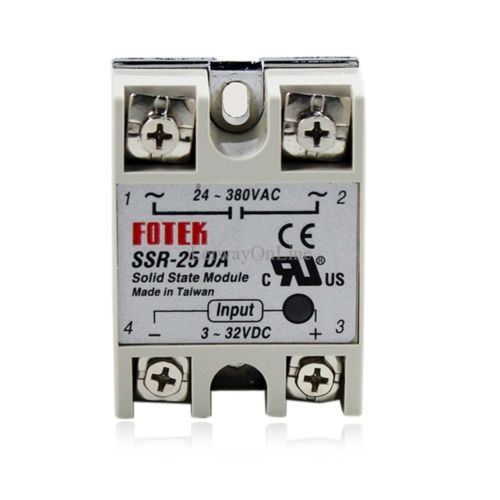

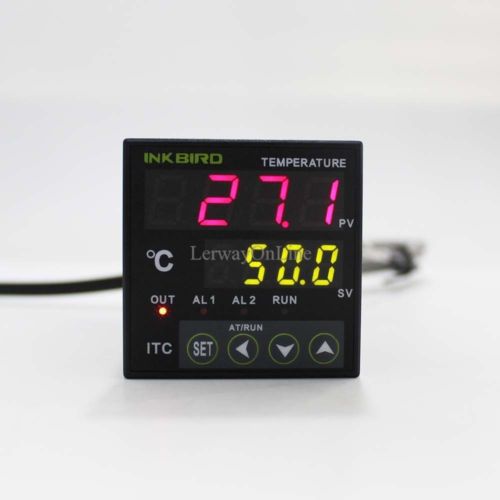

lerway100 Home About us View All Listings Feedback Items Description 110V PID Digital Temperature Controller Thermostat + 25DA SSR + PT100 Sensor Model Map:(ITC-100VL) Main Features: ?Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm ?Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100) ?Wide Controlling Range: -50?1300?C (K sensor) ?High Accuracy of Displaying and Controlling 0.1?C, Accuracy of Measurement ±0.2%FS ?PID and ON/OFF Control Mode, High Standard Self-adjusting Function ?Multiple Outputs and Alarm Modes ?Build-in Adjustable Digital Filter Reduce Interference ?The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability ? High Luminance, 0.39? height LED display, Anti-glare panel ?Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption Specification? ?Units: Degree Celsius (?1000?C) ?Power Supply Voltage: AC 100-240V ±10% 50/60Hz AC/DC 12-24V ±10% 50/60Hz DC 12-24V ±10% ?Operating voltage range? 85?110% Rated voltage ?Power Consumption? Approx. 5VA?100?240VAC? Approx. 4VA?12?24VAC? Approx. 3W?12?24VDC? ?Display Character: PV: 4 digital 9.9mm height Red LED Letters SV: 4 digital 8mm height Green LED Letters ?Display Accuracy: ±0.2%FS 0.1?C??1000?C??1?C??1000?C? ?Period of Sampling? 0.5S ?Temperature Compensation? 0-50?C ?Main Output? Relay Contact Output (ITC-100R): AC250V 3A (Resistive load) ON/NC. Alarm 1 AC250V 3A (Resistive load) ON/NC. Voltage Pulses Output (ITC-100V): DC 12V, 30mA; Alarm 1 AC250V 3A (Resistive load) ON/NC ?Life Expectancy of Relay: Mechanical?10,000,000 operations Electrical?10,000,000 operations ?Weight: Approx. 140g ?Environmental Conditions: -10?55?C?no icy or condensation?, RH 35-85% Humidity ?Storage Temperature: -25?65?C?no icy or condensation? ?Data Storage: 10year ?Mounting Method: Flush mounting and screw terminals PT100 Temperature Sensing For Temperature Controller . Temperature rang :-50-250 C Sensor Dia: ?3 X 20 Cable Length: about 50cm External Shielding: Insulated Shielding Internal Insulation:Fiberglass 25A SSR SOLID STATE RELAY for temperature controller About SSR: A solid state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load. The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor,silicon controlled rectifier, or MOSFET transistor to switch the load. Features: Reliable SMT technology High ultra insulation resistance over 50M?/500V DC High dielectric over more than 2.5KV Low enable current less than 7.5mA/12V DC, compatible with CMOS IC or TTL Low EMI/EFI & surge by zero cross trigger method High surge current over 410A/one cycle (60Hz) High surge voltage duration by snubber circuit Specifications: Load Voltage: 24-380VAC Load Current: 25A Input Voltage: DC 3-32V Package included: 1pcs x INKBIRD AC 24V Dual PID Digital Temperature Controller ITC-100VL 1pcs x pt100 sensor 1pcs x 25DA SSR SOLID STATE RELAY Hot sell Items INKBIRD ITC-100VH Temperature Controller 100-240V INKBIRD ITC-100VL Temperature Controller 12-24v INKBIRD ITC-100RH Temperature Controller 100-240V INKBIRD ITC-100RL Temperature Controller 12-24V ITC100VH Temperature Controller +K Sensor+25DA SSR 220V ITC100VL Temperature Controller +K Sensor+25DA SSR 12V ITC100VH Temperature Controller +PT100+25DA SSR 220V ITC100VL Temperature Controller +PT100+25DA SSR 12V Shipping Returns Payment Service Store Policy 1.We can only ship to your registered Paypal address, please be sure your Paypal address is correct. 2.Extraneous charges such as Import duties or taxes are the buyer?s responsibility and are not included in the item price or shipping charges. Please check with your country?s customs office to determine what these additional costs will be prior to bidding/buying ? unfortunately we cannot answer these questions for you. 3.We do our best to get items in your hands as quickly as possible and provide the below chart as a reference only. Delivery times may vary due to holidays, customs or intra-regional delays beyond our control. We are very confident that our product will meet and surpass your expectations, as your satisfaction is our utmost priority and goal. However, if any item is defective upon receipt, please contact us for the return address. Returns are accepted within 14 days after the buyer receives the item. Returned item has to be in its original condition. Buyer is responsible for return shipping costs. After receiving the return we will make a replacement depending on our available stock, if not available, a refund will be issued. We accept payment through eBay ONLY. If you do not have Paypal account, please registered with (http://www.paypal.com) Payment must be received within 5 days after auctions ended.Unpaid dispute will be filed to ebay for the non payable bidders. We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to respond. Dear buyers, we appreciate your business, if you are satisfied with our service, please rate the details of the transaction (Detailed Seller Ratings) on eBay with and leave us a positive feedback. Our system will automatically do the same for you. If you have any questions, please contact us first, simply leaving negative or neutral feedback can't solve the problem. inkfrog terapeak

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	INKBIRD
Country/Region of Manufacture	China
Model	ITC-100VL PID Digital Temperature Controller
UPC	Does Not Apply
MPN	Does Not Apply
