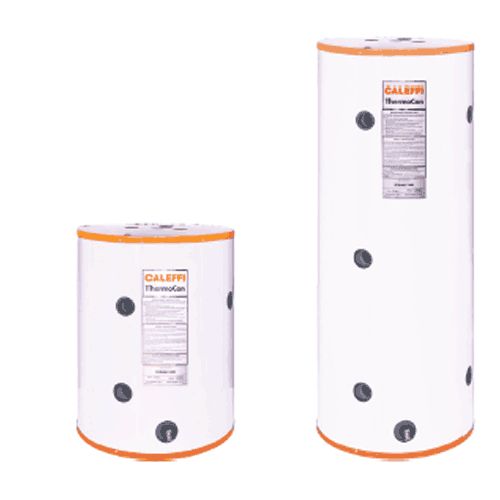

119 Gallon Hot Water Storage Thermal Buffer Tank, Porcelain Coated, Insulated

US $1,695.00

Snohomish, Washington, United States
Jan 29th

Open on mobile:
QR code

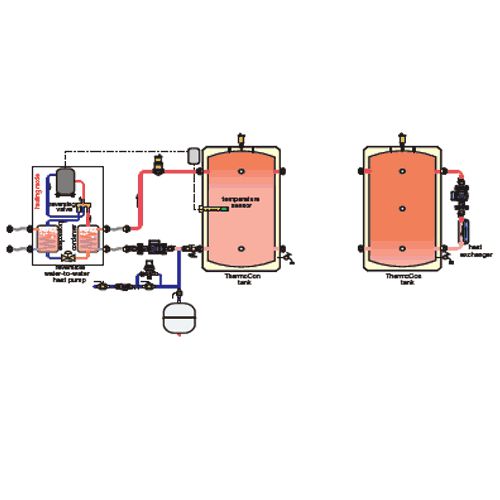

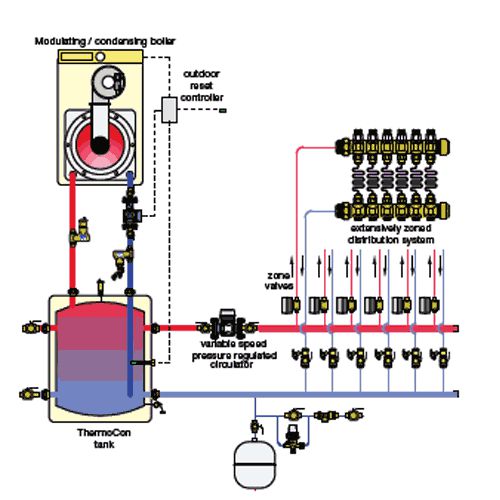

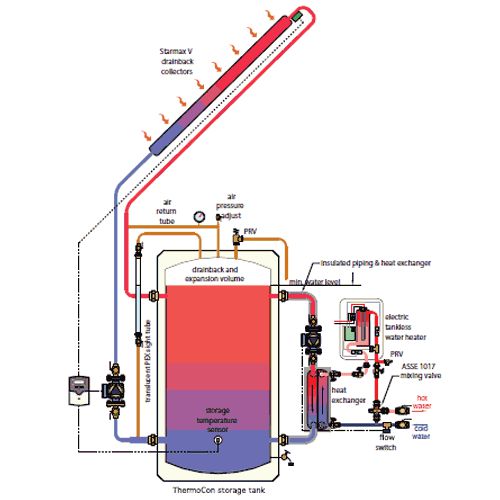

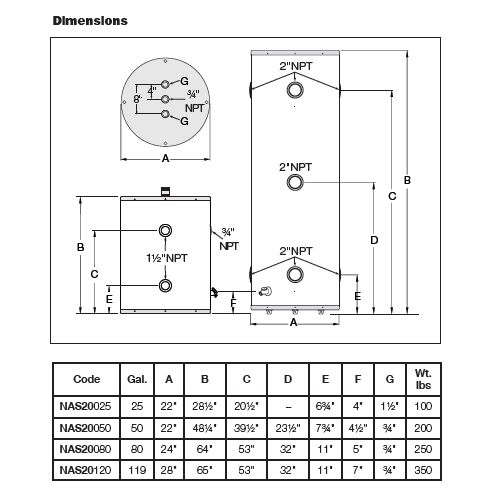

119 Gallon Hot Water Storage Thermal Buffer Tank, Porcelain Coated, Insulated (7) 2" and (3) 3/4" NPT female connections(no NX), 119 gallons, 350 lbs. Function ThermoCon™ buffer storage tanks are multi-use tanks designed to be used for wood fired boilers, solar and geothermal storage, plus in heating systems with low-mass boilers, chilled water systems and low-mass radiation. These fully-insulated, porcelain-coated steel tanks are ideal for chilled, hot water, or potable water applications. Short-cycling in boilers and chillers is a common problem that reduces the efficiency of hydronic equipment and shortens its lifespan. In addition, solar thermal and geothermal systems often need more thermal storage in order to keep up with the peak thermal demands of a building. ThermoCon™ tanks maximize the efficiency of any hydronic system by providing thermal storage and can also serve as a hydraulic separator to prevent pump conflict. In plumbing applications, it is a hot water storage tank for water that is heated from another source including a traditional boiler, wood fired boiler, heat pump or solar. Meets and exceeds CSA C309 requirements. Technical specifications Tank materials: porcelain glass coated steel Tank insulation: 2" non-CFC foam Tank external cover: powder-coated steel (20-24 ga.) Insulation thermal conductivity: R16 Connections: 25 gal. top (2) 1 1/2 " & (1) 3/4 " NPT 25 gal. side (4) 1 1/2 " & (1) 3/4 " NPT female 50, 80, 119 gal. top (3) 3/4 " NPT female 50, 80, 119 gal. side (7) 2" NPT female Max. working pressure: 150 psi (10 bar) Working temperature: -40 to 190?F (-40 to 90?C) Testing pressure: 300 psi (20 bar) Max. tank temperature: 180?F (80?C) Recommended max. delivery hot water temperature: 120?F (50?C) Reduction of Lead in Drinking Water Act Compliant: 0.25% Max. weighted average lead content. Reduction of Lead in Drinking Water Act Certified through Underwriters Laboratory (UL) in accordance with NSF/ANSI 372. Construction Details The ThermoCon™ 25 gallon tank is engineered with six (6) 1 1/2 " NPT connections. Two top connections can be piped right below a wall hung modulating / condensing boiler. One of the top connections has a 1 1/2 " NPT male thread with a dip tube to draw cooler water from the bottom of the tank. The other top 1 1/2 " NPT connection is female. The four side 1 1/2 " NPT female connections can be piped to the load. The ThermoCon™ 50, 80 & 119 gallon tanks are engineered with seven (7) 2" NPT connections. Two connections can be piped to the solar, boiler or chiller side and two connections can be piped to the distribution system. Two additional connections are 90 degrees from another which allows for positioning the tank into a corner with the piping at a right angle. The tank has one 2" NPT connection for connecting an external heat exchanger in the middle of the tank. ThermoCon™ NAS20120 SUMMARY 119 gallon buffer vertical insulated storage tank, porcelain glass coated steel internal walls, powder-coated steel, 20-24 gauge external cover and 2 inch thick non-CFC foam insulation (minimum R16) on sides, top and bottom. Maximum working pressure: 150 psi (10 bar). Testing pressure: 300 psi (20 bar). Maximum tank temperature: 180?F (80?C). Working temperature: -40 to 190?F (-40 to 90?C). Recommended maximum delivery hot water temperature: 120?F (50?C). Meets and exceeds CSA C309. 3 top connections ( 3/4 " NPT). 7 side connections (2" NPT). Please contact us at 1 888 205 7766 or (206) 452 3428 if you have any questions about our products. We love inquiries and we are here to help. Why You Should Buy From Us Our people at Green Planet Supply had been in the heat pump industry since 1982. We understand heat pumps and their application in the Geothermal, HVAC, Aquaculture and Agricultural industry. With thousands of heat pumps sold nationwide in the USA and worldwide, we believe that we have the experience and knowledge necessary to help you successfully complete your heat pump project. Your complete customer satisfaction before, during and after your purchase is our ultimate goal. We are available to all our customers by phone, Skype or email 7 days a week, 24 hours (but not in a row). Terms & Conditions IMPORTANT: For your safety all heat pumps and electrical equipment must be wired by a licensed electrician. Please visit: hellogreenplanet.com/termsandconditions.html to view a detailed listing of all our company Terms & Conditions. We encourage you to contact us before your purchase in order for us to better assist you in determining which is the best heat pump for your application. By using our website and purchasing from our company you are agreeing to our Terms & Conditions. Shipping & Returns We take pride in our shipping methods by investing more in better package material and additional shipping insurance at no extra cost to you. All orders will be shipped via freight companies with residential liftgate service when requested. Smaller orders will be shipped via UPS or USPS. If your unit arrives damaged, you must refuse delivery so that we can send a new unit right away and will take care of any shipping claims with the carrier. Our normal delivery time should not take longer than 10 business days unless noted in the Ebay listing. All custom orders require additional handling time and could take longer at the manufacturer's discretion. All geothermal units are custom made and consider "special orders" and cannot be returned or canceled. Any other non-special order items can be returned in their unopened box with 14 days and buyer will pay shipping both ways.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Model

ThermoCon NAS20120
