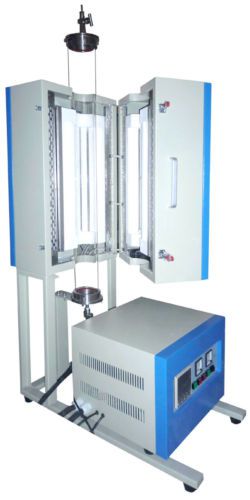

1200°c 80mm Od Vertical Lab Laboratory Split Vacuum Tube Furnace Tube Heater

US $5,990.00

Livingston, New Jersey, United States
Jan 30th

Open on mobile:
QR code

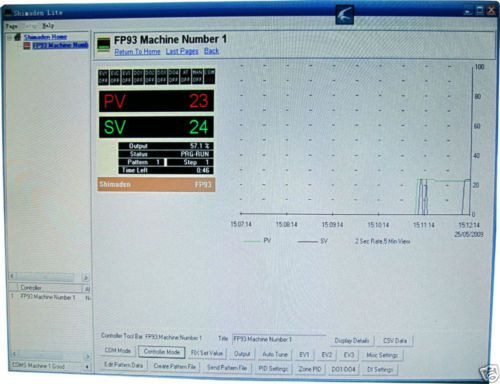

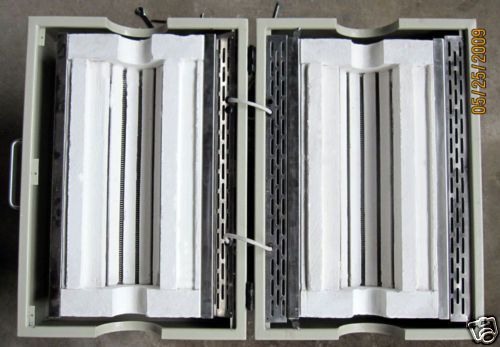

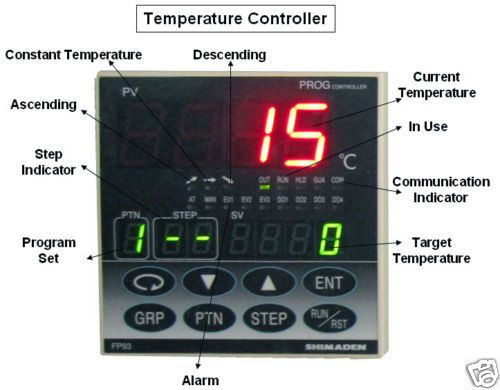

Home About Us Terms & Conditions Request a Quote Visit Us at the Shows Contact Us Store Pages Store Categories 1200°C 80mm OD Vertical Lab Laboratory Split Vacuum Tube Furnace Tube Heater Additional Details This listing is one brand new VTF1200 1200°C vertical split tube furnace with two quartz tubes (OD 80mm in diameter and 1000mm in length). VTF1200 series vertical split tube furnaces feature the famous Kanthal spiral wire coils embedded in alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by Shimaden 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant. Features Compact, portable and lightweight design. Split furnace chamber for fast and easy tube access. Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot. Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.) Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting. Built-in computer interface. Long life type K thermocouple. Safety Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions. Power failure protection resumes furnace operation right after the point of failure when power is reestablished. Specifications Tube Material Quartz Tube Size 80mm OD x 73mm ID x 1000mm L Maximum Working Temperature 1200°C Constant Working Temperature 0-1100°C Heating Element Kanthal resistance coil wire Thermocouple Type K Refractory Lining 1600 grade fiber alumina Temperature Controller Shimaden fp93 (made in Japan) with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) Maximum Heating & Cooling Rate < 30°C / min Heating Zone Length 17" Constant Temperature Zone Length 6" Temperature Controller Precision +/- 1°C (+/- 1.8°F) Vacuum Sealing Flange Kit Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks. Electrical requirements 208-240V AC, 50/60 Hz, single phase, 3.5kW Gas inlet/outlet 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) Unit dimensions 17 x 15 x 47" (L x W x H) Shipping Weight 400 Lb CE compliance Yes How to program Across International furnace controller Standard package Part description Quantity Part image VTF1200 vertical split tube furnace with L6-30P 250v twist-lock plug 1 pc Quartz tube 80mm OD x 1000mm L 2 pcs Stainless steel vacuum sealing flanges w/ pressure meter 1 set Stainless steel hook 1 pc Alumina ceramic thermal block 1 pair Thermal gloves 1 pair High temperature Al2O3 alumina crucible 5 pcs Spare fuse 1 pc USB/RS485 computer interface kit 1 set Furnace operation manual 1 pc Shimaden fp93 temperature controller manual & software 1 pc Return Policy Shipping Policy About Us Payment Policy Contact Us Return Policy Return Policy Shipping Policy About Us Payment Policy Contact Us Shipping Policy Return Policy Shipping Policy About Us Payment Policy Contact Us About Us Return Policy Shipping Policy About Us Payment Policy Contact Us Payment Policy Return Policy Shipping Policy About Us Payment Policy Contact Us Contact Us eBay Store Design by TruSky.com

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Across International
Model	VTF1200.80
