120v 250w Id 15.8mm Coil Heater Hot Runner Coil Heater

US $38.00

???, ???, China
Jan 30th

Open on mobile:
QR code

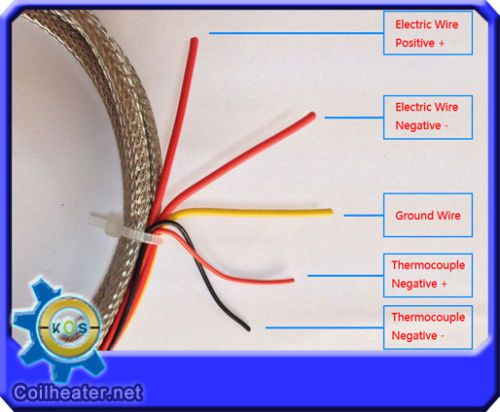

This price is for 1pcs 120V 250W hot runner coil heater (ID.15.8mm,Height 12.7mm), with Thermocouple K with Stainless Steel Braid. That is Free Shipping!!!!! This Coil heater full Description: I.D.: 15.8mm Height: 12.7mm Section Size: 3*3mm Voltage:120V Power:250W Thermocouple: type K; Stainless Steel Braided(Other sleeve material is available) Wire Length: 1000mm Warranty Period: 12 months We can help you to custom make any hot runner coil heater for your all request. Hot Runner Coil Heater Coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.It's high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses. TECHNICAL DETAIL: 1.Use condition: environment temperature -20~+60°C, Relative temperature <95% 2.Leakage current:<0.5MA 3.Insulation resistance:>=5MO 4.Ground resistance:<0.1O 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C Voltage 12~440V Wattage 200~3000W Heating section 2.2*4.2/3*3/3.4*3.4/3.5*3.5/4*4mm Thermal protection Build in Type "J" (or) "K" Thermocouple Operation Tempreature 0~800C Lead cable Fiberglass/fep/silicone/stainless steel braied/armor cable Dimension Tolerance Coil I.D + 0.1 to 0.2mm Coil Length + 1mm Unheated Length 35mm (Standard) AVAILABLE IN FOLLOWING CROSS SECTION: Round : 3.3mm,1.8mm,1.6mm Square : 3*3mm,3.3*3.3mm,4.5*4.5mm Rectangle : 4.2*2.2mm,4.5*2.5mm,3.2*1.8mm,1.3*2.3mm LEAD CABLE TYPE: 1. Stainless steel braided 2. Fiberglass braided 3. Silicone sheath 4. Armor sheath 5. Dual terminal 6. Dual terminal Teflon insulated TYPICAL LEAD ORIENTATION If you want to custom make any hot runner coil heater,please provide below info before you ordering.Please have to contact us before you making order.Thanks! 1. Diameter (mm) and length (mm) of heaters 2. Type of leads and length (mm) 3. Voltage and wattage 4. Content of the stamping if needed 5. Order quantity 6. Delivery date

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	KOS
Model	K
