12mhz Dds Function Signal Generator Sine/square Wave+ Sweep + Frequency Meter

US $2100

Shen Zhen, China
Jan 29th

Open on mobile:
QR code

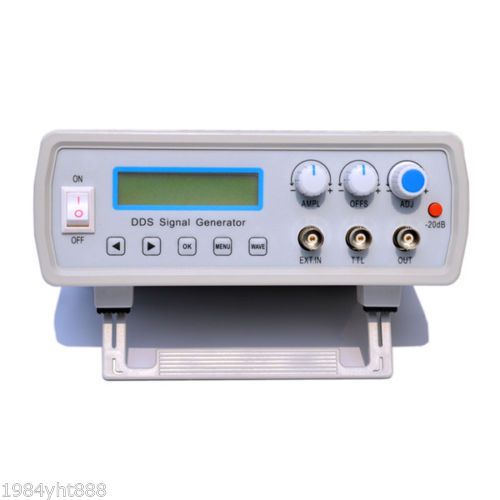

12MHz DDS Function Signal Generator Sine/Square Wave+ Sweep + Frequency Meter 12Mhz Panel DDS Function Signal Generator Module Sine/Triangle/Square Wave +Sweep Model: FDY2112S Manual download: http://www.divshare.com/download/25422768-3dc Introduction of the instrument This manual applies to each mode of FY21xxS series Direct Digital Synthesis (DDS) Signal Generator. In this series, the last two digits ?xx? represent the upper limit frequency value (MHz) of each mode. FY21xxS series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion ect.,with the function of TTL output and 60MHz frequency meter.It can output Sine wave, Square wave (Duty cycle adjustable from 1% to 99%) and Triangle wave (include sawtooth wave). Maximum effective output is greater than 9Vpp with resolution of 0.01Hz (10mHz). Output amplitude and DC offset can be adjusted continuously. It has two sweep functions, linear sweep and logarithmic sweep. the start and end frequency and sweep time can be set at will. It?s the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research. It has excellent technical indexes and function features: ?High frequency accuracy: ±5x10?6 ?High resolution: 10 mHz ?All range continuously adjustable, digital setting. ?High waveform accuracy: The output waveform synthesis by calculating function. ?3.3V TTL electric level output. ?Several different waveforms: Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave). ?Sweep function: Linear sweep, Logarithmic sweep. Starting and stop points can be set optionally. ?Save function: 10 sets of parameters defined by the users can be saved and loaded anytime. ?Operation mode: Button controlled, LCD display, digital setting, knob adjusted continuously. ?Output mode?Standard BNC port output. ?Highly reliable?Large scale integrated circuit, Surface mounting technology, reliable and durable. ?Frequency measurement?Frequency of internal / external signal can be measured through built-in 60MHz frequency meter. ? Signal Output function Output waveforms Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave) Output amplitude ?9Vp-p (signal output, no load)?MAX? ?20mVp-p (MIN) Output impedance 51?±10%(signal output) DC offset ±2.5V(no load) Frequency range 0.01Hz ~ 12MHz (FY2112S) Resolution 0.01Hz(10mHz) Frequency accuracy ±1x10?6 Frequency Stability ±5x10?6/3 Hours Sine wave distortion ?0.8% (reference frequency is 1kHz) Triangle linearity ?98% (0.01Hz~10kHz) Rise and fall time of square wave ?100ns Square Wave Duty range 1%~99%(digital control mode) u TTL Output function Frequency range 0.01Hz ~ 12MHz (FY2112S) Amplitude >3Vp-p Fan Out >20 TTL loads u COUNTER function Counter Range 0-4294967295 Frequency Meter Range 1Hz~60MHz Input Voltage Range 0.5Vp-p~20Vp-p u SWEEP function Sweep mode Linear sweep, Logarithmic sweep Sweep range fM1 to fM2 Sweep time 1s~99s u Others Display LCD1602 Save and Load Parameter M0-M9(M0: default load) Size 200mm(Length)x190mm(Width)x90mm(Height) Buzzer warning tone Can be turned On/Off by setting Production technology Surface mounting technology, large scale integrated circuit, reliable and durable Operation feature Button-controlled, Knob-adjusted continuously Conditions requirement Temp: 0~40? Humidity: ?80% ?Safety Notes 1?Before using this instrument, please check if the power supply is normal, to ensure the normal use and personal safety. 2?This instrument must be used in the technical index range. 3?Please do not change the instrument circuit arbitrarily, so as to avoid damaging equipment or endangering the safety. ?Warning and personal injury Do not apply the product in the safety protection device or emergency stop device, or any other applications that the product failure could result in personal injury, unless there is special purpose or use authorization. Before the installation and use, each parameter of the technical indexes in this manual should be referred to. If this suggestion is not obeyed, death or serious personal injury could be caused. In this condition the company will not be responsible for any compensation of personal injury or death, and all the company managers and employees and auxiliary agents, distributors, other personnel concerned will be released from any claim (including all the costs, expenses, attorney fees etc.) that may result in. Appendix Complete set of instrument and auxiliary FY21xxS DDS function generator / counter----------------1 set DC5V Power Supply-------------------------------------------1 pc Signal output cable---------------------------------------------1 pc User?s manual---------------------------------------------------1 book(PDF Format) download yourself inkfrog terapeak i000000 On Sep-21-14 at 18:24:13 PDT, seller added the following information:
