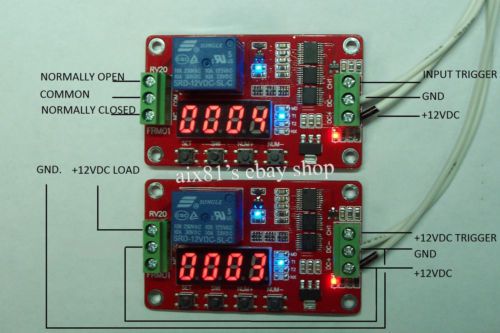

12V DC Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch, US $59 – Picture 0

12V DC Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch, US $59 – Picture 1

12V DC Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch, US $59 – Picture 2

12V DC Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch, US $59 – Picture 3

12v Dc Multifunction Self-lock Relay Plc Cycle Timer Module Delay Time Switch

US $59

HONG KONG, Hong Kong
Jan 29th

Open on mobile:
QR code

if you have a problem regarding your transaction, please contact us before leaving any type of feedback. Product Detail Item description: 100% Brand new and high quality. Note: Photos are for reference only, the packing does not include the 12VDC 1-CHANNEL H/L level triger relay module. if you need, you can it in below link, thank you. http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=181479686454#ht_3954wt_904 FRM01 multifunction relay control module, designed specifically for a variety of users with different needs, the use of micro-controller as the master unit, preset 18 kinds of functions, and can be based on user needs, customize and add other specific functions. Power relay module using genuine quality, high-voltage power transistor, red, blue signal lights, military-grade double-sided PCB board, cloth board to consider a comprehensive, stable performance, can be widely used in a variety of power control types of occasions. Features: (1) new upgrade to version 2.0, the module features the eight kinds before, increased to 18 kinds, to meet the needs of more applications; (2) increase the supply anti-reverse function, and does not take the wrong power supply is damaged module; (3) the use of top-quality high-voltage power supply modules, discrete power supply before replacing the system more stable and reliable; (4) increased 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds; (5) Increase automatic power saving feature, users can independently set. 1, the module function: Users can display the key and select the following 18 kinds of functions in one, you can set and save function parameters, you can also view the parameters of the current function of the time parameter sets the minimum 0.1 seconds adjustable accuracy better than 0.01 seconds, with regard to the specific Set operating instructions, can be obtained from vendors. Tips: Function 1-8 start at power on their own, functional 9-18 need high pulse signal (high duration shorter than 20ms, the same applies hereinafter) is triggered to start. Function 1: Timing Pick: After power-up, the time delay relay T1, T1 between 0.1 seconds -270 hours adjustable, CH1 interfaces to a high level pulse signal, repeat the above functions; Function 2: Timing off: When the power relay, time delay relay disconnected T1, T1 between 0.1 seconds -270 hours adjustable, CH1 interfaces to a high level pulse signal, repeat the above functions; Function 3: Re-timed pull off: After power relay to not pull, the delay time T1 reaches relay; pull off the relay T2 arrives, the delay time T1 and T2 in 0.1 seconds -270 hours adjustable from an interface to CH1 High pulse signal, repeat the above functions; Function 4: Then pull off the timing: After power, immediately pull the relay, the relay off after the delay time T1 arrive; arrive after disconnecting relay time T2, -270 hour in 0.1 seconds delay time between T1 and T2 Adjustable, CH1 interfaces to a high level pulse signal, repeat the above functions; Function 5: Infinite loop timing mode 1: After power relay to not pull, the delay time T1 reaches relay; pull off the relay T2 arrives, and then repeat the above condition, the delay time T1 and T2 at 0.1 Adjustable seconds between -270 hours, to a high level pulse signal CH1 interface, you can restart the above functions; Function 6: Infinite Loop Timing Mode 2: After power, immediately pull the relay delay time T1 reaches the relay off; arrive after disconnecting relay time T2, and then repeat the above condition, the delay time T1 and T2 in 0.1 seconds adjustable between -270 hours, to a high level pulse signal CH1 interface, you can restart the above functions; Function 7: Finite loop timing mode 1: Based on the function 5, increasing the number of cycles feature, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable, NX cycles adjustable between 1-9999 times, the interface to CH1 a high level pulse signal, these functions can be re-started; Function 8: Finite loop timing mode 2: 6 function on the basis of increased functionality cycles, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable, NX cycles adjustable between 1-9999 times, the interface to CH1 a high level pulse signal, these functions can be re-started; Function 9: Latching relay modes: CH1 interfaces to relay a high level pulse signal, the relay, to give a high level pulse signal relay disconnected. Function 10: Trigger relay modes: CH1 interfaces to a high signal relay, relay, high disappear, relay disconnected. Function 11: Pull trigger timing: After power relay does not act, CH1 interfaces to a high level pulse signal, the time delay relay T1, T1 in adjustable between 0.1 seconds -270 hours, a high-level interface to repeat to CH1 pulse signal, repeat the above function; Function 12: Trigger timing off: After power relay does not act, a high-level interfaces to CH1 pulse signal relay, the relay off delay time T1, T1 between 0.1 seconds -270 hours adjustable, repeat to CH1 Interface a high level pulse signal, repeat the above functions; Function 13: Pull the trigger and then disconnect the timing: After power relay does not act, the interface to a high level pulse signal CH1, arrived after the delay time T1 relay; pull off relay arrives after T2, T1 and delay time T2 is adjustable between 0.1 seconds -270 hours, repeat the interface to a high level pulse signal CH1, repeat the above functions; Function 14: Disconnect and then pull trigger timing: After power relay does not act, the interface to a high level pulse signal CH1, immediately pull the relay, the relay off after the delay time T1 arrive; arrive after disconnecting relay time T2, delay time between T1 and T2 -270 hours adjustable 0.1 seconds, repeat the interface to a high level pulse signal CH1, repeat the above function; Function 15: Infinite loop timing mode 1: After power relay does not act, give a high level pulse signal CH1 interfaces, the delay time T1 reaches relay; pull the relay off time T2 arrive, and then repeat the above state, the extension When the time between T1 and T2 -270 hours adjustable 0.1 seconds, repeat the interface to a high level pulse signal CH1, the above function can be restarted; Function 16: Infinite Loop Timing Mode 2: After power relay does not act, CH1 interfaces to a high level pulse signal, immediately pull the relay, the relay off after the delay time T1 arrive; break time T2 after reaching relay, then Repeat the above state, the delay time between T1 and T2 -270 hours adjustable 0.1 seconds, repeat the interface to a high level pulse signal CH1, the above function can be restarted; Function 17: Finite loop timing mode 1: 15 on the basis of functionality, increasing the number of cycles feature, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable, NX cycles adjustable between 1-9999 times, repeating to CH1 interface to a high pulse signal, you can restart the above functions; Function 18: Finite loop timing mode 2: 16 on the basis of functionality, increasing the number of cycles feature, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable, NX cycles adjustable between 1-9999 times, repeating to CH1 interface to a high pulse signal, you can restart the above functions; 2, module interface : Module control terminal: 3-wire interface, all interfaces are terminal, user-friendly 1, DC +: DC power positive (with 5V, 12V and 24V modules to choose from) 2, DC-: negative DC power supply 3, CH1: input detection interfaces, active high Relay outputs: 3-wire interface, all interfaces are terminals 1, NO: normally open relay interface, the relay before the vacant after short pull with COM1 2, COM: Common Interface Relays 3, NC: normally closed relay interface COM1 relay shorted before and after the pull-vacant Load capacity: normally open port maximum load capacity: DC 0-30V/10A, AC 0-250V/10A NC port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A Package Included: 1 x 12V Programmable Logic Controller PLC Delay Time Switch Multifunction Delay Relay module Payment 1. We accept PayPal only. 2. All major credit cards are accepted through secure payment processor PayPal. 3. Payment must be received within 7 days of auction closing. 4. If you have bought multiple items from me, you can send me one payment for all the items instead of paying for them individually. When you click the Pay Now button, eBay will automatically determine if there are other items you have won or purchased from me and will combine them for your review. shipping 1. We Ship to Worldwide, except Hong Kong, Italy, Nigeria..... 2. Items will be shipped within one business day on payment received. 3. Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days. 4. Delivery time depends on destination and other factors, it may takes up to 20 business days. Returns If you are dissatisfied with our item or service, then please follow the good eBay practice to contact us by ebay message before leaving : 1. Any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. 2. We always reply to ebay messages within 1-2 business days. If you do not get a response from us, then please check your ebay message. we only reply ebay message, no send email. 3. Original and return shipping fee will not be refunded or reimbursed under all circumstances. You must agree and acknowledge this term if you bid for this item. Therefore, please do not complain about having to ship back at your own expense. Feedback 1. Dear buyers, we appreciate your business, if you are satisfied with our service, please leave me a postive rate 2. When you rate the shipping time part please take international transit into consideration. 3. Your recognition will make us more confident to develop business and serve you better. 4. Our goal is to make sure you are a happy buyer and pleasant shopping with us 5. Please give us ebay message before leaving any 1 or 2 ratings, neutral, negative feedback or open any dispute. 6. We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem.Here is illustration shows how to leave me the feedback, please follow the step, thank you very much! And hope to see you soon. Contact us 1. If have any question, Please contact us by ebay message(no e-mail). Reply within 24hours. 2. We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. 3. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, 4. We may not be able to reply your emails immediately. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	FRM01
Working voltage	12V
Type	Programmable Logic Controller Relay module
User Instructions	English Version
