12v Light Control Switch Photoresistor Sensor Relay Module With Cable

US $7.08

Shenzhen, China
Jan 29th

Open on mobile:
QR code

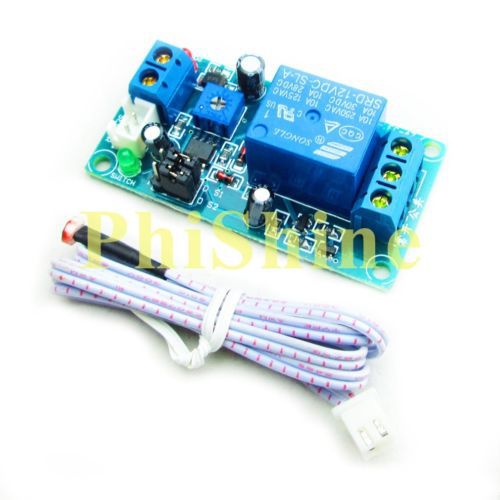

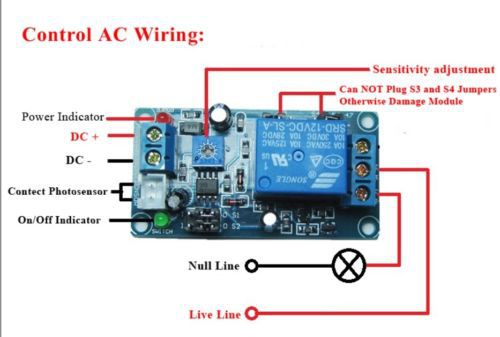

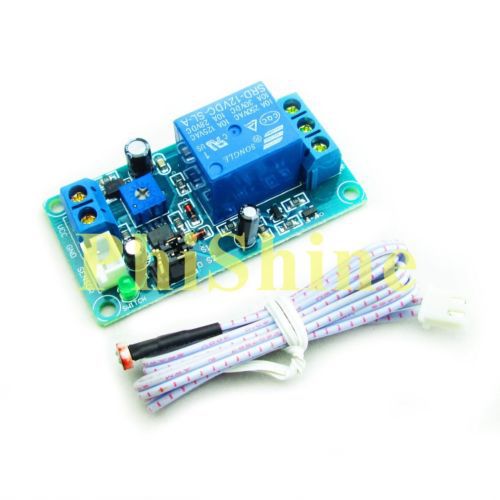

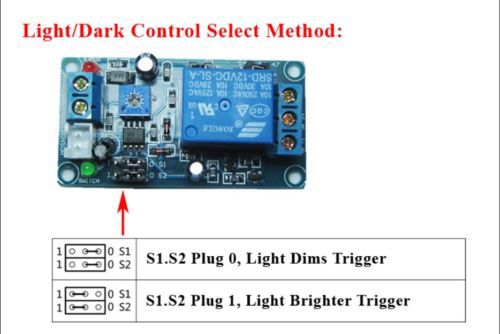

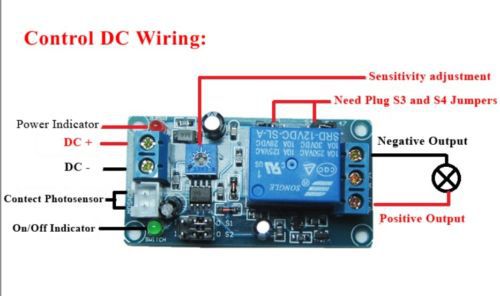

12V Light Control Switch Photoresistor Sensor Relay Module with Cable Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Description: 1. Stable and reliable quality ; 2. Power section with diode protection , and anti-interference filter capacitor chip capacitors and 7805 , providing a stable supply voltage and prevent reverse when burned module ; 3. Products with precision adjustable potentiometer, better adjust the sensitivity and delay time ; 4. With power indicator and relay instructions; 5. It’s with a power relay, 10A load current can be controlled ; 6. Comes with 50cm long photo resistor sensor ; 7. With a delay, it can adjust the delay time to solve problems when the light is flashing relay critical point. 8 Module size: 56.5*29.5*18.5mm Parameters: 1. Power: DC12V 2. Current: 15mA 3. Maximum power consumption 45mA 4 relay load capacity: 250V 10A (AC) 30V 10A (DC) 5 Ambient temperature: < 80 degrees Usage: 1. Products Terminal: First in DC + and DC- DC power supply connected to the corresponding ( such as 5V, 5V DC power supply is connected ) , if the relay is different from the control module or 220V AC power supply , please click the first connection a relay is controlled with the same power supply may be connected to the second method is more simple ; 2. Plug the sensor probe and pass on the DC power supply ( to ensure compliance voltage polarity is not reversed ) ; 3. Delay adjustment method : Plug in the time range jumper S2 is 1-20 seconds , no interpolation is 1-200 seconds delay potentiometer clockwise to adjust for longer, will be shorter counterclockwise , adjust the sensitivity when , be sure to be transferred shortest delay time delay of about one second ( counterclockwise to adjust around 10 laps) ; 4. Sensor sensitivity adjustment : the probe in the light of environmental sensitivity adjustment potentiometer, when the light relay will pull hand when the cover off the light relay delay , indicating that the module can work properly , the module will have sensing functions , such as to adjust the sensitivity , counterclockwise adjustment will be more sensitive sensors , micro- adjustable to bright light when it will start relay , CW will be more tuned in light of the time, the relay will not pull. 1. All items will be shipped out within 24 business hours upon cleared payment. 2. We only ship to the confirmed address provided by eBay and PayPal. Before paying, please make sure your address at eBay and PayPal are correct. 3. We are not responsible for extra fees such as import fees, duty, custom taxes or VAT that you may have to pay when your item arrives at your country. 4. Estimated delivery time: Estimated Delivery Time Country Carrier Time United States China Post ePacket 7-18 Business Days European Countries/Canada China post/Hongkong post 15-25 Business Days Brazil/Russia/Ukraine/Italy/Spain China post/ Hongkong post 25-35 Business Days 5. Shipping time may be fluctuated due to Courier company’s delay, Slow processing at local customs and some other uncertainties factors (holidays, strike events). If you did not receive your item beyond 35 days, please contact us immediately for further assistance instead of leaving negative feedback or open disputes. 6. We usually do not provide the tracking number for the shipments to worldwide (Excluding United States). However, if you buy bulk items together (Order amount more than USD50/EUR50) from my eBay store, we will provide you a tracking number. If you want a tracking number but orderamount less than USD50/EUR50, please contact me before purchasing and it needs you to pay additional fee USD1.5 /EUR1.5 for a tracking number. 1. We only accept payment via PayPal. 2. All payments must be completed within 7 days after the auction ends. (Attention: Unpaid transaction/purchasing will be automatically opened a UPI (Unpaid Item) case by eBay assistant, and the transaction/purchasing will be closed automatically after four days. 3. If you don't want the item or purchased by mistake after you won the bidding or purchased, please contact us to cancel the transaction, which will not result in a UPI. inkfrog terapeak i000000
