12V Power-OFF Delay Relay Module Delay Circuit Module 12v, US $110 – Picture 0

12V Power-OFF Delay Relay Module Delay Circuit Module 12v, US $110 – Picture 1

12v Power-off Delay Relay Module Delay Circuit Module 12v

US $110

Shenzhen, China
Jun 9th

Open on mobile:
QR code

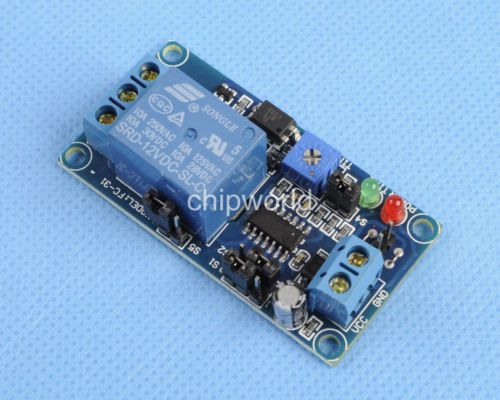

Click to Enlarge Click to Enlarge Product Name: NEW 12V Power-OFF Delay Relay Module Delay Circuit Module More Items In Our Store,Click Here! SKU: 2423 Parsts No. : Package: Brand: Quantity: 1 1 Channel Relay 2 Channel Relay 3 Channel Relay 4 Channel Relay 6 Channel Relay 8 Channel Relay Product Application: This module is a cyclic delay module, often used in the product life test, aging test automation equipment testing, PLC industrial controls, electronic development arduino robot, is extensively used. Products Introduce: 1. Using advanced quality timing chip control and accurate timing performance is far better than the 555 chip; 2. Has anti-film reverse protection diode, better protection module; 3. Relay is turned on and off times individually adjustable potentiometer function; 4. Can be accessed by a large current load (250V ac 10 A or 30V dc 10A); 5. Output relays have normally open, normally closed selection. Features: When the module is powered up, the relay immediately pull the pull-in time can be adjust by potentiometer 1-200 seconds (or so), the relay automatically enter the end of time is timing relay disconnected state off time can also be potentiometer adjustment 1-200 seconds (or so), the end of the off-time timing, and then into the pull-in state, followed by circulation, only power will stop working. Relay load capacity: 250V 10A AC the ideal (2500W power exchange) 30V 10A DC (300W ideal power DC) The practical application of the best power halved to use, beneficial products to prolong life. Wiring Data: How to wire: 1. Control communication connection: Note: Below is AC voltage control module connection, control the exchange can not be inserted jumpers S5, so when you plug in the S5, high pressure will be returned to the module, the module will be burned. the 1st method: When the module trigger delay, relay, often beginning with a common terminal connected, the device has power to work to end delay the release of the relay, the switch is off, the device stops working without electricity. The 2nd method: When the module trigger delay, the common terminal and normally closed terminal is disconnected, the equivalent of switching off the device does not work without electricity, delay the end of the common terminal and the normally closed terminal is turned on, the device has power and work, then this law applies the trigger delay interrupt power connection. 2. Control DC connection: Note: The figure is a 12V power supply control module connection to plug in jumpers S5, common cathode equivalent module power is turned on and the relay (in the circuit board specifically designed with this circuit). the 1st method: When the module trigger delay, relay, often beginning with a common terminal connected, the device has a 12V power while working to end delay the release of the relay, the switch is off, the device stops working without electricity. The 2nd method: When the module trigger delay, the common terminal and normally closed terminal is disconnected, the equivalent of switching off the device does not work without electricity, delay the end of the common terminal and the normally closed terminal is turned on, the device has power and work, then this law applies the trigger delay interrupt power connection. Data Download Any problem, please contact us freely 1) We accept PayPal payment ONLY. On Feb-10-15 at 00:25:30 PST, seller added the following information:
