14'reach Laser Mech Mechanisms Large Aperture High Power Co2 Delivery System Arm

US $3700

Las Vegas, Nevada, United States
May 8th

Open on mobile:
QR code

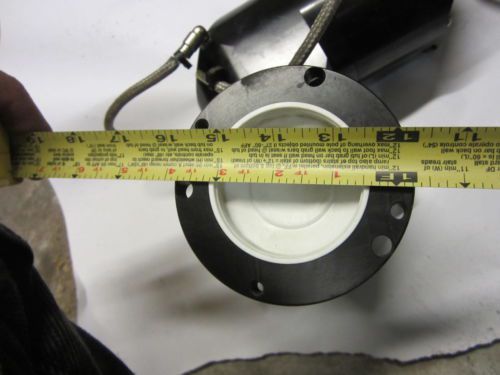

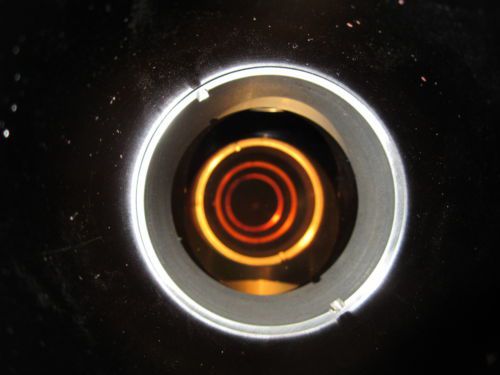

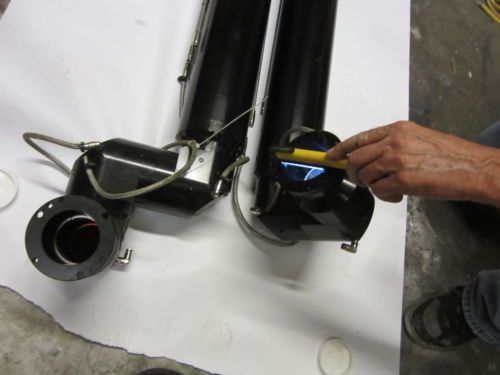

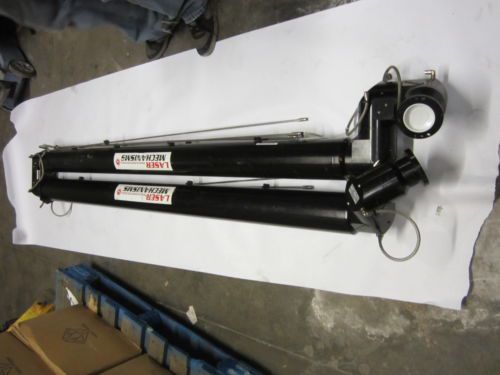

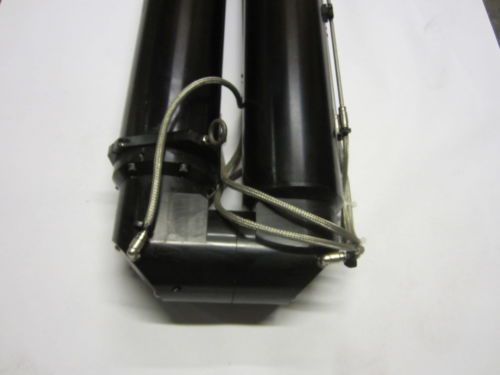

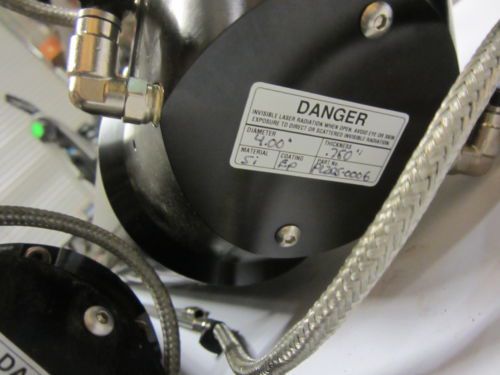

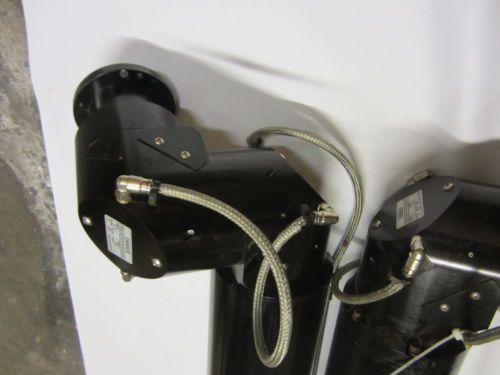

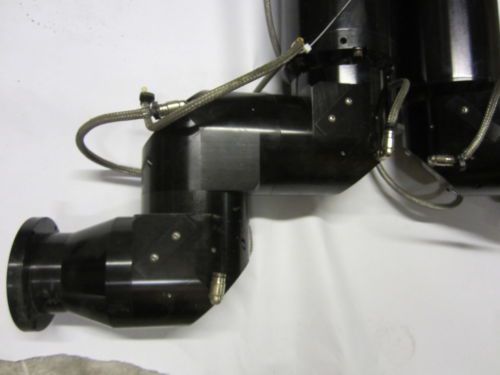

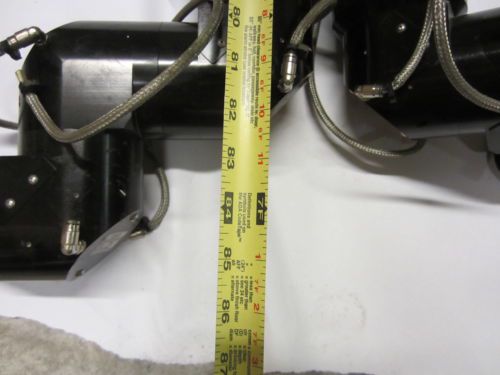

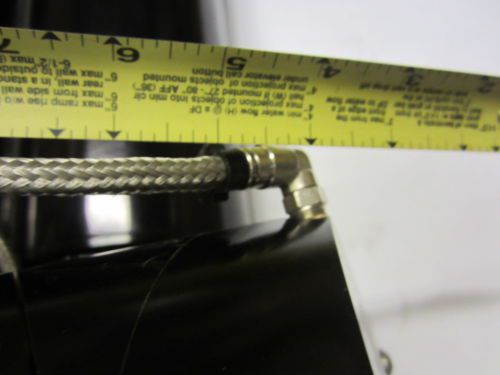

This auction is for a Laser Mechanisms Large Aperture CO2 laser delivery system with a full range of motion in 3 axis to an area 14 foot from the laser source in all directions (a spherical area within 14 ft from the laser source can be reached (of course your laser source will block some of this range)). This system was used to deliver high powered CO2 laser light and was formally controlled by a robot at a aerospace supplier that made turbine blades. This system is available because they closed down the facility where it was installed. Here is a link to the manufactures website for additional information. http://www.lasermech.com/largeAp.asp All mirrors are water cooled. There are total of 8 right angle mirrors here are some specs from the ends of the (water cooled) mirror assemblies. part number - PL205.0006 Diameter - 4" Thickness - 0.75" Material - SI Coating EP All of the mirrors have the same spec. The system has 7 rotary 4" couplers that move in 360 degrees as follows Laser input 5" to first rotary coupler 90 degree bend 5" to next rotary coupler 90 degree bend 7' to next rotary coupler 90 degree bend 10" to next rotary coupler 90 degree bend 7' to next rotary coupler 90 degree bend. 5" to next rotary coupler 90 degree bend 5" to next rotary coupler laser output The input and output arms are 10" long and the main shafts are 7' long each and their is a 10" coupler at the end that couples the two 7' long shafts The fifth picture is a picture of the output when a flash light is put on the other side of the assembly. The system includes the cooling water distribution tubing and flexible couplings. Shipping on this item will be $400 to the lower 48 states (this is an oversized item). We will build a custom crate and load at no charge if you would like to use your own carrier instead of paying our estimated shipping charge of $400. Please give me a call if you need additional information. I can provide additional pictures and take additional measurements for you. If you are in the Las Vegas area or just want to make a trip out to see this system in person we can pick you up at the airport show you the system and drop you back off at either the airport or a strip hotel. We are about 10 minutes from the airport. Thanks for considering us to supply equipment to your project. We have pallets full of other CO2 laser optical components available from this same site including slides, positioners, filters etc. This system would be VERY expensive if purchased new. Mark 206-399-9717

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...

Brand

Laser Mechanisms
