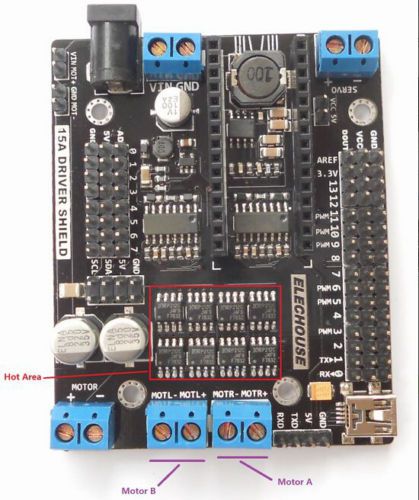

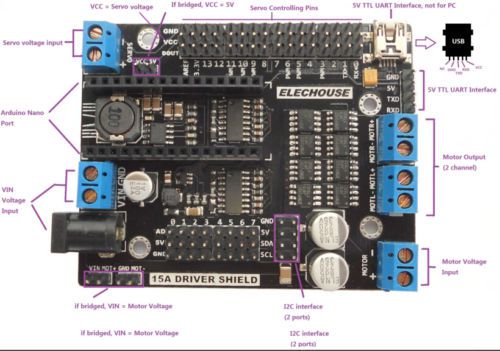

16A Arduino Nano Dual-Channel Motor and Servo Driver Shield -Arduino Compatible Still try to find a compact driver to build your robot? Here you get 15A Dual H Motor and Servo Driver for Arudino Nano. This driver board makes your Arduino Nano a powerful robot controller. Feature Single channel max 16A persistent working current One UART interface and 2 I2C ports breakout Plug-in Servo Controlling Pins Thickened Copper PCB helps heat dissipation Various optional power input Arduino-UNO-similar pin layout Arduino compatible mounting holes Compact dimention 76mm x 61mm Could also serve as sensor shield Arduino library make it very easy to control (click the picture to enlarge) Input voltage Motor Voltage Input:0V~24V VIN (or Jack) Voltage Input: 7V ~ 24V Servo Voltage Input: 0V~24V (working current <3A) DC motor driver control Channel Arduino Pins A D5 D6 B D3 D11 The 8 chips in the red box shown above are the heat source while the driver is working. We recommend you add external heat sink. Heating is the main factor restricting the max working current. Without external heat sink, the 16A working current would gets the chip at 70 centigrade.It would cause no problem in most cases. However, if you add external heat sink, the working current could gets as high as 20A. Servo Control There is no need to explain much about the servo control here for Arduino users. You could find plenty instruction document online. And here we introduce some pages from Arduino Simple Servo Control tutorial Servo library Sweep The Software Servo Library Just remember that the pins D3, D5, D6, D11 are occupied by DC motor driver in case that you need to control DC motor and Servo at the same time. Example Here is a DC control example Step 1 Connect 2 DC motors to Driver Board. Insert Arduino Nano to the Driver Board and connect it PC. Step 2 Download the Arduino Library and install it in Arduino IDE Step 3 Upload the example car_driver_shield_sample0 to Arduino Nano Step 4 Open Serial Monitor to send command. The baud rate is 115200 You could send the following command letter (case insensitive): w --> forward; s --> backward; a --> turn left; d --> turn right; e --> accelerate; c --> decelerate; z --> stop; Since those commands are sent via Serial interface, it would be very easy to control the motor wirelessly with this bluetooth module: EHB Serial Bluetooth Module V1 Product list: Driver board x1 . Accept credit or debit card and bank payments safely and easily with PayPal. •We ONLY accept payment via PayPal, other payment is not acceptable. •We ONLY ship the item to PayPal's Confirmed Address, please make sure it is correct when you pay. •Dear friends; After we receive your payment, we ship in 48 hours; Please be assured; Thank you Shipping information •Normally We would ship the product within 1-3 working days upon receipt of payment, our goal is: ship it as fast as we can. ?it takes 10-20 working days to USA, and 13-20 working days to Asia Countries, and 15-25 working days to Australia / Canada, and 12-25 days to South America, and 15-30 working days to Europe. Sometimes, it takes a little longer days to other remote cities than normal region. ? If the transport time is more than 30 days, and still have not received the items.You can contact your local post office to query the project location. If you have not receive a reply. Please contact us,the customer service staff will quickly solve the problem for you. •But sometimes international delivery is highly depended on the courier company and local customs/duties. If you do not receive your item on time, please contact us immediately for further assistance. •Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Please check with your country customs office to determine what these additional costs will be prior to bidding/buying. •We also provide international Expressed delivery such as EMS, DHL and UPS, extra shipping fees is needed, please contact us for the detail. Feedback: ? Customer satisfaction is very important to us; is your recognition of our work and support; This is our pursuit; thank you. ? We hope after you receive the commodity, you can leave us a positive feedback. Certainly we will also leave you a positive feedback too! ? We hope you will give us FIVE STARS ????? (5 score) on all of the Detailed Seller Ratings ? Negative feedback is not the solution to the problem; any dissatisfied please contact me, communication. Please be assured; we must strive to resolve; Return Policy • We do not responsible for any custom duty or import tax. • Returns for exchange are permitted and must be initiated by the buyer within 14 days of receipt. • All return items must be in their original condition. Return shipping and handling charge will be at the buyer's expense, Exchange & Refund will be processed after original products are returned (Shipping & handling fees are non-refundable).
