16kw Solid State Induction Heater Furnace Controller Gold Silver Melting Casting

US $4,790.00

  • Livingston, New Jersey, United States
  • Jan 30th

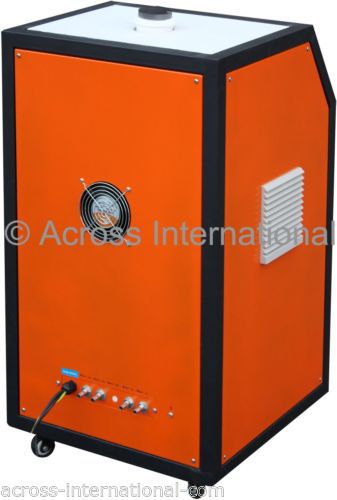

This listing is for a brand new 16KW mid-frequency 30-80KHz induction heater with built-in PID temperature controller (item# IH16P), manufactured by Across International. Note: This model is only available in 460-480 volt three phase. Mid-frequency induction heaters are the simplest in terms of design and implementation. With their low cost of ownership and maintenance, they are the most popular and reliable machines. Across International IH16P series mid-frequency induction furnaces are designed to operate between 30 and 80 kHz, they are great for precious metals melting and casting at an ultra fast speed (3-5 minutes). Main Features Ease of use: just plug in the power and connect the water cooling system, our simple instruction allows you to use the heater in 15 minutes. Digital PID temperature controller built into the unit which will prevent you from vaporizing the gold, keeping more money in your pocket. Designed for ultra fast melting (normally in 3-5 minutes). Light weight, portable, instant heat and up to 90% energy savings. Precise control with digital temperature and current displays. Graphite crucible with jacket included for immediate use. ISO 9001:2008 registered manufacturer. We provide sample melting test in our New Jersey facility. One year warranty and lifetime US-based parts and service support. Safety Features Overvoltage protection: machine shuts down when input voltage is over 495V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 495V. Overheat protection: if sensor detects heat radiator temperature is over 55°C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself. Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs: One of the machine parts becomes overheated Interfering signal detected Short circuit between work pieces and induction coils Machine malfunctions Induction coils touching each other Input voltage is too low CAUTION Always wear protective gear and goggles when operating the machine. Crucibles must be covered all the time during operation. Across International is not responsible for any damage caused by misuse. Do not run no-load operation for a long period of time, it might cause damage to the machine. Circulating water must be pure, clean and below 113°F (45°C). Machine must be grounded properly all the time during operation. Do NOT use single-turn coil if coil diameter is smaller than 4 inches, it will cause high frequency damage to the machine. Thread tape (or related material) is absolutely prohibited during installation of induction coils. Specifications  Max. input current  20 A (25A 3-phase circuit breaker required)  Power  460VAC, 50/60Hz, three-phase  Power distribution cord  10-gauge 4-conductor Max 25A (10/4 SOOW for 3 PH system)  Maximum temperature  2192°F (1200°C)  Output frequency  30-80 KHz  Heating/retaining current     200-1000 A (displayed on control panel)  Maximum power  16 KW  Duty cycle  80%  Air cooling    Rear fan  Water pressure  >= 29 PSI (0.2 Mpa) you may use tap water   and water pump (>1/4HP & >240 Gph)  Water flow  > 1.6 gallons (6 liters) per minute  Water temperature  < 100°F (38°C)  Weight  Unit: 140 Lb, shipping: 180 Lb  Crucible  340ml graphite crucible w/ silica liner (60mm ID, 143mm height)  Max. melting capacity  10 Lb of gold, 5 Lb of silver or copper alloy.  See melting point of various metals and alloys Standard package   Part description             Quantity        Part image     IH16P induction melting furnace 1 pc  Spare induction coil  1 pc  340ml graphite crucible with silica liner 2 pcs  Stainless steel hose clamp  4 pcs  Fuse 3 pcs  Operation manual  1 pc
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Across International
Model IH16P
