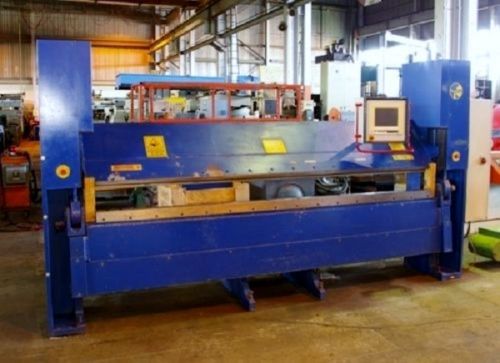

1997 Powerfold Cnc Servo Hydraulic Folder Machine / Brake

US $19,900.00

Chicago, Illinois, United States
Jan 30th

Open on mobile:
QR code

POWERFOLD ( HERA ) CNC SERVO HYDRAULIC FOLDING MACHINE MODEL 1011L / NEW 1997 MAXIMUM FOLDING LENGTH -------------------- 122" MAXIMUM CAPACITY, FULL LENGTH ------------- 11 GA. MILD STEEL MAXIMUM CAPACITY, FULL LENGTH ------------- 14 GA. STAINLESS STEEL MAXIMUM FOLDING SPEED --------------------- 65 DEG./SEC. FOLDING BEAM REPEATABILITY ---------------- +/- 0.1 DEG. MAXIMUM FOLDING ANGLE --------------------- 135 DEG. VERTICAL FOLDING BEAM ADJUSTMENT ---------- 2" MINIMUM INSIDE BEND RADIUS ---------------- 1.25 X MATERIAL THICKNESS MINIMUM FLANGE HEIGHT --------------------- 6 X MATERIAL THICKNESS MAXIMUM CLAMPING BEAM OPEN HEIGHT --------- 14" MAXIMUM CLAMPING PRESSURE ----------------- 24 TONS MAXIMUM HEM CAPACITY, FULL LENGTH --------- 18 GA. CLAMPING BEAM SPEED UP -------------------- 4"/SEC. CLAMPING BEAM SPEED DOWN ------------------ 3"/SEC. BACK GAUGE RANGE, RIGHT SIDE -------------- 60" DEPTH BACK GAUGE RANGE, LEFT SIDE --------------- 120" DEPTH MAIN DRIVE MOTOR -------------------------- 10 HP A.C. APPROXIMATE MACHINE WEIGHT ---------------- 9,500 LBS APPROXIMATE MACHINE DIMENSIONS ------------ 177"(LR) X 92"(FB) X 84"(H) EQUIPPED WITH --- PC BASED TOUCH SCREEN GRAPHIC CONTROL L-SHAPED ELECTRIC BACK GAUGE AND SHEET SUPPORT SINGLE SELECTABLE BACK GAUGE FINGERS BALL CASTERS FOR BACK GAUGE HOLDING RAIL WITH PNEUMATIC POWER CLAMPING FOR SEGMENTED BEAM TOOLING FULL SET OF 6" HIGH SEGMENT TOOLING COLOR LCD DISPLAY SCREEN AUTOMATIC FOLDING BEAM ADJUSTMENT FEATURE HIMES MACHINERY LLC. PHONE - 888-803-2496 --- www.HimesMachinery.com FINANCING AVAILABLE - CLICK LINK / FREE INSTANT QUOTE http://www.crestcapital.com/himesmachinery
