(1pc) Dac8426fs Dac 4-ch R-2r 8-bit 20-pin Soic

US $29.95

Granbury, Texas, United States
Jun 9th

Open on mobile:
QR code

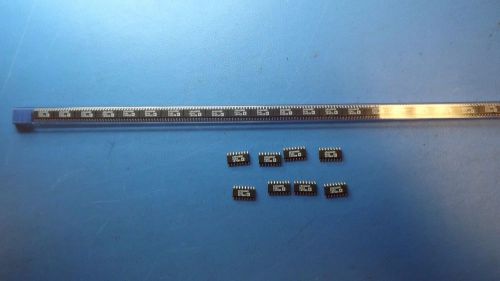

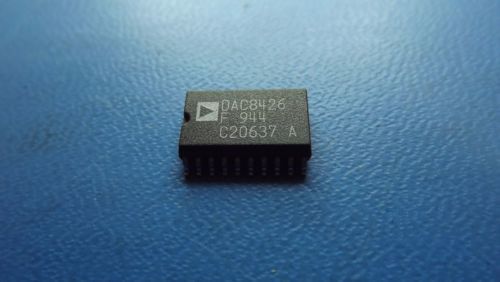

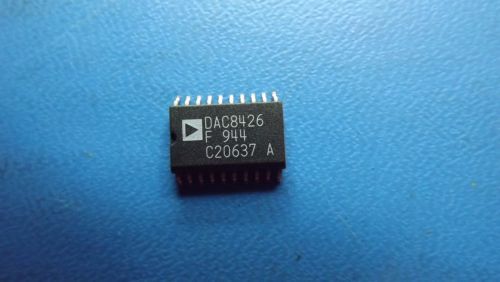

THIS LISTING IS FOR (1PC) OF DAC8426FS BY ANALOG DEVICES. DAC 4-CH R-2R 8-Bit 20-Pin SOIC **WE HAVE 3 DIFFENT DATE CODES IN STOCK. 9944, 0015, 0037 ***WE CAN NOT GUARANTEE YOU WILL RECEIVE THE SAME AS PICTURED. PART INFORMATION DAC8426FS PART DETAILS & PARAMETRIC EU RoHS Not Compliant Maximum Operating Temperature (°C) 85 Output Type Voltage Number of DAC Channels 4 Converter Type General Purpose Architecture R-2R Resolution 8bit Maximum Settling Time (us) 3(Typ) Conversion Rate 333ksps Integral Nonlinearity Error ±1LSB Digital Interface Type Parallel Minimum Operating Temperature (°C) -40 Power Supply Type Single|Dual Minimum Single Supply Voltage (V) 13.5 Typical Single Supply Voltage (V) 15 Maximum Single Supply Voltage (V) 16.5 Typical Dual Supply Voltage (V) -5/15 Packaging Tube Mounting Surface Mount Package Height (mm) 2.35(Max) Package Length (mm) 13(Max) Package Width (mm) 7.6(Max) PCB 20 Standard Package Name SOIC Supplier Package SOIC W Pin Count 20 Lead Shape Gull-wing

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	ANALOG DEVICES
MPN	DAC8426FS
