1pc Hp350 Rf Power Meter 1-500mhz -80~10 Dbm New

US $42.98

Beijing, China
Jan 29th

Open on mobile:
QR code

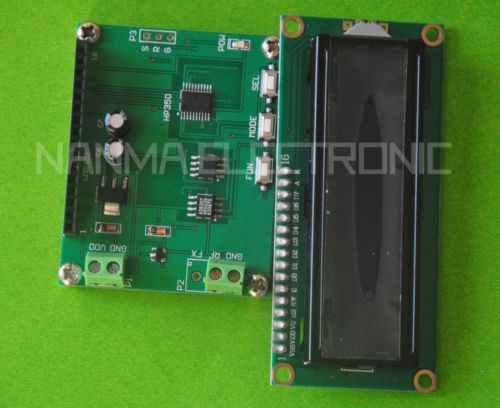

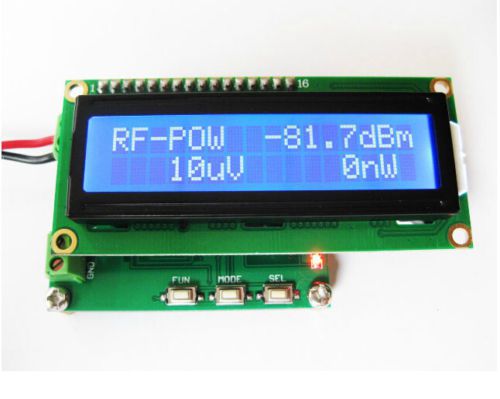

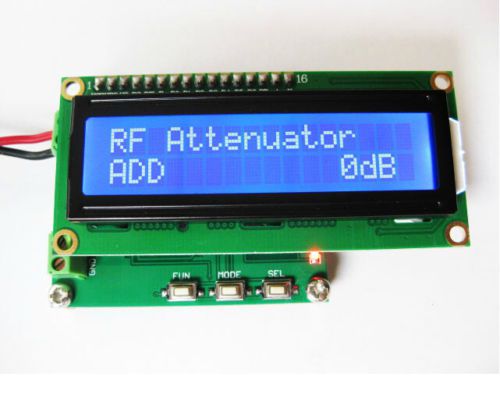

1pc HP350 RF Power Meter 1-500Mhz -80~10 dBm NEW Description: HP350 is a RF power meter, based on continuous compression technology fully monolithic 500 MHz demodulating logarithmic amplifier , the logarithmic amplifier provides 92 dB dynamic range, even at frequencies up to 100 MHz can still provide error is ± l dB dynamic range of 88 dB. The meter button to complete the operation, advantages: simple structure, easy to use, stable performance, reliable, high sensitivity and measurement speed and so on. Application: RF power measurement Meter calibration Technical Data Sheet: Measuring power range: -80 ~ +10 dBm (external RF attenuator can be extended to 100dBm) Measuring Power Resolution: 0.1 dBm Measurement frequency range: 1 ~ 500 MHz Measuring power: 1nW ~ 2W Voltage: 7 ~ 12 VDC Working current: <50 mA Working temperature: -40 °C ~ 65 °C Storage temperature: -40 °C ~ 65 °C Size: 55mm * 45mm * 10 mm Interface display and operating instructions: Unit Description: dBm; Key Description: FUN: function keys; MODE: set changer interface; SEL: Self plus key or self minus key ; Display measurement data Interface display font: The first line "RF-POW -80.3 dBm" The second line "20uV 0nW" Note: the dBm value signal are shown, input voltage, the input power. Set the RF power attenuation values Interface display font: The first line "RF Attenuator" The second line "SUB 000dB" Key operation: FUN: function keys; (select plus or minus direction) as shown SUB Subtract, shows ADD a plus. (Long press FUN key to save the setting values in dB) SEL: Self plus key or minus key to Self; Note: External different RF power attenuator, set the corresponding attenuation coefficient reads the correct power parameters. Wiring: P1 connection definition: VDD :power supply positive (7V ~ 12V) GND: power supply negative P2 connection definition: FX :Unused RF:RF signal input GND: electronic scales power supply negative Package 1pc HP350 RF Power Meter 1-500Mhz -80~10 dBm

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

UPC

HP350 RF Power Meter 0-500Mhz -80~10 dBm
