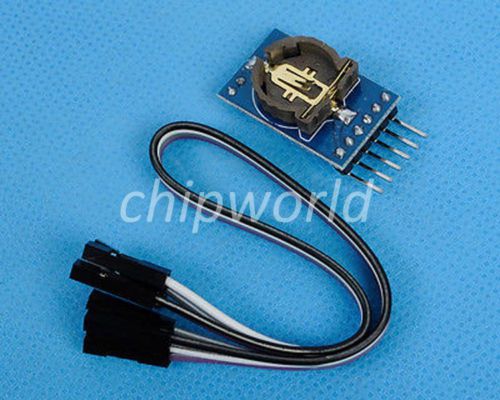

1pcs Ds1302 Clock Module Real-time Clock Module Include 5 Lines Without Battery

US $1.99

shenzhen, China
Jun 9th

Open on mobile:

Product Name: DS1302 Clock Module include Battery and 5 Lines NEW More Items In Our Store,Click Here! SKU: 1711 Parsts No. : Package: Brand: Quantity: 1 DS1302 DALLAS company launched the trickle charge clock chip contains a real-time clock / calendar and 31 bytes of static RAM, and communicate via a simple serial interface with the microcontroller. The real-time clock / calendar circuit provides seconds, minutes, hours, day, week, month, year, and can automatically adjust the monthly number of days and the number of days of the leap year. Clock operation by the AM / PM indication, the decision to adopt a 24 or 12-hour format. Between the DS1302 and the microcontroller can simply synchronous serial communication only used three lines of: (1) RST Reset (2) I / O data line (3) SCLK Serial Clock. Clock / RAM read / write data to a byte or character groups of up to 31 bytes of communication. DS1302 working when the power consumption is very low to maintain data and clock information when the power is less than 1mW DS1302 main performance indicators: ? real-time clock can be calculated before 2100 seconds, minute, hour, day, week, month, year capacity, as well as leap year adjustment capacity ? 31 8-bit temporary data storage RAM ? serial I / O port, making the least number of pins ? wide range of operating voltage 2.0 5.5V ? Operating Current 2.0V, less than 300nA ? read / write clock or RAM data when there are two kinds of transmission mode in a single byte transfer and multi-byte the transmitted character group way ? 8-pin DIP package or an optional 8-pin SOIC package surface mount ? simple 3-wire interface ? Vcc = 5V TTL compatible ? Optional industrial temperature range of -40 to +85 ? dual supply pipe for the main power and backup power supply Download Note: due to Customs policy, we may not able to arrange the battery shipped together for you. Hope for your understanding. Any problem, please contact us freely 1) We accept PayPal payment ONLY. On May-04-15 at 01:47:05 PDT, seller added the following information: inkfrog terapeak inkFrog Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
Model	Real-Time Clock
MPN	Does Not Apply
Country/Region of Manufacture	China
UPC	Does not apply
