1pcs Nema23 270 Oz-in Stepper Motor&driver With 256 Microstep And 4.5a Current

US $61.99

Changzhou,Jiangsu, China
Jan 29th

Open on mobile:
QR code

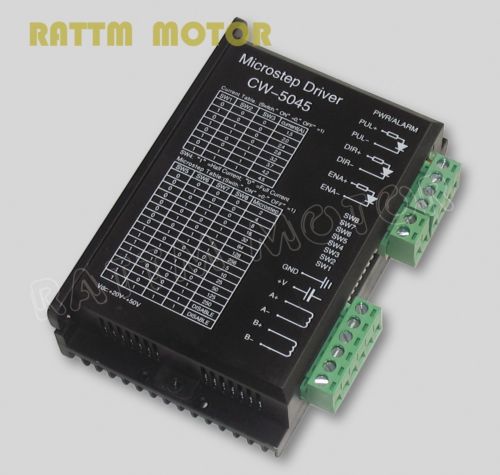

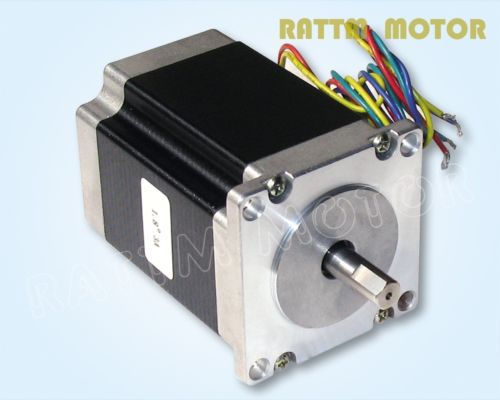

Package include: 1 x CW5045 stepper motor driver 1 x 23HS8430 stepper motor English user manual for breakout board and stepper motor driver will send by email. 1. CW5045 high microstep stepper motor driver DC power input type:24V~50VDC Output current:1.3,1.8,2.3,2.7,3.2,3.7,4.2,4.5A Mircostepping:1(1.8?),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256 1/5,1/10,1/25,1/50,1/125,1/250 Protect form : Overheated protect, lock automatic half current ,error connect protect ps2V3y0Y5u1JM Working environment:Temperature-15-40deg Humidity<90% It is fit for NEMA17-23 two and four phase stepper motors whose current is small than 4.5A,it also can fit for small length NEMA34 two and four phase stepper motors. 2. Stepper Motor Technical Specifications Part No.: 23HS8430 Frame Size: NEMA23 Step Angle: 1.8 degree Current: 3.0A/phase Resistance: 1.0 Ohm/phase Inductance: 3.5 mH/phase Holding torque: 180N.cm/18kg-cm 270oz-in Rotor inertia: 440g-cm2 Number of wire leads: 4 Weight: 1.05 kg Length: 76mm Shaft : single shaft,8mm diameter,21mm length with double 8mm flat length Note: if you need double shaft pls contact us,we can produce. Wiring: RED: A+ GREEN: A- YELLOW: B+ BLUE: B- Shipping Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately We ship to worldwide Delievry time( Airmail Packets) USA round 7-10business days. UK,Candana,Australia,New Zealand,Asia 15-25 business days EU(Germany,France,Spain,etc) 10-25 business days South America,other countries 20-35 business days When weight less than 2kgs,we usually ship by Singapore Air Post which will take round 10-15 business days. some areas may be later due to variation of postal service in different areas,if above 2kgs we can ship by DHL/UPS/EMS which need confirm by us All items will be shipped within 1-3 business days upon receipt of payment Payment We accept paypal payment,all Paypal must be confirmed(shipping and billing address must match and correct) Payment must be made within 48hours of the auction end time Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Problem&Feedback Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it. We are a new member in ebay now,and need understand both of sides Pls email us before you want to leave any negative feedback Refund When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos Any reason required for all refund. Item must be in it's original condition and no physical damage. Buyer responsible for all shipping cost Contact us Email:MSN:sale2@rattmmotor.com; MSN: tonyswj@hotmail.com Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again Customer’s satisfaction is very important to us.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RATTM MOTOR
Driver	4.5A 256 microstep
Model	CW5045 / 23HS8430
Holding Torque	270 Oz-in/ 180N.cm
MPN	http://hgauto.en.alibaba.com/
Lead wire	4pcs
Country of Manufacture	China
Driver input voltage	20-50VDC
Motor	270oz-in stepper motor
