1pcs New 2x18w Tda2030a 2.0 Double Track Tda2030a Amplifier Best

US $6.45

China, China
Jan 29th

Open on mobile:
QR code

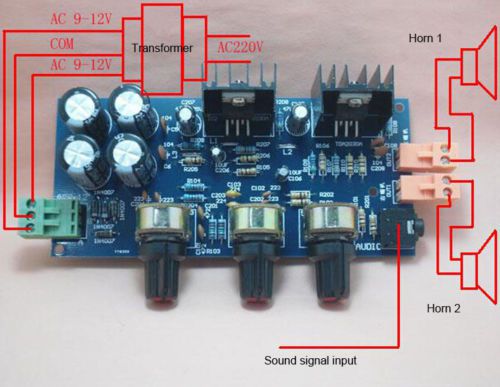

TDA2030A Amplifier Description Working voltage: communication Double 9 ~ 12 v Maximum output power: left and right channel 18 w x2 (horn), 8 of Output impedance: 8 o PCB size: 12 * 5.5 cm This power amplifier template adopted two ST's TDA2030 power amplifier IC, the whole circuit design is reasonable, beautiful and easy, noise, high cost performance, single power supply, input voltage of alternating current (ac) 9 v to 12 v.Components layout is reasonable, strong power (18 wx2), almost no static noise, good listening, less peripheral components, easy to install, very suitable for home audio system modification or add, widely used in all kinds of active speakers. This circuit consists of two channels around, including W101 as the volume potentiometer, W102 bass adjust potentiometer, W103 for high adjust potentiometer.The input audio signal after the volume and tone control by the C106, C206 sent to TDA2030 integrated audio power amplifier power amplifier.State of the working circuit in the dual power supply (OCL), audio signal by TDA2030 1 foot (synthetic input) input, after power amplification of the signal output from 4 feet, including R108, C107, R109 negative feedback circuit, it can make circuit stable work, R108 and R109 magnification ratio determines the TDA2030 communication, R110, C108 and R210 and C208 high-frequency vibration cancellation circuit, to suppress high frequency self-excited oscillation may occur. Packing List: 1Pcs New 2x18W TDA2030A 2.0 Double Track TDA2030A Amplifier DIY Kit Payment 1.We accept Paypal only. 2.Please confirm your ebay shipping address is exact after payment. 3.If your purchased is more than £30.00, please offer your phone number with shipping address. Delivery details 1.All item will be shipped by Airmail post within 1 business days. It takes approximately 15-25 days (USA ,CA,AU,UK,DE).other country 15-35 days. 2.Express by EMS ,it must add 25 USD shipping fee, it takes 5-10 workdays for delivery.If you need other Epxress(DHL,Fedex.UPS etc.),please contact us to talk about shipping fee. 3.Once you purchase, please DONOT leave negative, neutral feedback or open any case if you have not received item in 30 days, because we have mentioned the shipping time repeatedly. Contact us ???? 2 1.We offer retail and wholesale services. We can provide products in accordance with your requirements. If you have any questions or something to consult, please send us ebay message. 2.All messages will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your message and we will reply to you as soon as possible. 3.Our aim is to provide Top Level Customer Service, Business hours are 9am to 6pm Beijing time (+8 GMT), Monday to Friday. Engineered for professional eBay sellers!
