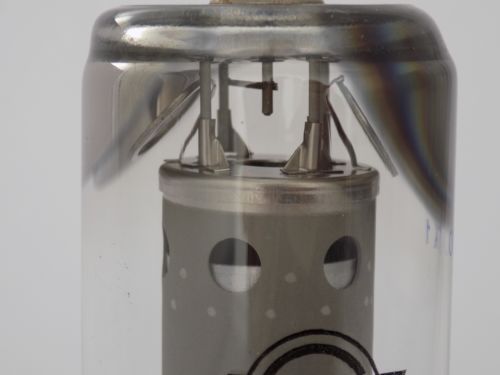

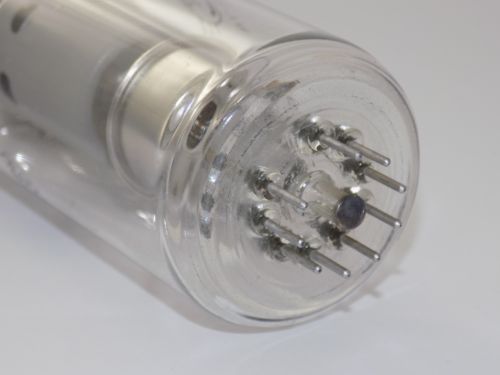

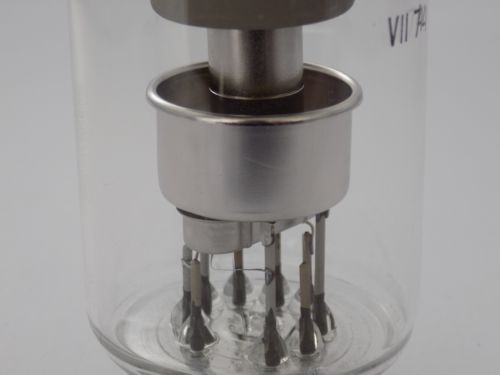

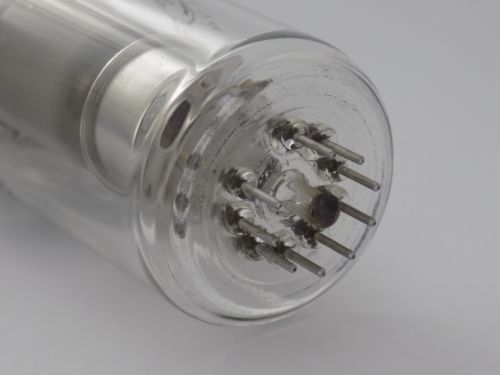

1x GP-5 glass-envelope beam power triode Transmitting Tube = GP5 ED500 6BK4 ??-5, US $6.26 – Picture 0

1x GP-5 glass-envelope beam power triode Transmitting Tube = GP5 ED500 6BK4 ??-5, US $6.26 – Picture 1

1x GP-5 glass-envelope beam power triode Transmitting Tube = GP5 ED500 6BK4 ??-5, US $6.26 – Picture 2

1x GP-5 glass-envelope beam power triode Transmitting Tube = GP5 ED500 6BK4 ??-5, US $6.26 – Picture 3

1x GP-5 glass-envelope beam power triode Transmitting Tube = GP5 ED500 6BK4 ??-5, US $6.26 – Picture 4

1x Gp-5 Glass-envelope Beam Power Triode Transmitting Tube = Gp5 Ed500 6bk4 ??-5

US $6.26

Stara Zagora, Stara Zagora, Bulgaria
Jan 29th

Open on mobile:
QR code

1x GP-5 glass-envelope beam power triode Transmitting Tube = GP5 ED500 6BK4 ??-5 Description The Svetlana GP-5 (??-5) is a glass-envelope beam power triode intended for use as a shunt regulator or pulse modulator in high-voltage systems. It features anode operating voltage of 30 kV and a plate dissipation of 37.5 watts. Originally intended for color-TV voltage stabilization, the GP-5 is similar to the Telefunken ED500 and may be used to retrofit equipment which uses the American type 6BK4 or other high-voltage beam triodes. Near equivalent: ED500 and 6BK4. The tube is manufactured by the Svetlana, St. Peterburg, Russia. General characteristics: Name: GP5 Cathode: oxide-coated, unipotential Voltage (AC or DC), V: 6.3 (± 0.6) Current, mA: 210 (± 20) Heater-cathode voltage, peak, V: ±200 Amplification factor (nominal): 2750 Transconductance (nominal), uS: 700 Interelectrode capacitances (typical), with cathode grounded: - Input 4.0 pF - Output 1.5 pF - Feedback 0.1 pF Mechanical characteristics: Base standard magnoval, glass button Socket Svetlana SK509 or similar Anode cap approx. 3/8 in (9 mm) diameter Anode connector same as 6BK4 or 807 Operating position Any (vertical for convection cooling) Nominal dimensions: - Height of glass envelope 100 mm (3 7/8 in) - Diameter of glass envelope 46 mm (1 3/4 in) - Overall height 125 mm (4 7/8 in.) Net weight, g: 115 Maximum ratings: Anode voltage, kV: 30 Anode dissipation, W: 37.5 Anode current, continuous, mA: 2 Grid voltage, V: -450 Maximum grid-circuit resistance, megohms: 3 Envelope temperature, C: 250 We accept paymet trough PayPal. SHIPPING The order will be processed within 24-72 hours after payment is received, depending on which day of the week the purchase is made. Friday purchases are shipped in Mondays. We make deliveries by registered airmail with priority, tracking number and recommendation. The average delivery time is: Europe (All countries): 8 to 14 working days All other destinations: (Asia, Africa, Australia, North and South America, etc.): 12 to 20 working days

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Elorg
Country/Region of Manufacture	Russian Federation
Model	GP-5
