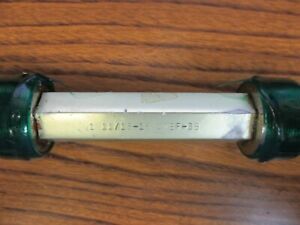

2-3/4 X 12 Unj-3b Thread Plug Gage ~ Go /not-go - 2.750 - 12 T.p.i. - Ponam

US $150.00

Saint Paul, Minnesota, United States
May 27th

Open on mobile:
QR code

2-3/4 x 12 UNJ-3B ~ Thread Plug Gage ~ Go-No/Go All gages guaranteed to be to the specs stated. Diameter T.P.I. Class Manufacture Go P.D. NoGo P.D. 2-3/4 2.7500 12 UNJ-3B Ponam 2.7094 --- What's The “J” In UNJ Screw Threads? The follown is from Thread Checks, Inc. website: UNJ, UNJC, UNJF and UNJEF threads are almost identical to UN, UNC, UNF, and UNEF threads except that the external J thread has a much larger root radius than the standard UN threads and inspection must be performed on this element. The Special UNJ threads are designated by the nomenclature UNJS. J screw threads feature a root radius which improves the tensile stress area of the fastener and helps to reduce the stress concentration factor in the thread thus making the thread stronger. Additionally, the requirement for high strength is achieved with 3A and 3B classes of fit. All pitch diameters and tolerances are based on the Unified Inch Standard. About These Gages: ALL Gauges we sell are thoroughly inspected to insure conformance to the specifications stated. Almost all the gauges we sell come from manufacturing companies and machine shops that had the misfortune of some bad luck and had to liquidate. We have found most had well cared for inspection equipment. All PLUG GAUGES are dipped in plastic for protection and shipping, we do however remove the coating for inspection and photography. I personally have spent over 45 years in the machining industry serving both military and medical. When it comes to understanding the requirements of inspection and thread gauges my expertise is in the top 1%. I personally inspect every gauge, although I do not check Pitch Diameters of every gauge, if it appears they need it, I will measure the pitch diameter to verify it is correct. All gauges that we sell that have apparent damage or potentially not to spec are discarded or so marked and discounted. Item Description: We never sell anything that we do not have a good understanding of what it is, what it does, how it functions and if it works properly. We describe the item to best to our knowledge and all photos are of very high resolution so that you can see clearly what you are buying and they become part of the description. The picture of the item in the ad is the actual photo of the item or items being sold and not a stock photo, except in the case of an item that is brand new in it's original unopened package. Shipping Times: Orders received and paid for Monday through Thursday before 3:45 PM and Friday before 9:30 AM Central time will almost always ship the same day. Orders placed after 9:00 AM Friday including Saturday will often ship same day, but are not guaranteed Shipping Charges and Combining Purchases: My shipping charges are never inflated. I always try to use the lowest cost and pass the savings on to you. As eBay's shipping calculator does not always come up with the best price on combined purchases if you purchase more than one item and want them shipped together you can always request combined shipping and if their is a savings I will invoice accordingly or refund the difference. Feed Back: We will always be more than fair with you and I ask you give me the same consideration. If you have any problem with something I sell to you please talk to me about it as I will always do my best to resolve to your satisfaction. Payment: Payment accepted via PayPal, Google Pay, VISA, MasterCard, American Express and Discover, with payment expected to be made promptly. (0521 TRG)

“Very Nice Gage!”

Model

Thread Plug gage Go Only

Country of Manufacture

United States

Country/Region of Manufacture

United States

MPN

W1750163BS

Gage Type

Thread Gage

Brand

Alameda
