2 Large Dt Magnetics Wire Wound Ferrites, Chokes Filters,toroids Inductors T8820

US $8.99

  • Springfield, Tennessee, United States
  • Jan 29th
Open on mobile:
QR code

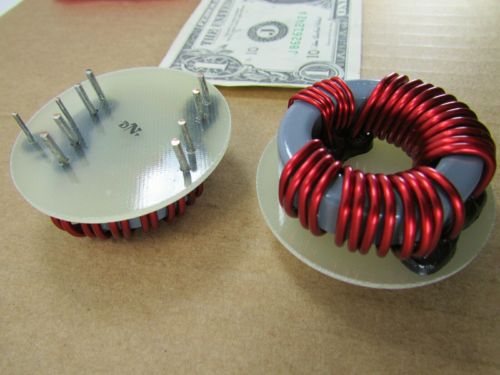

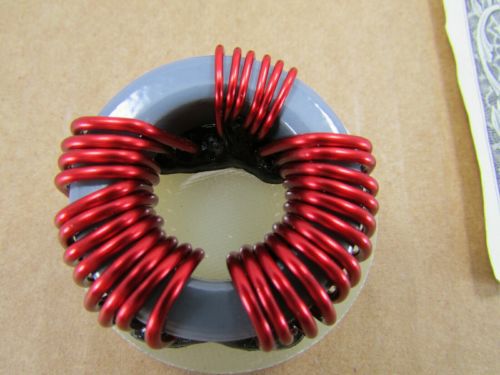

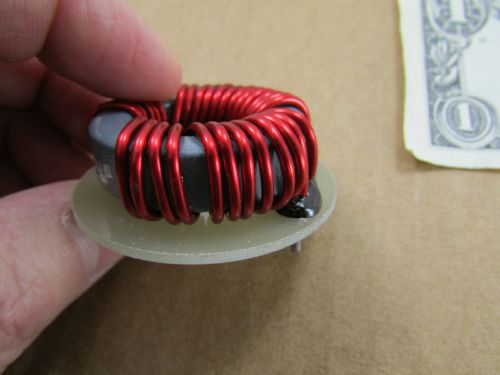

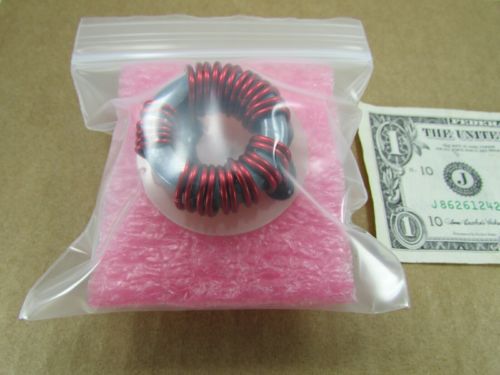

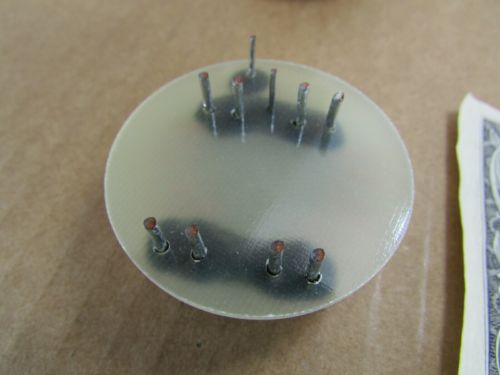

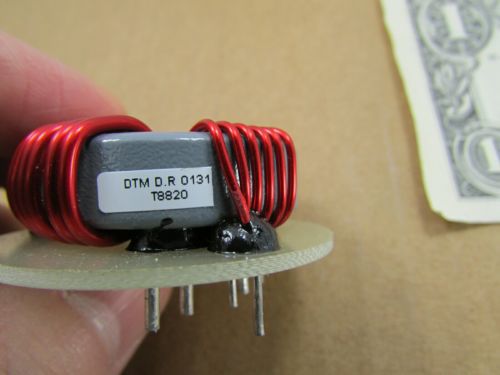

2895XA2C.25 New Large DT Magnetics Wire Wound Ferrites, Chokes, Filters, Toroids, Inductors, Part Number T8820 or GEC 3140058000, or GEC3140058000, or DTM D. R 0131.  Each bid quantity is for a Lot of Two (2) Chokes.  You may bid / buy any number of lots, up to the total quantity available above. These were purchased at a supplier liquidation earlier this year, and they were brand new in the original factory boxes.  We packaged them in heavy Ziplok bags for resale. Made in USA (imagine that).It is hard to get pictures of how these are wired, but there are two wires - with 4 solder terminals - for each of the large winding segments.  That is to say, two wires are wound side by side and terminated with the ends passing through the mounting base beneath each segment.  Thus, two segments equals eight (8) solder terminals.  The small winding segment is a single wire with a solder terminal for each end. According to the calipers: Mounting base diameter: 1.848" / 46.95 mm Coil width: .1.620" / 41.16 mm Mounted height: .690" / 17.54 mm Ferrite core outside diameter: 1.40" / 35.77 mm Ferrite core inside diameter: .885" / 22.49 mmFerrite core width: .393" / 10.00 mmSolder leads (of large coils): .062" diameter x .275" long (1.58 mm diameter x 6.99 mm long)Solder leads (of small coil): .044" diameter x .244" long (1.13 mm diameter x 6.20 mm long) Wire gauge (of large coils): 14 AWGWire gauge (of small coils): 17 AWGWire material: CopperFerrite material: Ferrous metal (attracts a magnet)
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand DT Magnetics
Core Material Ferrous Metal (attracts a magnet)
Model T8820
Other Names Toroids, Inductors, Filters, Chokes
MPN GEC 3140058000
Mounting Through Hole Solder
Quantity 2
End Use Circuit Board
SELLER LOCATION USA
Position Horizontal
Wire Material Solid Copper
