200 Hp Lincoln Electric Motor And (bosch) Rexroth Hydraulic Pumps - Hydrostatic

US $18,500.00

De Witt, Nebraska, United States
Feb 14th

Open on mobile:
QR code

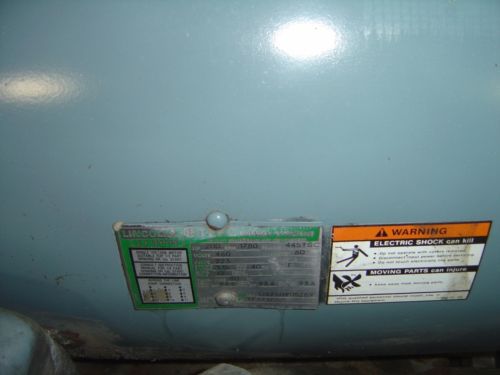

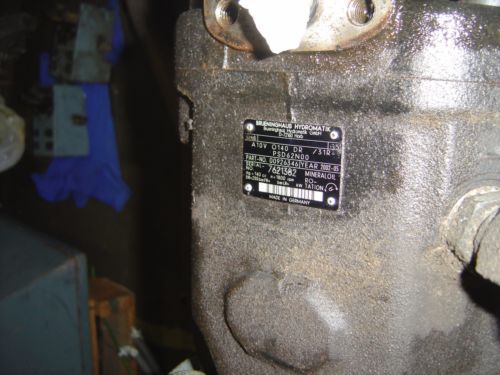

Unit No. 1 200 HP Lincoln Electric Motor and Back-to-Back (Through Drive) (Bosch) Rexroth Hydraulic Pumps - Hydrostatic Drives Axial Piston Variable Pumps – (A)A10VSO Variable axial piston pump of swashplate design for hydrostatic drives in open circuits The flow is proportional to the drive speed and displacement. The flow is infinitely variable through adjustment of the swashplate angle. 2 case drain ports Good suction characteristics Permissible continuous pressure 280 bar Low noise level Long service life Axial and radial loading of drive shaft possible High power to weight ratio Wide range of controls Short response times The through drive is suitable to mount additional gear or piston pumps of up to the same displacement size, i.e. 100% through drive torque. Pump Next to Electric Motor Drive Brueninghaus Hydromatik GmbH (Rexroth) A10V O140 DR / 31R - PSD 62N00 Part No.: 00926346 Serial No.: 7621382 Year: 2002-05 Made in Germany Vg = 140 cc DR = 280 bar N = 1800 rpm End Pump Brueninghaus Hydromatik GmbH (assumed to be Rexroth) AA10VS O140 DRG / 31R – PKD62N00 Part No.: 00928882 Serial No.: 1048427 Year: 09.95 Made in Germany Vg – 140 cc DR = N = 1700 rpm Note: Displacement Vg max is 140 cc or 8.54 cubic inches. The pumps were part of a very large injection molding machine that was in operation for only about three years. Although used, for comparison purposes, a new 200 HP Lincoln electric motor will cost around $27,000; new hydro-static hydraulic pumps will cost around $5,000 each. Although the electric motors and hydraulic pumps were operational at the time of disassembly, the electric motors may be tested for a modest fee of between $100 and $200, and the pumps may be rebuilt for between $400 and $2,500 depending on the need for replacement parts. Rexroth – Bosch Group data sheets for these pumps are available and may be sent via e-mail upon request. We have also listed one new pump and two used pumps with nearly identical specifications. You may make an offer for only the electrical motor or only the hydraulic pumps. Unless specified, we will assume any offers are for the entire power unit (i.e. electrical motor and hydraulic pumps). Lincoln Electric Motor Details Code No.: TF4717BC Description: 445TSTEFC 200HP1800 460000000/360 PRD NUM: LM02054 FRM: 445TSC SYN RPM: 1800 WDG SPEC: 7D-445-AD MODEL: SF4H200TSC64PYB NP: M14815-23 HP: 200 RPM: 1780 VOLTS: 460 AMPS: 223 HZ: 60 SF: 1.15 SFA: 0.00 SF-R: 80 PHASE: 3 INS: F NEMA CODE: G DESIGN: B NOM EFF: 94.5 MIN EFF: 93.6 LIN MIN EFF: 93.6 MAX AMB: 40 Items are sold FOB De Witt, Nebraska 68341. Seller will provide shipping quotes upon request.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Rexroth (Bosch)
Country/Region of Manufacture	United States
Model	(A)A10VSO
