2008 Branson Radiance 3g Laser Welder System With Chiller

US $75,000.00

Spring Valley, Minnesota, United States
Jan 30th

Open on mobile:
QR code

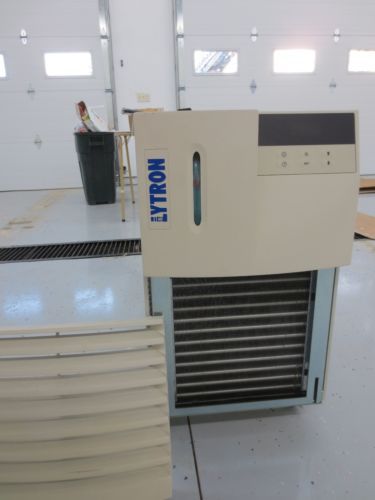

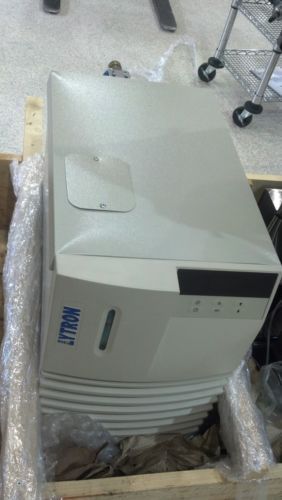

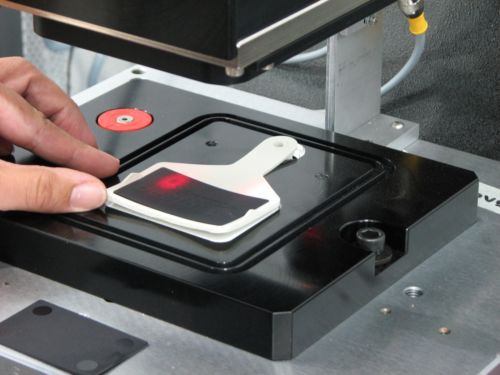

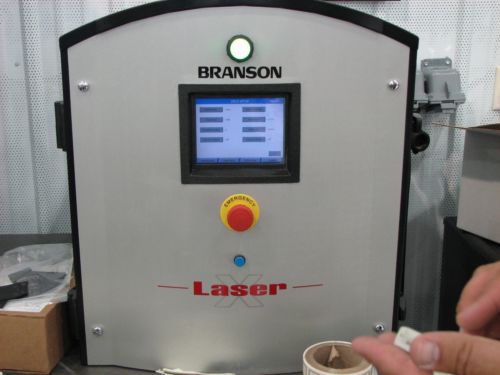

This was a machine purchased to manufacture UHFRFID Cattle tags. The business never developed. I purchased it in '08 and leased it to our company. It has less than 100,000 cycles. It is in very good shape as it was housed in iMark Molding, Woodville, Wisconsin's facility which makes medical plastic parts. It is a complete system. The tool is included as I have no use for it and it will save the next company some money on parts. The chiller is in good shape, but the lower front grill has couple of small plastic tabs missing, so it would have to be taped on to stay in place or replaced. The Chiller top is somewhat dented as shown in picture. The internal parts show no damage what so ever. It has the water in it and it looks very good and does not leak. Branson has assured me that this model is still supported by them and is currently listed for in their website. One (1) Radiance 3G Laser Controller _ Full VGA Color Touch screen interface _ Global intensity control of all lasers _ Ability to adjust the output of individual laser channels from the touch screen _ The Radiance 3G can control up to two laser banks and one welding actuator. _ Weld Graphing capability _ Weld Data digital output via RS-232 port _ Remote access to HMI via TCP/IP _ Graphical Tool Map functionality Two (2) Radiance IRAM laser banks _ Each laser bank delivers 125 watts at the fiber output _ Each laser bank has 5 laser Channels _ DSP based closed loop control of power output _ Dual Shutter system _ Automatic Simmer Mode _ Quick Change tool coupling One (1) 2000X-D Intelligent Welding Actuator _ Generates precise repeatable welding and clamping force _ Linear encoder accurate to 0.0001” allows for monitoring and or controlling the weld collapse or absolute position of the final assembly _ Integrated force transducer for monitoring and weld trigger force control _ Four (4) inches of stroke length standard _ Available with clamping cylinders from 1.5” to 3.0” diameter One (1) Actuator Stand _ Available with either an Ergo base for manual operation or a mounting hub for use on automation or custom work tables _ Integrated brackets for convenient mounting of Radiance Laser banks Requirements: _ Electrical: 200-240VAC 3 Phase 12 Amps _ Water Cooling: ~750 Watts at 60-68F 3/4 GPM per laser bank at 100% duty cycle. _ Air: 80 psi 5,CFM One(1) Lytron Model RC011J03BC2M043 Cooler _208/230V 1.8 GPM 7.8 AMPS _01/30/08 _Serial # 787746-02 One (1) Tool with all hookups to laser _Head is designed for welding a Cattle tag _Cables estimated to be worth as much as $1200.00

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Branson
Country/Region of Manufacture	United States
Model	Radiance 3G System
