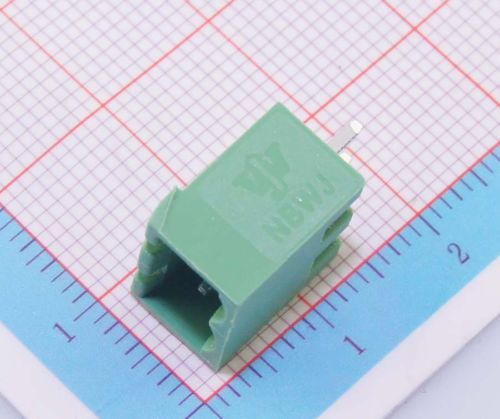

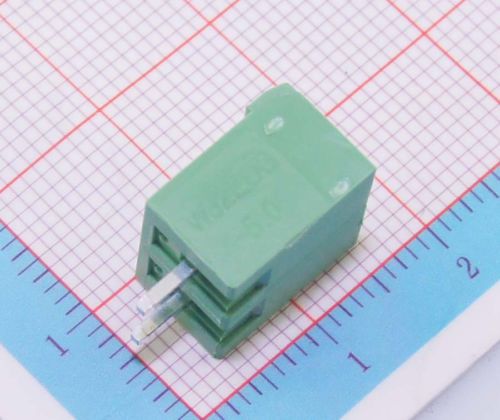

200pcs 2edgvc-5.08-2p Pitch Terminal Block Connector Panel Green Pcb Mount

US $15.99

  • Shenzhen, China
  • Jan 29th
  200 Pcs Pitch 2 way/pin 5mm Pitch Terminal Block Connector  Green Color 2EDGVC-5.08-2P + Free shipping Model:#1307 Quantity:200 Pcs Condition: Brand New Spec: Material - Housing:     PA66   UL94V-0 - Contact: Phosphor bronze,Ni plated - Solder pin: Brass,Tin plated - Screw:       M2 ,Steel,Zinc plated Electrical - Rated voltage:              300V - Rated current:              8A - Insulation resistance:   5000M?/1000V - Contact resistance:      20m? - Withstanding voltage:  2000V/1min - Wire range:              26~16AWG Mechanical & operating ambient - Torque:            0.2Nm - Strip length:        5~6mm - Temp.Range:     -40°C~+105°C - MAX soldering:  +250°C 5Sec Part. No.: 2EDGVC-5.08-2P
