2014 Veterinary Digital Ultrasound Scannner With Rectal Linear Probe 2y Warranty

US $3100

Qinhuangdao, China
Jan 30th

Open on mobile:
QR code

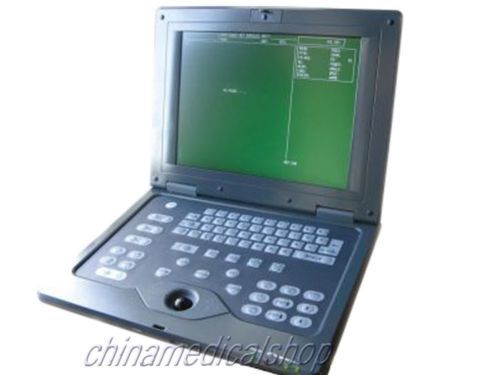

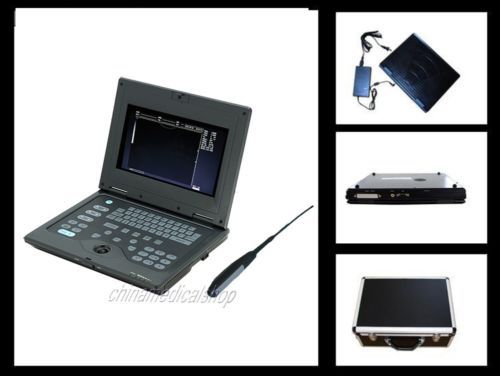

CMS600P Laptop Veterinary Ultrasound Scanner +6.5 Rectal probe What's New? Mian Features: ? Full digital beamforming technology ? Probe automatic identification ? Digital encoder knobs ? Gama corection, histogram ? Automatic report generation (Normal / OB) ? Scanning angle adjustment ? USB 2.0 For real- Technical Specification ? Scanning mode : Convex/Linear ? Display modes : B,B+B,B+M,M,4B ? Scanning depth : 60-130mm ? Gray scales : 256 ? Cine-loop :508 frames (Max) ? Image permanent storage : 32 frames ? Image conversion : up/down, left/right, black/white ? Local zoom : 2 times both in real-time and frozen ? Measurement : distance, circumference, area, volume, EF rate, heart rate ? OB measurments : Equine---GA(GSD) Bovine---GA(BL,SL,HL) Swine---GA(HL) Sheep---GA(USD) Cat---GA,EDD(HD,BD) Dog---GA,EDD(GSD,CRL,HD,BD) ? Probes selectable :convex, linear, micro-convex, rectal linear ? Monitor : 10TFT Color LCD ?Comment : date&time, name, sex, age, doctor, hospital, annotation (whole screen comment input) ? Weight: 2.4kg(one probe included) ? dimension(mm): 292*230*41 ? Battery working time: 3 hours(max) ? Wide application : Swine,Equine,Bovine, Sheep,Cat,Dog etc. ? Standard configuration : 6.5MHz Rectal Linear Probe ? Optional configuration : 3.5MHz Convex 5.0MHz Micro-Convex 7.5MHz Linear Video Printer Biopsy bracket & Cart ? Video Printer Brand: Sony ? Car Charge Description Introductions This equipment is high resolution linear/convex ultrasound scanner. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies. The device is suitable for ultrasonic examination on abdominal, small parts and obstetric. Main Features ?PAL-D video output offers connection to external video image printer and big display and other equipments ?High speed USB port provides real time image transfer to the PC ?Using the touch pucker keyboard and tracball to operate, it' s quick, convenience, agility ?Field programmable gate array and surface mounted technology make this equipment compact and light in weight ?Jet molding enclosure and potable structure Main Performance Display mode: B,B/B,B/M,M,4B,B+M/M Image gray scale: 256 Scale Monitor size: 10.4 Inch TFT Color LCD Depth of penetration: 40 mm-240 mm Dead zone:
