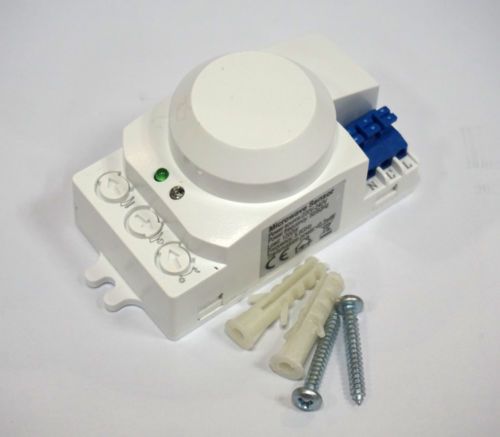

220v Microwave Switch Active Movement Detector 5.8ghz Electro-magnetic Wave

US $29.20

???, ???, China
Jan 29th

Open on mobile:
QR code

Default: ONLY 220VAC Description The sensor is an active motion detector, it emits high-frequency electro-magnetic wave (5.8GHz) and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the "switch light ON" command. Detection is possible through doors, panes of glass or thin walls Reach setting (sensitivity) Reach is the term used to describe the radii of the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2.5m, turn the reach control fully anticlockwise to select minimum reach (approx.1m radii), and fully clockwise to select maximum reach (approx. 8m radii). NOTE: the above detection distance is gained in the case of a person who is between 1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec. if person’s stature, figure and moving speed change, the detection distance will also change. Time setting The light can be set to stay ON for any period of time between approx. 8sec (turn fully anticlockwise) and a maximum of 12min (turn fully clockwise). Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test. NOTE: after the light switches OFF, it takes approx. 1sec before it is able to start detecting movement again. The light will only switch on in response to movement once this period has elapsed. Light-control setting The chosen light response threshold can be infinitely from approx. 2-2000lux. Turn it fully anti-clockwise to select dusk- to-dawn operation at about 2 lux. Turn it fully clockwise to select daylight operation at about 2000lux. The knob must be turned fully clockwise when adjusting the detection zone and performing the walk test in daylight. Power Supply 200~240VAC Power Frequency 50/60Hz Installation Sit Indoors, ceiling Mounting HF System 5.8GHz CW radar, ISM band Transmission Power Less 10mW Rated Load 600W Detection Angle 360 Mounting Height 2.5m Reach 1~8m(radii.), ajustable Time Setting 8sec to 12min Light Control 2~2000 LUX Power Consumption Approx.0.9W Package Content 1 x Microwave Sensor If you need 110V version, please feel free to contact us!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	K&D
Country/Region of Manufacture	China
Model	p27
