24h Dynamic Holter Ecg Machine Oled 12channel Leads Synchro Analysis+pc Software

US $699.00

Qinhuangdao,Hebei, China
Jun 9th

Open on mobile:
QR code

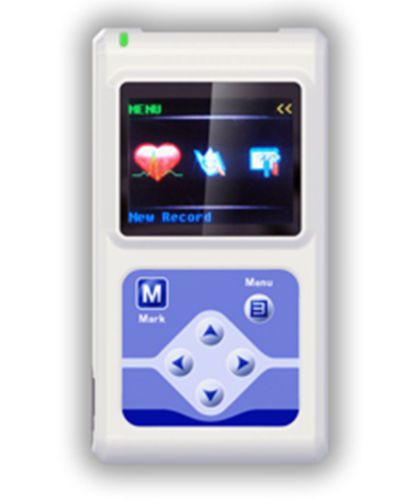

12 Channels ECG Holter ECG/EKG Holter Monitor System Manufacture : CONTEC Medical System Model : TLC5000 12-lead Dynamic ECG Holter with PC sofware The TLC5000 Holter system is composed of the ECG recorders, a computer system,a laser printer and the software. The recorder has build-in flash storage media that increases its memory capacity. The sampling rate of 1000 sampling/sec has improved the quality of waveform. The software of the system is checked by AHA and MIT data,which ensure its accuracy. Recorder Features ? With advanced design and technology, the recorder can work stably, dependable and durable. ? Be provided with the capability of anti-jamming and shock-pro. ? Small volume with OLED screen. The resolution is 160*128. ? Be provided with functions of waveform preview, record review and event marking. ? Accurate record of the start time of the data sampled owing to the real time clock of itself. ? Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TF card to storage the data. ? The maximum capability can be 2GB, so the original data can be saved perfectly by no compression. ? The average review time of single case can be less than 40 seconds by using interface of USB 2.0. ? Record waveform details inextenso by the design of high precision and sampling frequency. ? Record the state of pacemaker exactly by higher sampling frequency. ? International standard of 12 leads. Record 24-hour DECG with the same standard of the ECG. The features of software ? Quick and accurate analysis system. ? With 12 leads synchro analysis , QRS search can be more exactly. ? There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms. ? Optional main channel. ? Agile and exact "Atrial Fibrillation" analysis. ? The function of pacing analysis could analyse all pacemakers. ? Many pacine modules have been added. ? Any period of single lead or 12-leads ECG can be reviewed at any time with the function of fast waveform review and analysis. ? The types of the analysis system of HR variability include five minutes of short ECG and one hour or 24-hour of long ECG. ? Print report expediently. ? Perfect function of case management. ? With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally. ? "Sleep breath pause syndrome analysis", the physician could print sleep asphyxia analysis report and diagnose. ? "HRT" analysis, when the adjustable function is natural, this transitory change will be represented by the form of HRT immediately. ? "T Wave alternation" analysis is a important index on judging and preventing Arrhythmia. ? The report has more reference value with the functions of VCG, VLP, TVCG and QTD analysis. Standard Number of channels: 12 channels; Sampling rate:10000Hz; Sampling accuracy:12bit; Recording time : 24h; Power: 2 batteries in size 5; Interface: USB2.0; Scale voltage:1mV±5%; Standard Sensitivity:10mm/mV±5%; Noise level:=60dB; Feathers of low frequency : Time constant>3.2s; Scan speed:25mm/s±5%; Enduring polarization voltage:±300mV; Least measure signal : 50 µV p-p; Product safety type : Type B (Internally powered); Size:111mm(L)*60mm(W)*25mm(H); Net Weight: 102g (Without battery). Software screenshot paypal payment We only accept paypal payment, please be kindly make payment in 7 days. 1. We will ship the item within 48 hours after receiving your payment, please kindly leave your detail shipping address and telephone number on ebay and paypal, both are very important for the shipment, thank you. 2. Usually we will ship by EMS or UPS or TNT ,that's depends on your country.Usually it will take 7 working days to arrive at your country.If you have special requirements about the shipping company, please contact me immediately after your payment, leave the note in both ebay and paypal, thank you. 3. We will upload the tracking number after shippment, you can search from both ebay and paypal. You can track online. 4. If you haven't received the item after 2 weeks of your payment, please contact me immediately! Please kindly leave your right information about address, telephone number, color and all requirements. Return: If your item arrived damaged or defective or if you received the wrong product or the item is not working according to its technical spec, you may return it to us for a replacement item or a full refund, This should be done within 14 days from the day you received the item. We will send you a new unit or refund the full payment you paid. Custom fee: International Buyers - Please Note: • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. • Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying." Warranty: 3 years (1 year for spare parts) from the date of shipment under normal use and service. By Airmail: Generally, about 2-3 weeks to UK, USA, AU. By Express: Generally, about 5-10 working days to UK, USA, AU. delivery to US, UK, Australia and Canada usually takes 7-14 working days; delivery to countries except US, UK, Australia and Canada usually takes 7-21 working days; We can also ship the item through express service like DHL, UPS, if you are ready to pay the extra charge. To know the details please contact us with email. Refund: Agent in the world! We are looking for partners in the world now! Do you want to become our agent in you country? Join US! Please contact : Daisy

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	CONTEC
MPN	Does Not Apply
Model	TLC5000
Country/Region of Manufacture	China
UPC	Does Not Apply
