2a Digital Dc Converter 4.5-23v To 0-20v 12 Volt Voltage Regulated Power Supply

US $16.80

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

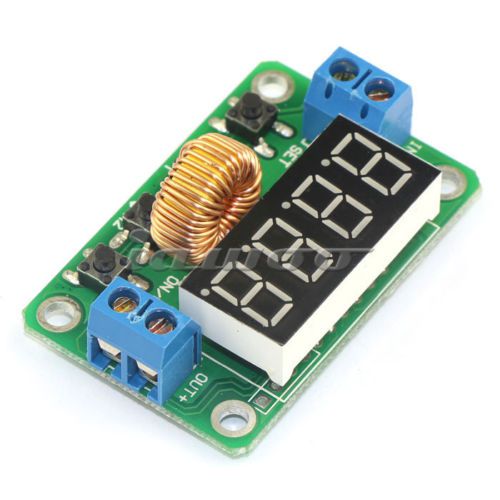

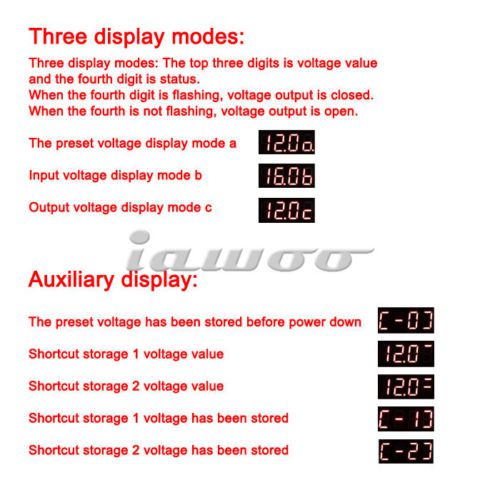

Green LED Volt Meter Dispaly 30W/2A Digital DC Converters 4.5V-23V to 0-20V Voltage Regulated Power Supplies #090086 Product Description Technical parameters: Module Properties : Constant Voltage Numerical Control Buck Power Supply Module Dimension: 48x31.5x21mm (L*W*H) Display: Green LED Voltmeter Weight: 20 g/piece Input voltage range : DC 4.5-23V (Please leave adequate leeway) Output voltage range : DC 0-20.0V Minimum voltage difference : 3V ( Vin - Vout >/= 3V) Output current : Maximum 2A Output power : Maximum 30W Ripple frequency: About 330 KHz Ripple peak to peak value :50mv (typical value) Voltage display resolution: 100mV, input voltage/ output voltage dual display Adjustable output voltage error : +/- 0.1v Adjustable output voltage resolution:100mv IN+: Input positive IN- : Input negative OUT+ : Output positive OUT- : Output negative Three display modes: The top three digits is voltage value and the fourth is state. When the fourth is flashing, voltage output is closed. When the fourth is not flashing, voltage output is open. The preset voltage display mode a : [ 12.0.a. ] Input voltage display mode b : [ 12.0.b ] Output voltage display mode c : [ 12.0.c ] Auxiliary display icon: The preset voltage has been stored before power down: [ -0 ] Shortcut storage 1 voltage value : [ 12.0 - ] Shortcut storage 2 voltage value : [ 12.0 = ] Shortcut storage 1 voltage has been stored : [ -1 ] Shortcut storage 2 voltage has been stored : [ -2 ] key function instruction: SET: The preset voltage set. store the preset voltage before power down M1: Switch up in display mode. turn the preset voltage up. extract or store Shortcut storage 1 data M2: Switch down in display mode. turn the preset voltage down. extract or store Shortcut storage 2 data ON/OFF: Open or close voltage output Operating instructions: The use case of the mode can be divided into normal use and shortcut storage use. In both cases, voltage output is closed and opened by pressing on/off button. at the same time, the digital tube flashing or not flashing corresponds to open or close. Normal use: Adjusting output voltage: pressing SET button, the digital tube switches automatically to the preset voltage display mode a. when the first digit of the digit tube starts flashing, press shortly M1 or M2 to add or subtract value. In the meaning time, you must guarantee that the preset voltage is lower than the output voltage 3v (when the voltage difference is insufficient, the key will not be able to continue to increase the preset voltage). The mode switches to adjust the second and third digit value by pressing shortly SET key in turn. As press shortly M1 or M2 to add or subtracts the value. After adjusting the third digit value, the adjusting voltage mode will quit. In the process of adjusting voltage, if voltage output mode is on by pressing ON/OFF key, output voltage value will be immediately updated. If the mode off, there will be not output voltage by adding or subtracting the value. Switching display: when the module is not in the state of adjusting the preset voltage, the display mode will be upturning by pressing shortly M1 key, like mode c, mode a, mode b in turn. and the display mode will be page down by pressing shortly M2 key, like mode a, mode b, mode c in turn. Store the preset voltage before power down: If you want to use the present preset voltage at the next time of using the module, you should store the preset voltage. Keep pressing SET key until [ -0 ] appears, and then loosen the key, indicating the preset voltage has been stored. Shortcut storage use: Extract Shortcut storage voltage value: Keep pressing M1 or M2 key until [ 12.0- ] or [ 12.0= ] appears, then loosen the key, indicating the preset voltage has been extracted. And then you press shortly ON/OFF key .So the Shortcut storage voltage will take effect. If the voltage output mode is open before extracting Shortcut storage voltage, new output voltage will be the shortcut storage voltage after pressing shortly ON/OFF again. If the voltage output mode is off before extracting Shortcut storage voltage, there will be not output voltage t after pressing shortly ON/OFF. So you need to press shortly ON/OFF key, new output voltage will be the shortcut storage voltage. Store shortcut storage voltage value: Keep pressing M1or M2 key for one second until [ 12.0 - ] or [ 12.0 = ] appears, then the display voltage is the original shortcut storage voltage. And keep pressing the key until the new shortcut storage voltage to write flashes in the digital tube. And continue to keep pressing the key until [ -1 ] or [ -2 ] appears, indicating the shortcut storage voltage 1or the shortcut storage voltage 2 has been stored. Note: 1, When you do not use the module or adjust the preset voltage, the voltage output will be advised to be closed in case of wrong operation of high voltage to burn the load. 2, Make sure that the setting voltage is lower than output voltage 3v at least. 3, The input voltage must be under 23v and 23v is the highest Voltage. Please leave adequate leeway, otherwise burn it. 4, please do not let you hand touch the key pin, Otherwise affect the normal use. 5, When the input voltage drops and cannot satisfy that the input voltage is higher the preset voltage about 3v, the module will automatically shut down output to prevent the module damage. 6, If the module is used under strong sunshine, the digital tube brightness will be affected. So we do not advise you to use the module under strong sunshine. 7, When the module is used at full capacity, please pay attention to keep ventilation and heat dissipation of the module. 8, there is not constant current control unit in the module. so when voltage output is open, Please do not short circuit and recharge the battery in order to avoid damage. Package included: 1x DC/DC Converter Volttage Meter Display Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers! On Nov-30-14 at 11:51:33 PST, seller added the following information:

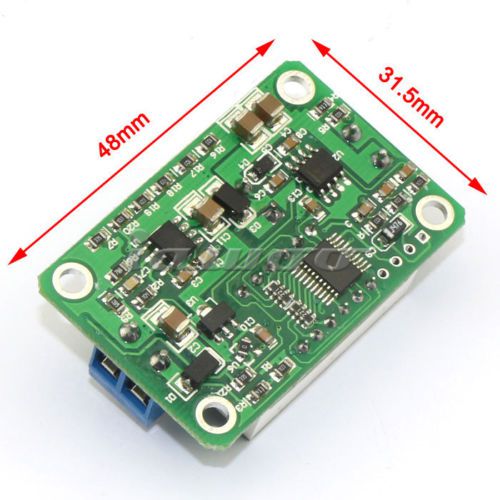

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Dimension	48x31.5x21mm (LWH)
Ripple peak to peak value	50mv (typical value)
Weight	20 g/piece
Voltage display resolution	100mV, input voltage/ output voltage dual display
Input voltage range	DC 4.5-23V (Please leave adequate leeway)
Adjustable output voltage error	+/- 0.1v
Output voltage range	DC 0-20.0V
Adjustable output voltage resolution	100mv
Minimum voltage difference	3V ( Vin - Vout >/= 3V)

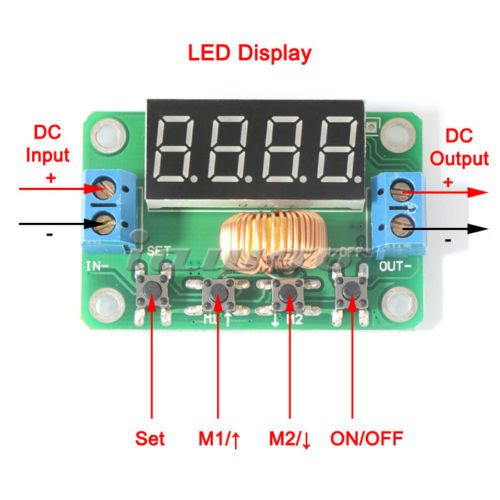

IN+	Input positive
Output current	Maximum 2A
IN-	Input negative
Output power	Maximum 30W
OUT+	Output positive
Ripple frequency	About 330 KHz
