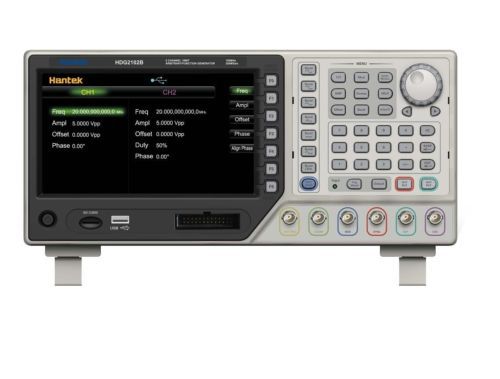

2CH 10MHz 250MSa/s Function Signal Arb. Waveform Generator USB 7"TFTLCD HDG2012B, US $320.00 – Picture 0

2CH 10MHz 250MSa/s Function Signal Arb. Waveform Generator USB 7"TFTLCD HDG2012B, US $320.00 – Picture 1

2ch 10mhz 250msa/s Function Signal Arb. Waveform Generator Usb 7"tftlcd Hdg2012b

US $320.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Note: we'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine and Singapore. Clients from other countries please contact with us in advance to confirm the different shipping charges before you order. HDG2012B Features: 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth; 100/80/60/30/20/10MHz or 5MHz Max. Sine Output Frenquency; 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice Support AM, FM, PM, ASK, FSK, PSK and PWM modulations TCXO timebase standard, OCXO optional for ultra-high stability 7 inch, 64K true color TFT display, WVGA(800X480) Plenty of interfaces: USB Host, USB Device, LAN Model HDG2102B HDG2082B HDG2062B HDG2032B HDG2022B HDG2012B HDG2002B Main Features Channel 2 2 2 2 2 2 2 Memory Depth 64M 64M 64M 64M 64M 64M 64M Frenquency 100MHz 80MHz 60MHz 30MHz 20MHz 10MHz 5MHz Sample Rate 250MSa/s Voltage Resolution 16Bit Digital Output 16 Channels output Frenquency Characteristic Standard Waveforms Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC Sine 1uHz~Max. Square 1uHz~40MHz 1uHz~35MHz 1uHz~30MHz 1uHz~5MHz Pluse 1uHz~30MHz 1uHz~25MHz 1uHz~25MHz 1uHz~5MHz Ramp/Triangle 1uHz~4MHz 1uHz~3MHz 1uHz~3MHz 1uHz~30MHz 1uHz~20MHz 1uHz~10MHz 1uHz~5MHz White Noise 100MHz 80MHz 60MHz 30MHz 20MHz 10MHz 5MHz Arb. 1uHz~30MHz 1uHz~25MHz 1uHz~25MHz 1uHz~20MHz 1uHz~20MHz 1uHz~10MHz 1uHz~5MHz Resolution 1uHz Accuracy ±2ppm, 18~28°C Sine Wave Spectrum Purity Harmonic Distortion Typical(0dBm)DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dBc Total Harmonic Distortion <0.1% (10Hz-20kHz, 0dBm) Spurious signal (non-hormonic) Typical(0dBm): =16ns >=18ns >=18ns Leading Edge Time >=8ns >=9ns >=10ns >=10ns >=11ns >=11ns >=12ns Overshoot <3%(1VPP) Jitter(rms) Typical(1MHz, 1Vpp, 50?)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	HDG2012B
Country/Region of Manufacture	China
MPN	HDG2012B
