2ch Bandwidth Hantek Pc Digital Storage 2 Channels Oscilloscope 6022be

US $82.13

Singapore, Singapore
Jan 29th

Open on mobile:
QR code

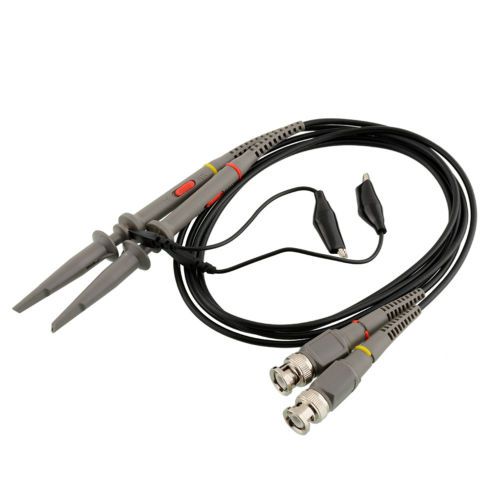

Shipping Payment Return Policy&Feedback Contact Us Product Show Desription Features: Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument. 1.Characteristic Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument. USB2.0 interface, no external power source required, easy to use. Be suitable for notebook computer, product line maintenance,be used easily on business. Dimensions (mm):205(L) x120(W) x35(H), be carried easily. High performance, 48MS/s real-time sampling, 20MHz Bandwidth, Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA. 23 measurement functions, PASS/FAIL Check, be suitable for technical application> Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. FFT One computer can connect many DSO, extend channel easily. Labview\VB\VC\Delphi\C++Builder Second Design instance. 2.Software Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA 3.Second Design Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support. 4.Specification: Channel 2 Channels Bandwidth 20MHz Shot bandwidth DC to 20MHz Input Impandence 1M? 25pF Max. Sample rate 48MS/s Vertical resolution 8Bit Gain range 20mV-5V, 8Steps DC accuracy ±3% Timebase range 1ns-9000s, 39 Steps Vertical adjustable Yes Input protection Diode clamping X-Y Yes Trigger Mode Auto, Normal and Single Trigger Slope +/- Trigger level adjustable Yes Trigger Type Rising edge, falling edge Trigger Source CH1, CH2, EXT Pre/Post trigger 0-100% Sampling selection Yes Waveform Display port/line, waveform average, persistence, intensity Network Open/Close Vertical mode CH1, CH2, Dual, ADD Cursor measurement Yes Math FFT, addition, subtraction, multiplication, division. Cursor Frequency, Voltage Accessories S/W CD, probes, manual, USB cord Package (airbubble envelop) 1 x 6022BE oscilloscope 2 x oscilloscope probe 1 x USB cable 1 x CD (manual etc.) Shipping Item will be shipped within 24 -48 hours after full payment is received. The Item will be shipped by air mail,Normally the shippment to worldwide is used to take 20 to 25 business days, exclude Sat & Sun. Payment We only accept payment through Paypal. Payment must be received in 7 business days of auction closing. Please leave note for your special request in ebay note when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Return Policy&Feedback If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it. If is item is defective in 3 months, you can return it to us. We will send you a new replacement after receiving the defective item Contact Us We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply your email as soon as possible, please kindly allow 24 hours(working day) for us to response. Thank you. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative or neutral feedback without any contact
