2kw Digital Rf Power Meter Ra4050-2000 400mhz To 500mhz 70cm Ism Band

US $1,150.00

  • Milwaukee, Wisconsin, United States
  • Jan 29th
Open on mobile:
QR code

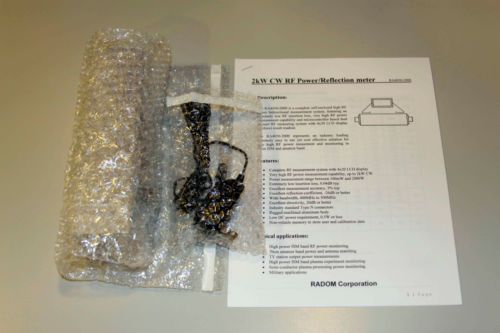

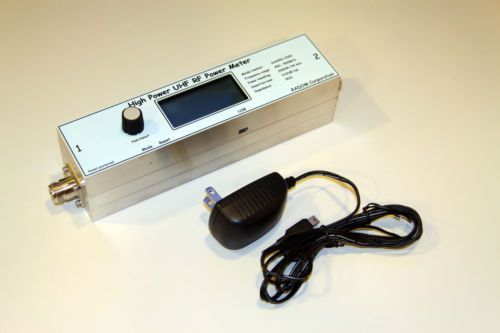

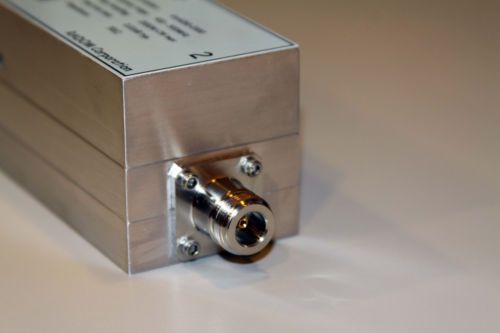

We just received a few brand new high power RF power meters. The device measures forward and reflected RF power between 400MHz and 500MHz up to 2000W CW with typical measurement tolerance of 3%. The package includes the following: RA4050-2000 digital RF power meter AC-DC adapter Data-sheet Device features: Complete RF measurement system with 4x20 LCD display Very high RF power measurement capability, up to 2kW CW Power measurement range between 100mW and 2000W Extremely low insertion loss, 0.04dB typ. Excellent measurement accuracy, 3% typ. Excellent reflection coefficient, -26dB or better Wide bandwidth, 400MHz to 500MHz Excellent directivity, 20dB or better Industry standard Type N connectors Rugged machined aluminum body Low DC power requirement, 0.5W or less Non-volatile memory to store user and calibration data RF electrical specification, 400 – 500MHz   Parameter Condition Min. Typ. Max. Unit   Frequency range     -   400   -   500   MHz   Input power     CW   0.1   -   2000   W   Insertion loss? 400 MHz 450 MHz 500 MHz -0.01 -0.01 -0.01 -0.03 -0.03 -0.03 -0.05 -0.05 -0.05   dB   RF coupling? 400 MHz 450 MHZ 500 MHz -61.5 -60.5 -59.5 -61.0 -60.0 -59.0 -60.5 -59.5 -58.5   dB   Return loss? 400 MHz 450 MHZ 500 MHz -32 -28 -26 -32 -28 -26 -32 -28 -26   dB   VSWR? 400 MHz 450 MHZ 500 MHz 1.04 1.08 1.1 1.04 1.08 1.1 1.04 1.08 1.1   -   Measurement tolerance? 400 MHz 450 MHZ 500 MHz - - - 3 3 3 5 5 5   %   Directivity 400 MHz 450 MHZ 500 MHz -18 -32 -18 -20 -34 -20 -25 -40 -25   dB   DC voltage requirement     -   4.0   5.0   5.5   V   DC current requirement     -   60   80   100   mA   One of our customers just posted a you-tube video where he evaluated this product. Thanks Nick.
