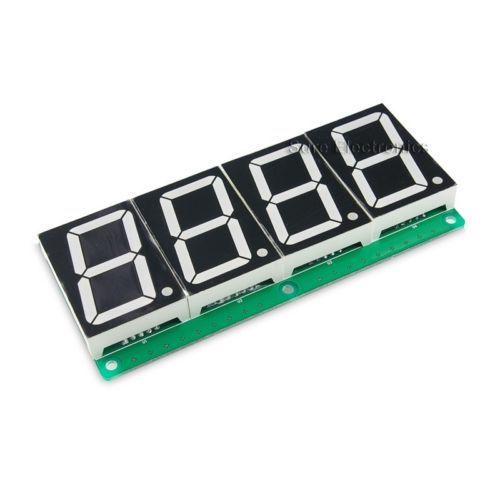

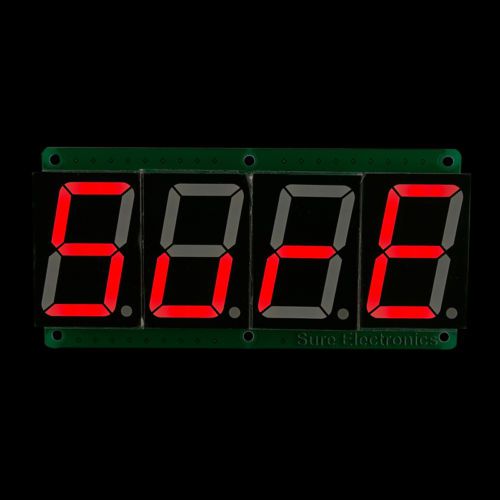

2pcs 1.5 Inch 4 Digit 7-segment Red Display Board

US $24.90

shenzhen, China
Jan 29th

Open on mobile:
QR code

[zipedit] Our-Store Home Page About Us Contact Us Add to Favourate Payment Shipping Return Payment Why Us Subscribe NewsLetter Add our store in to your favourites and recieve our exclusive emails about new items and special promotions Subscribe Product Overview Description Dear Customer: Thanks for your purchase of our LED Dot Matrix Unit Board for a long time. Now the LED Dot Matrix Unit Boards in our store are being updated to new version. There is some difference between the two versions. So if you need the old version, pls prepare some inventory in advance since we will not turn out the older version. For the convenience purchase,we will provide the older one with the product cost and you can directly purchase it in the link. If you need the old one in large quantity, pls feel free to contact with us and we will put into operation for you separately. If you are the new customer,pls refer to the following link: http://www.ebay.com/itm/P7-62-32X8-Red-LED-Dot-Matrix-Unit-Board-LED-/160850959772?ssPageName=STRK:MESE:IT http://www.ebay.com/itm/P4-32X8-Red-LED-Dot-Matrix-Unit-Board-LED-/160871007298?ssPageName=STRK:MESE:IT 2pcs 1.5 inch 4 digit 7-segment Red Display Board (2*DE-DP23611) Weight: 180g / 6.4oz Brief Introduction: This item is a basic 4-digit 7-segment LED information board. Each digit gets a height of 1.5 inches and all LED segments are common-anode . This info board features one decimal point per digit and red LED display. It can be driven by SPI-like interface and can work in full static mode. It can also be easily interfaced with microcontrollers and widely used in many applications like panel meters, big clocks and other information display usage. Features: 122(L) x 60 (W) ± 0.2mm 4pcs 1.5 inch common cathode 7segment LED display assembled 74HC595 assembled to drive the LED Only need to feed two signals (Clock and Data) Variable brightness by PWM You could assemble multiple these boards together for showing more characters Common-anode 7-segment LED display High brightness & high contrast red LEDs Wide viewing angle Rock solid Low power consumption Excellent displaying effect Specifications: Parameter Value Power Supply DC 4V- 5.5V Max. Clock Frequency 1MHz ( 4 boards connected in series) Suggested Refresh Rate Less than 10Hz Drive Current/segment 10mA +3mA/-2mA Drive Method Fully static Connection Method 74HC164 in series, SPI like interface Applications: Outdoor display Scoreboard, time counter, speed-displaying applications Other information display Package Contents: 1.5" Character Height 7-segment LED Information Board x2 Demo Board x 2 10-pin IDC cable x2 Note: The accessories might be a little different from what you've seen on webpage since the accessories you received might be from different batch. However, it won't affect your use. Sure Electronics assumes no liability for any ambiguity caused by the product photos. Documents: Go to Download Center for Manual, Driver and Tutorial. Keyword: DE-DP001 Please don't hesitate to contact us via Email if you have any purchase requirement for the MTO products ! Payment Shipping 100% Success Refund & Return Home Page About Us Contact Us Add to Favourate Payment Shipping Return Designed By XDiom Graphics
