2pcs Dc Dc Converter Step Up Boost Module 5v To 12v For Arduino Breadboard Relay

US $4.99

Guangzhou, China
Mar 25th

Open on mobile:
QR code

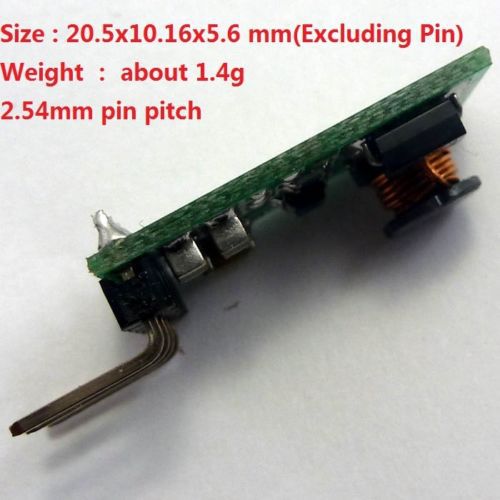

Below item is powered by Canton-electronics Ltd . Product Name: 2pcs dc dc converter step up boost module 5v to 12v for Arduino Breadboard Relay Module No.: CE014_2p Packing list: 2 PCS 3V-6V TO 12V dc dc converter Description: Input voltage 3~6V, output 12V Maximum input current : 1.2A Long-term work Current : 1A Conversion efficiency : 80-90% Start Voltage 2.8V, Output Current 50MA INPUT 3V 1A; OUTPUT 12V 220MA INPUT 3.3V 1A; OUTPUT 12V 250MA INPUT 3.7V 1A; OUTPUT 12V 280MA INPUT 4.5V 1A; OUTPUT 12V 340MA INPUT 5V 1A; OUTPUT 12V 370MA INPUT 6V 1A; OUTPUT 12V 450MA DC-DC Boost module working frequency 1.0MHZ. Over Temperature Protection Over Voltage Protection Operating ambient temperature : -40~+85 Degrees Celsius 2.54mm pin pitch,Arduino UNO DUE Breadboard FPGA/CPLD Development Board friendly. Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small) Weight : about 1.4g(Very light) Applications: 12V wifi router MCU Development Board,FPGA/CPLD Arduino UNO MEGA2560 DUE 8051 AVR STM32 etc PLC Modbus RS485 LED Lighting 12V Relay board Wireless communication equipment 315M 433M Wireless remote controller Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself 1.2A current limiting resistor,Remove the resistance, the maximum input current can reach 2A. But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 Degrees Celsius under the OTP threshold temperature ★Introduction for Shenzhen Canton-electronics Trading Co.,Ltd : We specialize in RF Wireless Radio Transmitting Units and Receiving Units, the product include transmitters with case, receivers with relay(s), transmittng modules and receiving modules, are widely applied in RC toy, remote sensing, telemetry, fireworks, industrial control, home&garden application. ★Shipping: Normally shipping is by Airmail from China Post Air Mail or Hong Kong Post Air Mail ,15-60 days shipping time based on different country . Express is available, shipping time is 2-7 days all over the world, and telephone number is needed. Please contact us first for extra payment . ★Benefits The Best Prices. By working with Canton-electronics Ltd, you can take advantage of the internet business, cut off the wholesalers cost and other costs, and import your products directly from the manufacturer at incredible prices. Prompt Delivery. Most units are in stock all the time, standard units will be completed within 1-3 days if they are sold out, it is great help for you if your project must be completed before deadline. Prompt Service. Mails will be replied within 24 hours We work 6 days a week. ★Return Policy All mails will be replied to within 24 hours except on weekend and holidays. Every item is manufactured under Strict Quality-Assurance Guidelines. If you are dissatisfied for any reason, please return the product to us, and we'll refund your money(not including shipping fees). Please ensure that return items are not used. Return items must be Posted within 7 days of receipt. Please inform us via email before posting your return package. ★PAYMENT •We accept PayPal only. •We only ship item to your PayPal verified address. •Payment must be received within 3 Days from the date of purchase. •Please leave note in PayPal when making the payment if you have any special request (colors/size). Orders will be processed instantly and dispatched in same day normally, so we do NOT accept any Email/Message note before or after you place orders. ★Import tax : We will dispatch the item as SAMPLE or GIFT , label the total amount on the custom declare invoice . Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to buying. Engineered for professional eBay sellers!
