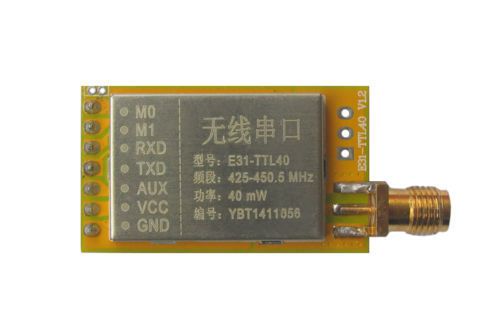

2PCS of 16dbm RF Module RF-TTL-40-SMA external antenna electronic, US $39.99 – Picture 0

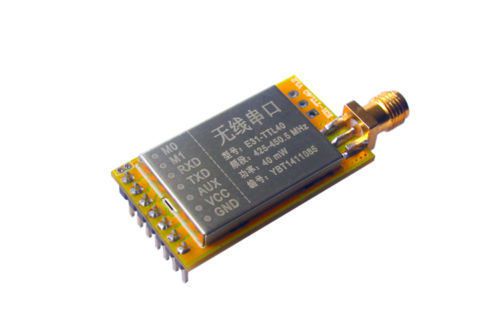

2PCS of 16dbm RF Module RF-TTL-40-SMA external antenna electronic, US $39.99 – Picture 1

2PCS of 16dbm RF Module RF-TTL-40-SMA external antenna electronic, US $39.99 – Picture 2

2pcs Of 16dbm Rf Module Rf-ttl-40-sma External Antenna Electronic

US $39.99

Dongguan,Guangdong, China
Jan 29th

Open on mobile:
QR code

Welcome to our store! Here provide the best service and the high quality! We have our own factory! l Introduce RF-TTL-40-SMA is our latest 100mW wireless transmission module. It working in 425-450.5MHz band and using serial port to send or receive data. Its advantage is that centralized power density, transmission distance(Its transmission distances can reach 2100 meters.) and strong anti-jamming capability. It can be comparable to most of the 200mW module in current market. RF-TTL-40-SMA having the FEC forward error correction algorithm, the coding efficiency is higher and the error correction capability is strong. When in the case of burst interference, it can take the initiative to correct the interference packets , that greatly improving the reliability and transmission distance. The module also having data encryption and compression function. When transmission data in the air, it is random and unsafe. But after the module rigorous encryption and decryption algorithm, the data interception becomes meaningless and improves transport security. The module has four operating modes , and can freely switch at runtime , in the power saving mode , current consumption is only ten of uA, it is very suitable for ultra-low- power applications. 1. Parametric Description Num Parametric Name Detailed Description 1 Module size 20* 36mm(No include antenna) 2 Interface 1*7*2.54mm, you can use the universal plate and DuPont line 3 Supply voltage 1.9-3.6V DC 4 Communication voltage 0.7VDD-5.2VDC, VDD is the supply voltage of module 5 Measured distance 2100m@1K 6 Maximum power 16dbm 7 Air Rate 5 adjustable rating 8 Dormancy Current About 1.7uA(M1 =1, M0 = 1) 9 Power Level 8 adjustable rating 10 Transmitting current 45mA@40mW output 11 Receiving current 12.5mA@Mode 0 and 1. The lowest is about 20uA@Mode 2 + 2s wake up 12 Antenna SMA external antenna 13 Communication Interface UART serial port, 8N1/8E1/8O1, from 1200 to 115200 a total of 8 kinds baud rate 14 Transmitting length Figure 1 Single data packet is 256 bytes 15 Receiving length Single data packet is 256 bytes 16 RSSI Support Built-in intelligent processing 17 Reception sensitivity -126dbm@1Kbps 18 Work temperature -30 - +85°C 19 Work humidity Relative humidity :10% - 90% 20 Storage temperature -40 - +125°C 21 Working frequency 425MHz – 450.5MHZ, 100KHz stepper 1. Module Features l Transmission distance of 2100 meters l Multiple baud l -126dBm Receiver sensitivity l Ultra-low -power receive(The lowest is 20uA) l Four operation modes l Sleep current is only 1.7uA l Air wake-up function l Double ring buffer 256Bytes l Built-in watchdog , never crash l Software FEC correction , data compression l Support voltage reading function l Frequency 425 - 450.5M, 256 channels l Efficient encryption algorithms , error correction function 1. Application l Wireless meter reading l Wireless Sensor l Smart Home l Intelligent Robot l Consumer Electronics l Street lighting control l High-voltage monitoring l Environmental Engineering l Automated data collection l Remote control and monitoring l Other wireless transmission applications 1. Module pins and dimensions Pin Num Pin Name Pin Direction Application 1 M0 Input( Very weak pullup) Match with M1, select 4 operating modes of the module. Do not leave 2 M1 Input( Very weak pullup) Match with M0, select 4 operating modes of the module. Do not leave 3 RXD Input TTL serial input and it connected to an external TXD out pin 4 TXD Output TTL serial output and it connected to an external RXD out pin 5 AUX Output Used to indicate the status of the module 6 VDD Power provide, must be between 2.0 to 3.6 DC(Unit: V) 7 GND Ground Package: 2PCS RF module Payment Police We can only accept Paypal by now and thanks for your understanding We apologize that we cannot accept other payment methods, such as cheque or postal orders Shipping & Handling We Ship to Worldwide, but some countries will take long delivery time. Before buying, Please make sure your address is correct. Or not, please correct it before payment Ship to worldwide by china air post service or Singapore post air mail within 12-24 hours after payment completed received, Pls.contact me for the the tracking number if you need it. We advise shipping by DHL or EMS, and we have given a discount for you, you can receive it in 7-15 business days. It takes about 15-45days usually if shipping by Singapore post air mail. Note: Because the adjustment of ebay policy, please make sure your ebay address and your paypal address consistent before you buy, thank you for your helping and understanding. Return & Refund Policy We absolutely stand behind our products. We also offer a 14 day money back guarantee should you be unhappy for any reason whatsoever. We will refund the entire cost of the item upon receipt of the returned item, not including the shipping and insurance charges. Our aim is 100% customer satisfaction! The feedback is very important for us, pls leave me a positive feedback if you are satisfied with our service and our items, or pls contact with me if there are some problem with our items. We will solve it asap. Negative feedback doesn't resolve problems, good communication does. Please contact me if there is anything and I will resolve it for you. Once your item arrives in satisfactory condition, please leave feedback for us. And we will do the same for you. Thank you!
