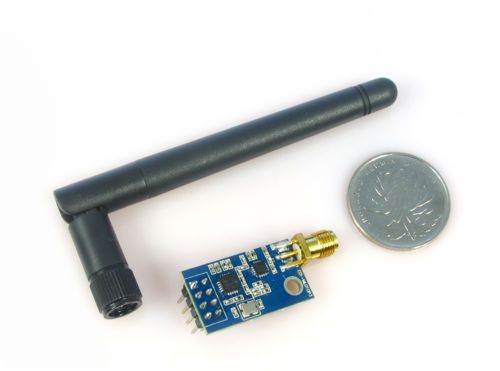

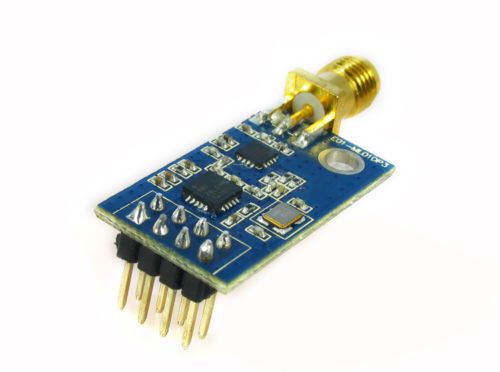

2pcs Of 20dbm 2.4g Rf Module Nrf24l01+ Rf-1001dp3 Ext Sma Ant 1km Long Distance

US $19.99

DONGGUAN, GUANGDONG, China
Jan 29th

Open on mobile:
QR code

Welcome to our store! Here provide the high quality ! Free shipping! Description: RF-1001DP3 is our latest 2.4G wireless communication module. Currently, it has a stable mass production. It is suitable for a variety of scenarios. nRF24L01P is the master chip of RF-1001DP3 module , which is imported from the Norwegian. And the module is equipped with 20dBm power amplifier chip which is import from US, these enables the module to achieve the maximum transmit power 100mW (20dBm) and enhance the sensitivity to 10dBm simultaneously. Our design make the transmission distance of the module over the nRF24L01P itself more than 10 times l Parametric Description Num Parametric Name Detailed Description 1 Main chip nRF24L01P, from Norway 2 Module size 15* 27mm 3 Interface 2*4*2.54mm, you can use the universal plate and DuPont line 4 Supply voltage 2.0-3.6V DC 5 Communication voltage 0.7VDD-5VDC, VDD is the supply voltage of module 6 Measured distance 1157m@250K 7 Maximum power 20dbm 8 Air Rate 250K/1M/2M 9 Shutdown Current About 1uA. Test Conditions: CE=0, power-down mode, VDD=3.0V. 10 Power Level 4 adjustable rating 11 Transmitting current About 95mA 12 Receiving current About 20mA 13 Antenna External antenna , SMA interface external screw bore 14 Communication Interface SPI, the maximum rate is 10Mbps 15 Transmitting length Single data packet is 1-32 bytes 16 Receiving length Single data packet is 1-32 bytes 17 RSSI Support Does not support the true meaning of RSSI, supports packet loss statistics 18 Reception sensitivity -94dbm@250Kbps 19 Work temperature -30 - +85°C 20 Work humidity Relative humidity :< 90% 21 Storage temperature -40 - +120°C 22 Working frequency 2.4000 – 2.525GHZ Package includes: 2 x RF-1001DP3 If you want to know more details,pls contact us. And welcome to place large order! Payment Policy We can only accept Paypal by now and thanks for your understanding We apologize that we cannot accept other payment methods, such as cheque or postal orders Shipping & Handling We Ship to Worldwide, but some countries will take long delivery time. Before buying, Please make sure your address is correct. Or not, please correct it before payment Ship to worldwide by china air post service or Singapore post air mail within 12-24 hours after payment completed received, Pls.contact me for the the tracking number if you need it. We advise shipping by DHL or EMS, and we have given a discount for you, you can receive it in 7-15 business days. It takes about 15-45days usually if shipping by Singapore post air mail. Note: Because the adjustment of ebay policy, please make sure your ebay address and your paypal address consistent before you buy, thank you for your helping and understanding. Return & Refund Policy We absolutely stand behind our products. We also offer a 14 day money back guarantee should you be unhappy for any reason whatsoever. We will refund the entire cost of the item upon receipt of the returned item, not including the shipping and insurance charges. Our aim is 100% customer satisfaction! The feedback is very important for us, pls leave me a positive feedback if you are satisfied with our service and our items, or pls contact with me if there are some problem with our items. We will solve it asap. Negative feedback doesn't resolve problems, good communication does. Please contact me if there is anything and I will resolve it for you. Once your item arrives in satisfactory condition, please leave feedback for us. And we will do the same for you.
